SPECIFICATIONS
Application: Desktop

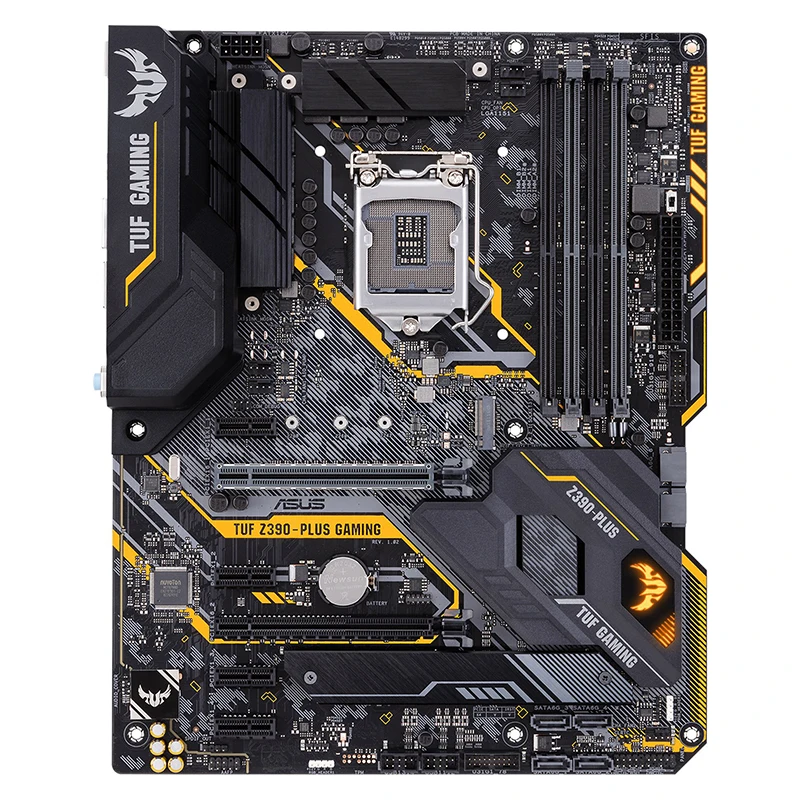

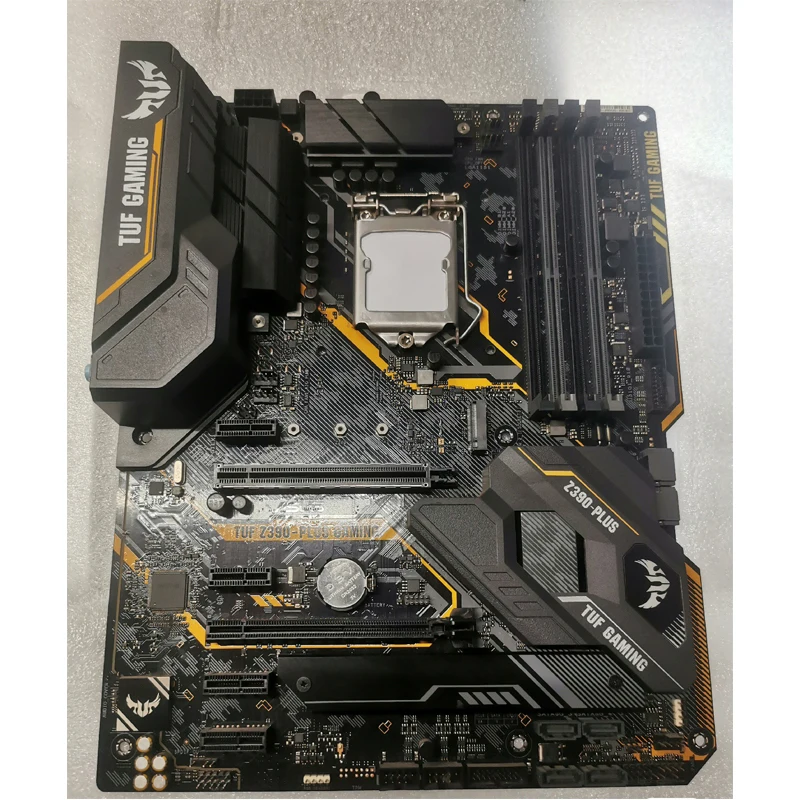

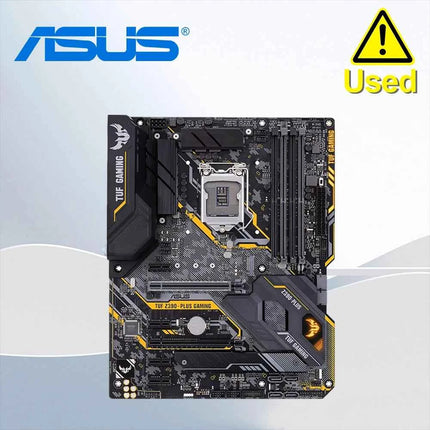

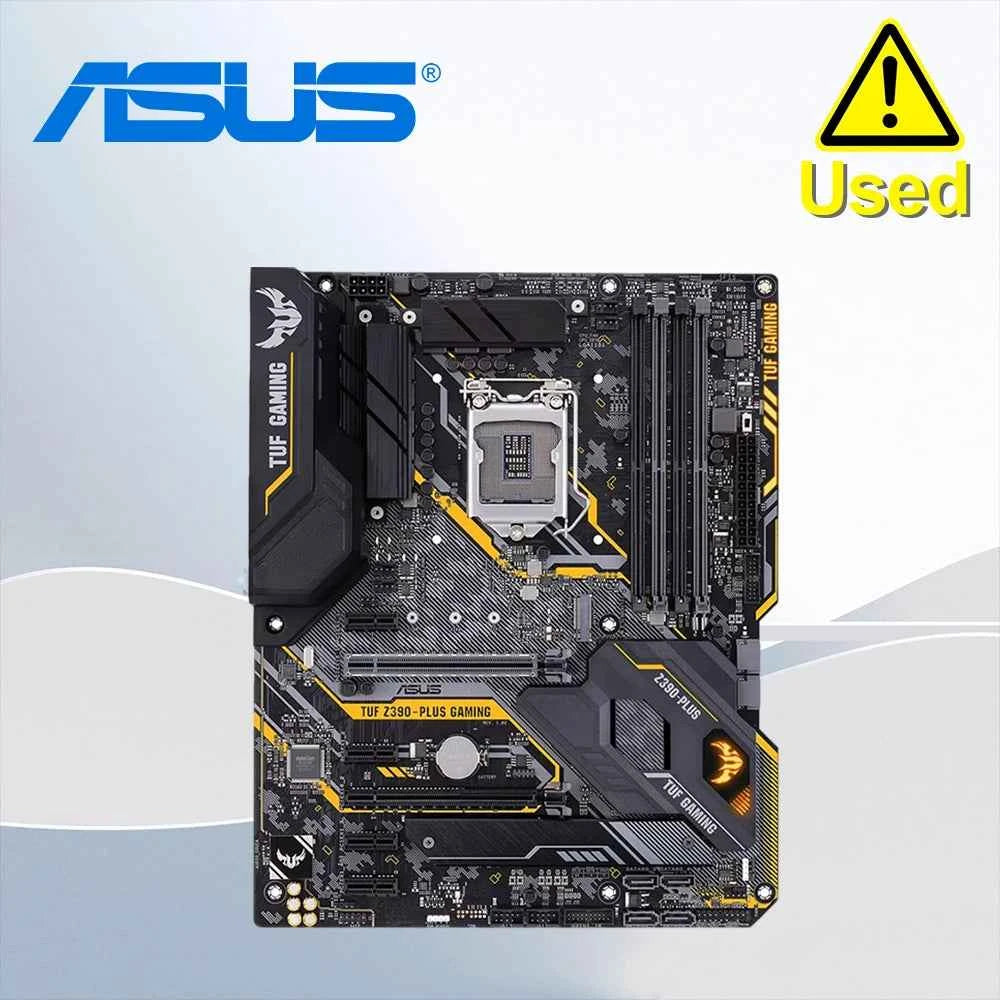

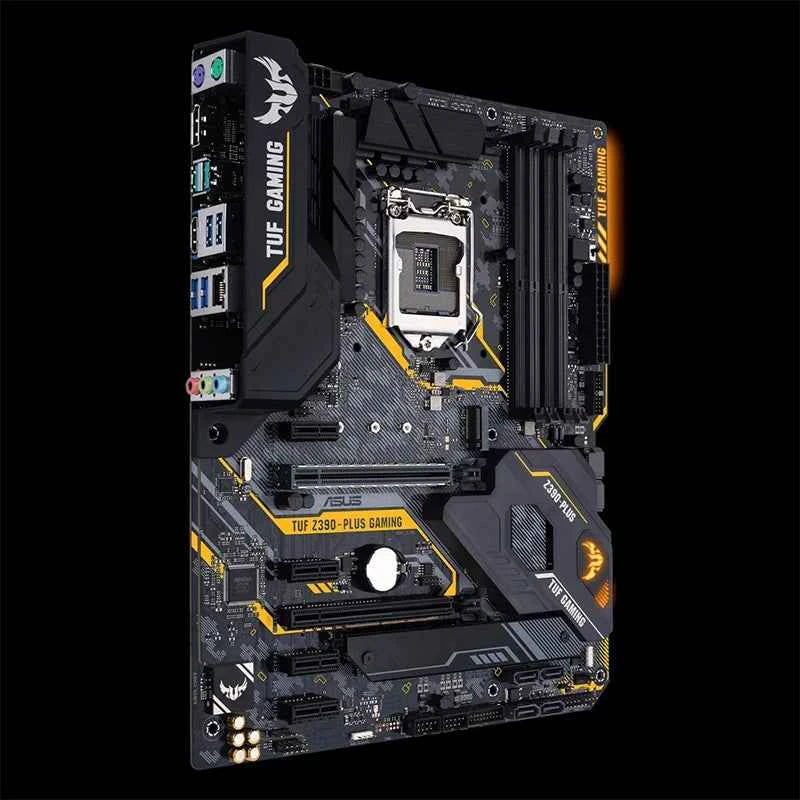

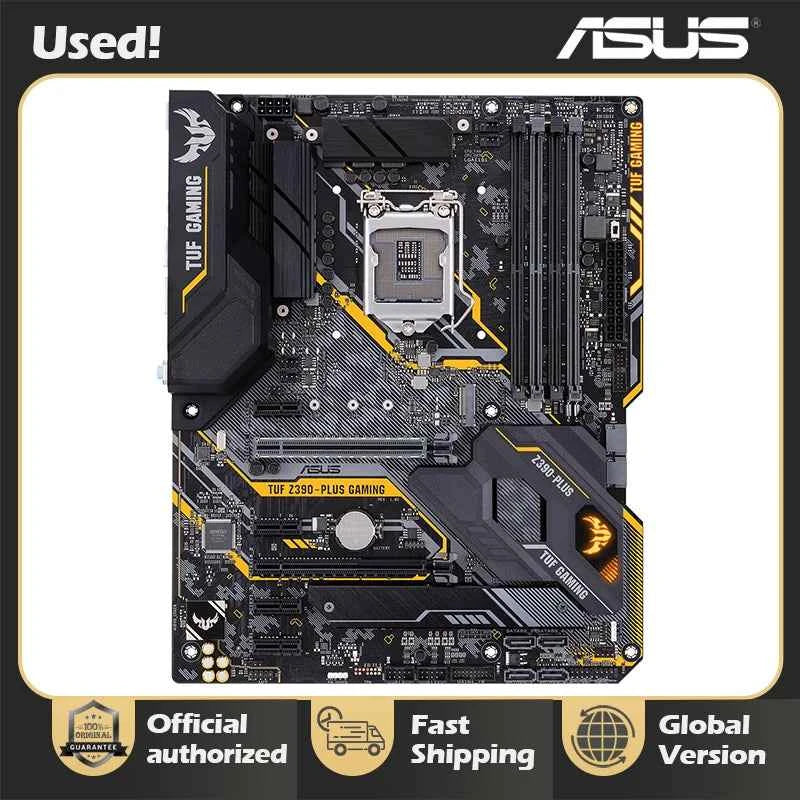

Asus Model: Used Asus Intel Z390 with Lga1151
Audio Channels: 7.1
Back I/O Ports: 1x RJ45,Disply Port,HDMI 2.0
Battery Included: No
Brand Name: Asus
Chipset: Intel Z390
Chipset Manufacturer: Intel
Form Factor: ATX
High-concerned chemical: None
Maximum Ram Capacity: 64 GB
Memory channel: Double
Number Of Memory Slots: 4
Number of M.2: 2
Number of PCI: 3
Number of PCIe x 1: 4
Number of PCIe x 16: 2
Number of SATA Ports: 6
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Ports: M.2
Processor compatibility: 8th Intel Core i5,9th Intel Core i3,9th Intel Core i5,8th Intel Core i7,9th Intel Core i9
RAID Supported: Yes
Socket Type: LGA 1151
Special Features: RGB,Cooling Armor,Support for Overclocking,HiFi
Storage Interface Type: SATA 3,M.2 (SATA)
Support Memory Type: DDR4
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2242,2280,2260
Usage Scenario: Gaming,Audio & Video,Office,Video Production,3-D Modeling,Video Rendering,others
With CPU: No
General
Chipset |
Intel Z390 |
CPU Socket |
LGA 1151 |

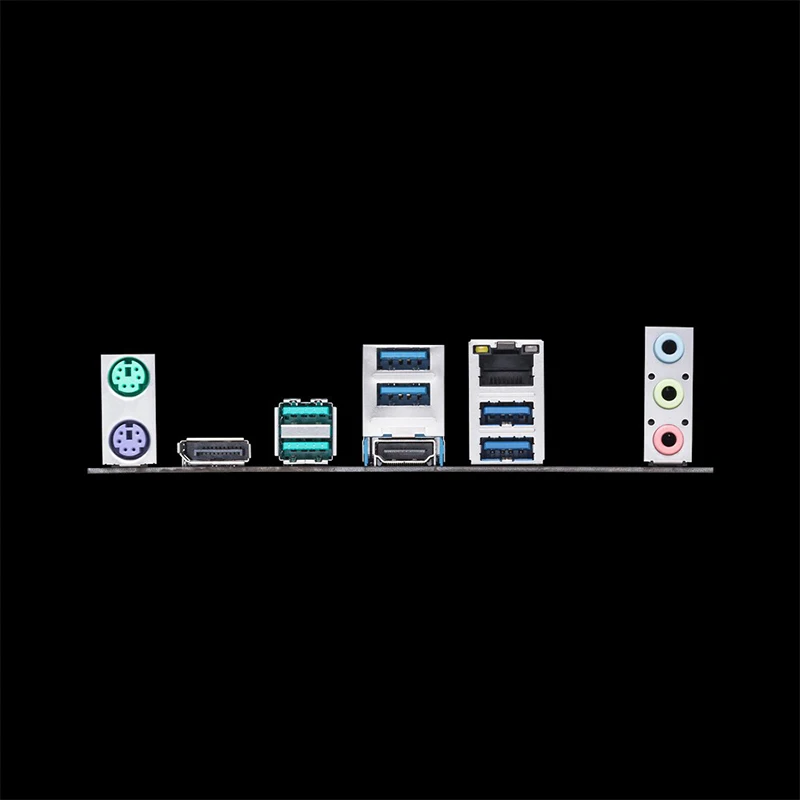

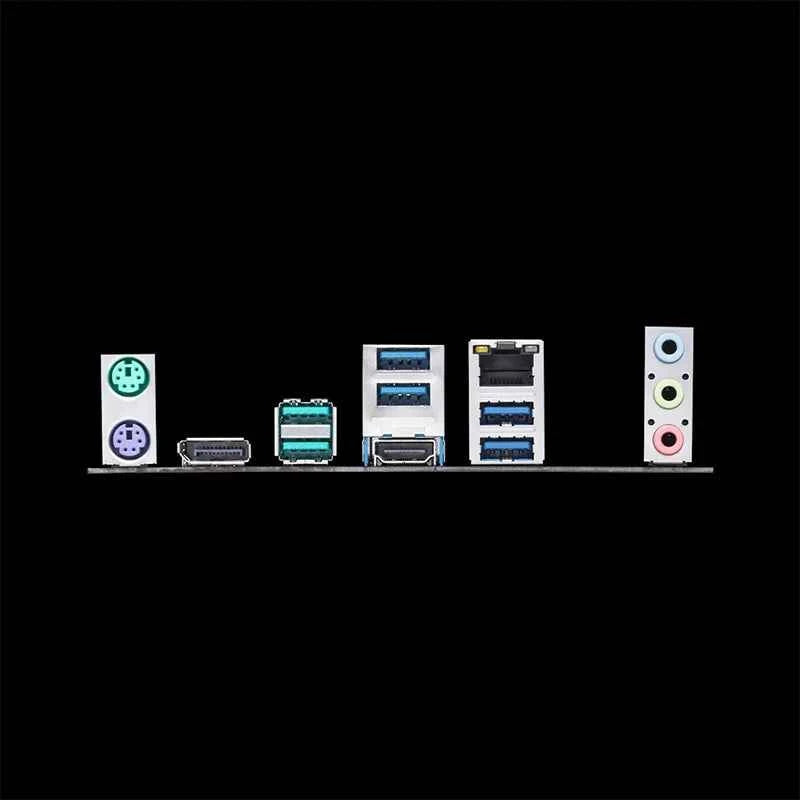

Back Panel I/O
USB |
2 x USB-A (USB 3.1/3.2 Gen 2)
4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
|
Thunderbolt |
No |
Display |
1 x DisplayPort 1.2
1 x HDMI
|
Audio |
3 x 3.5 mm
|
Ethernet / Controller |
1 x Intel I219V Gigabit
|
PS/2 |
2 x PS/2
|
Wi-Fi Antenna |
2 x Connector
|
Memory
Memory Slots |
4 x 288-Pin
|
Memory Support |
DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266 MHz |
Maximum Capacity |
64 GB |
Channel Architecture |
Dual Channel |
ECC Support |
Non-ECC Unbuffered |
Storage Expansion
SATA |
6 x SATA III
|
M.2 |
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)
|
U.2 |
No |
Optane Memory Support |
Yes |
RAID Support |
RAID 0, 1, 5, 10 |
Internal I/O
Expansion Slots |
1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 mode)
4 x PCIe 3.0 x1
|
USB |
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
|
Multi-GPU Support |
AMD CrossFireX |
Air Cooling |
1 x 4-Pin CPU
1 x 4-Pin Assistant
2 x 4-Pin System
1 x Thermal Sensor
|
Liquid Cooling |
1 x 4-Pin Pump
|
Power Connectors |
1 x 24-Pin Mainboard
1 x 8-Pin CPU
|
LED Header |
2 x RGB
|
Audio |
1 x S/PDIF
|
Diagnostics |
Clear CMOS |
Audio
Audio Codec |
Realtek S1200A (8-Channel) |
Software
Supported Operating Systems |
Windows 10 (64-Bit) |
Physical
Form Factor |
ATX |
Dimensions |
12 x 9.6" / 30.48 x 24.38 cm |
Packaging Info
Package Weight |
2.935 lb |
Box Dimensions (LxWxH) |
13.05 x 10.6 x 2.3" |
