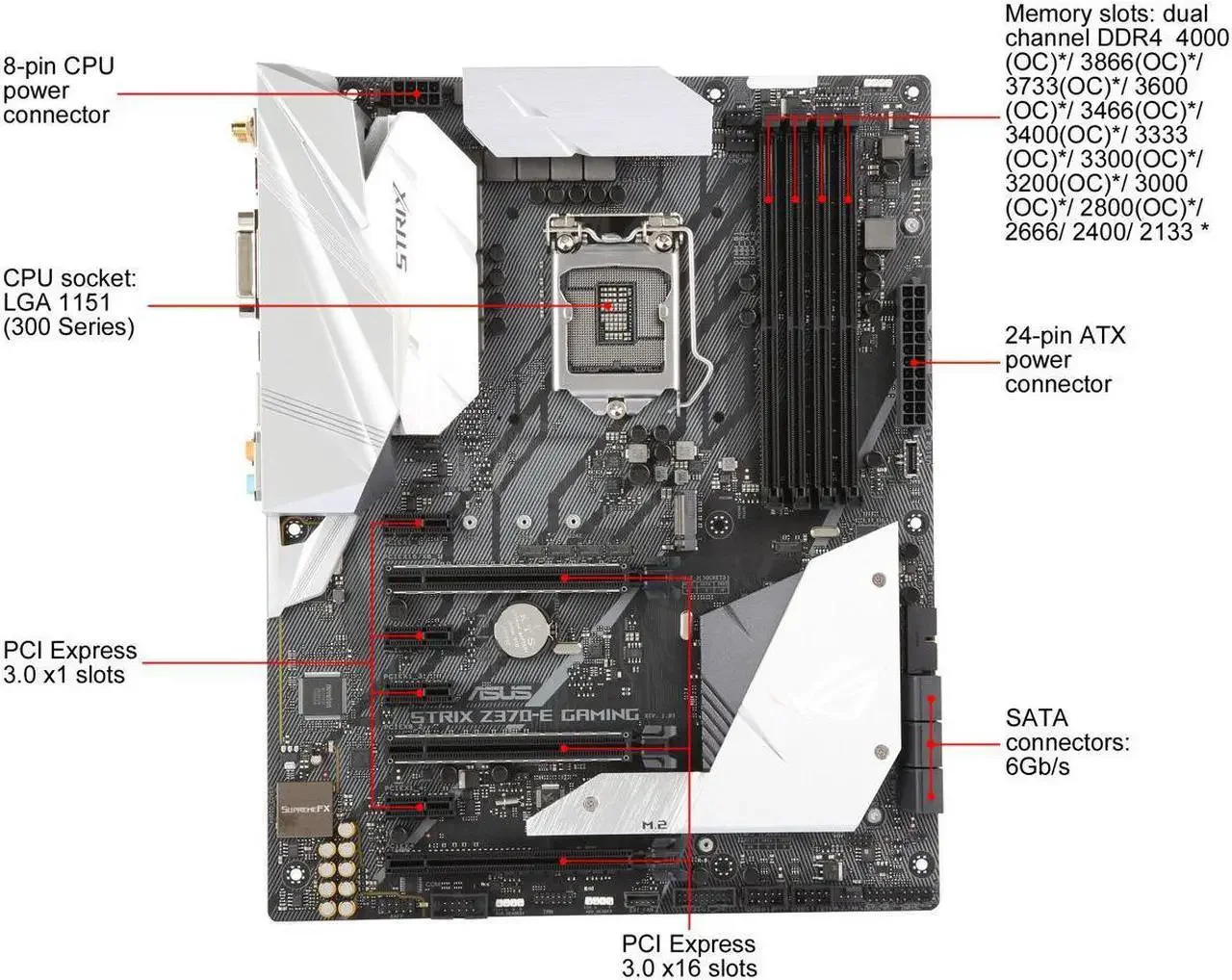

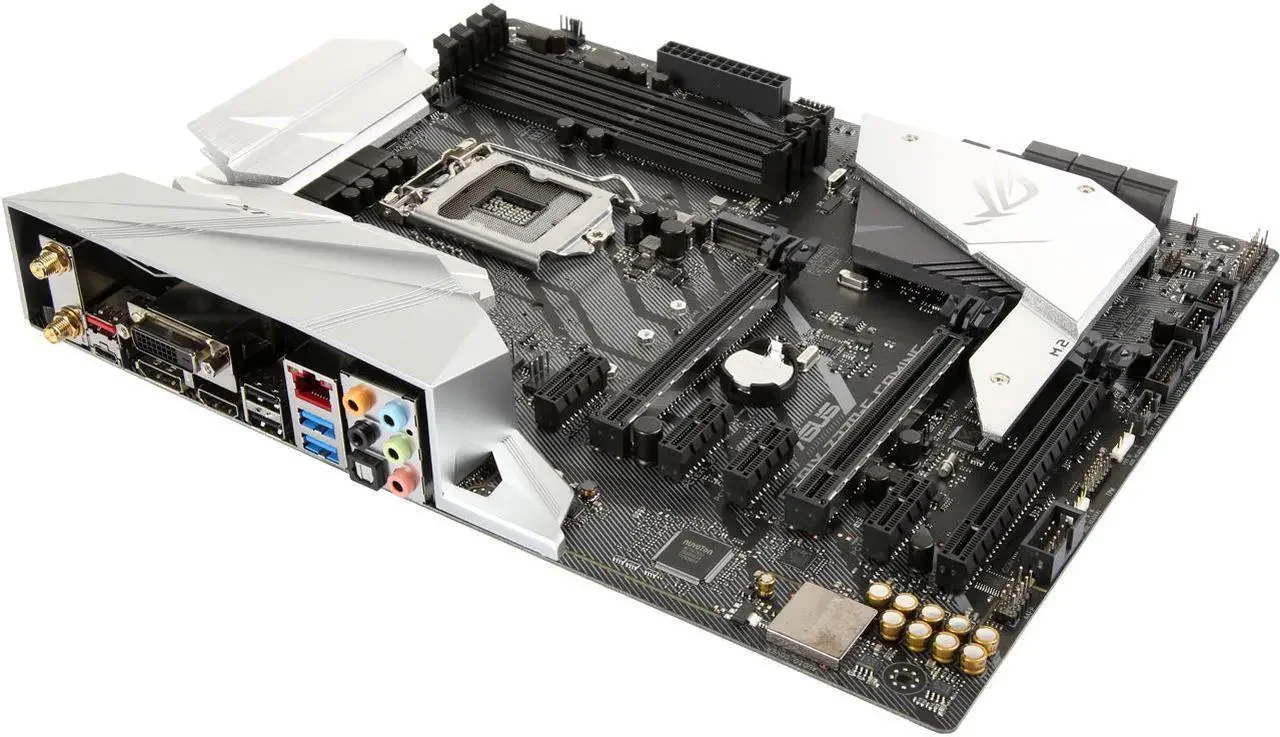

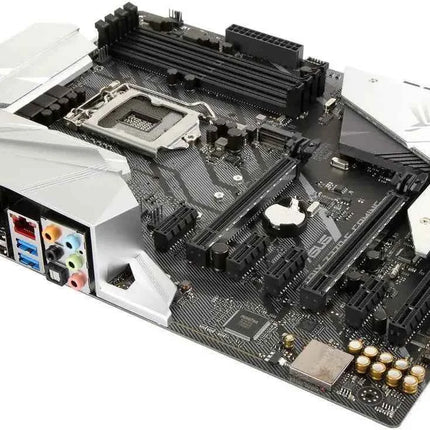

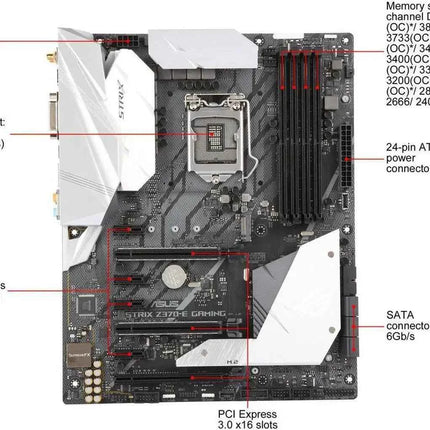

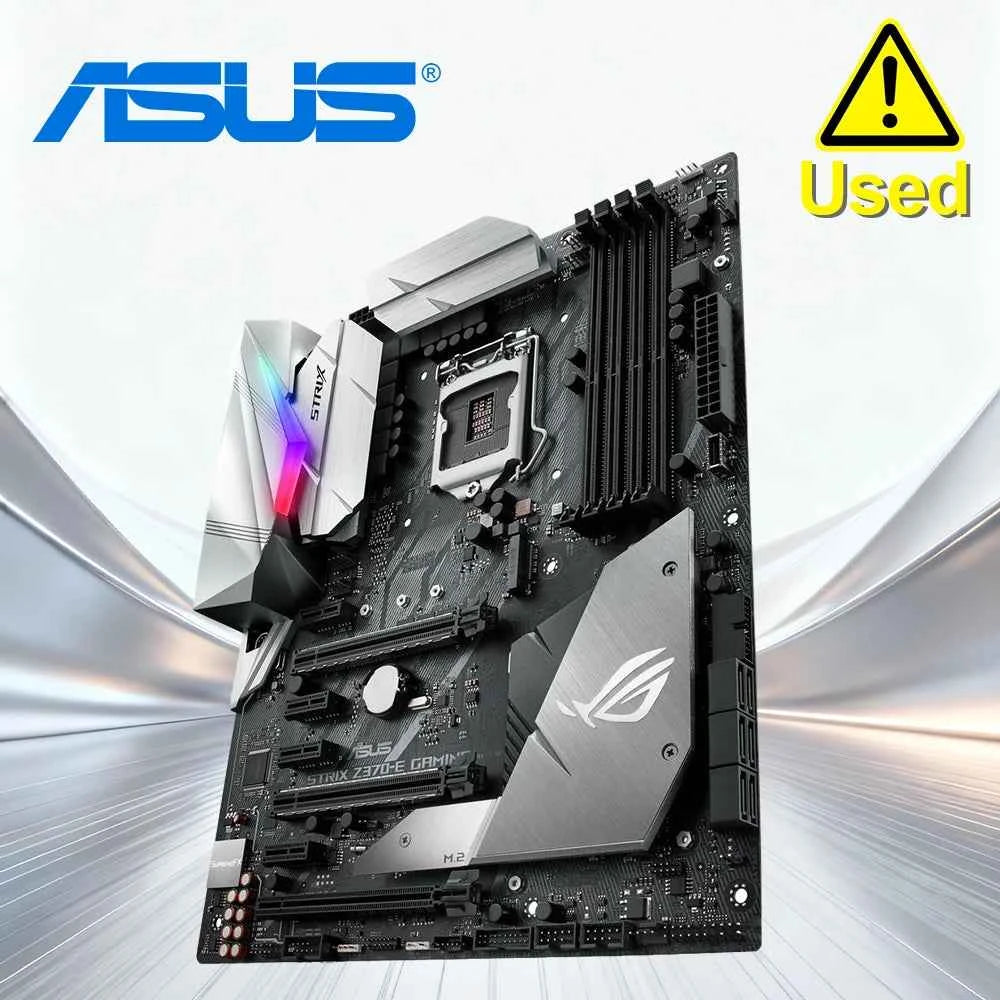

ASUS ROG STRIX Z370-E GAMING LGA1151 DDR4 DP HDMI DVI M.2 Z370 ATX Motherboard with onboard 802.11ac and USB 3.1 for 8th GeN
ASUS ROG STRIX Z370-E GAMING LGA1151 DDR4 DP HDMI DVI M.2 Z370 ATX Motherboard with onboard 802.11ac and USB 3.1 for 8th GeN
SPECIFICATIONSApplication: DesktopAudio Channels: 7.1Back I/O Ports: 1x RJ45,HDMI 1.3,Disply Port,DVI-DBattery Included: NoBrand Name: AsusChipset: Intel Z370Chipset Manufacturer: IntelForm Factor: ATXHigh-concerned... Per saperne di più
SKU: 200000828:9198229178
★★★★★0 recensioni
🔥 1.000+ acquistati nel mese scorso
€114,77 incl. I.V.A.
-
✓ Pagamento 100% Sicuro - Garantito
15% off 15 - Buy 14 more to qualify
Do you need a large stock? Contact us.
20% off 20 - Buy 19 more to qualify
Do you need a large stock? Contact us.
- Sustainable and eco-friendly
- Available in large numbers
Call us: +393312798971
Available on working days between 9:00 am to 6:00 pm
orizonshop.it@gmail.com
Available on working days between 9:00 am to 6:00 pm
🚚 Consegna e Supporto
Spedizione Gratuita
Reso 14 giorni
Assistenza
Pagamento Sicuro
Descrizione
SPECIFICATIONS
Application: Desktop
Audio Channels: 7.1
Back I/O Ports: 1x RJ45,HDMI 1.3,Disply Port,DVI-D
Battery Included: No
Brand Name: Asus
Chipset: Intel Z370
Chipset Manufacturer: Intel
Form Factor: ATX
High-concerned chemical: None
Maximum Ram Capacity: 64 GB
Memory channel: Double
Number Of Memory Slots: 4
Number of M.2: 2
Number of PCI: 4
Number of PCIe x 16: 3
Number of SATA Ports: 6
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Processor compatibility: 8th Intel Core i5,9th Intel Core i3
Quality Certification: ce
RAID Supported: Yes
Socket Type: LGA 1151
Special Features: None
Storage Interface Type: SATA,M.2 (NVMe)
Support Memory Type: DDR4
Support USB Type: USB 2.0,USB 3.0,USB 3.1 Gen1
Supports M.2 SSD: 2242,2280,2260
Usage Scenario: Enthusiast & Overclocking,Audio & Video,Household,Office
With CPU: No
Model
ROG STRIX Z370-E GAMING
CPU
Intel® Socket 11519th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel® Z370
Memory
4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously
Multi-GPU Support
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1
Storage
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)*2
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*3
Intel® Z370 Chipset :
Intel® Optane™ Memory Ready *4
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
LAN
Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology
Wireless Data Network
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth
Bluetooth V4.2
Audio
- Sonic Studio III
- Supports up to 32-Bit/192kHz playback *5
ROG SupremeFX8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- SupremeFX Shielding Technology
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Sonic Radar III
USB Ports
6 x USB 3.0 port(s) (2 at back panel, blue, 4 at mid-board)
ASMedia® USB 3.1 Gen 2 controller : *6
2 x USB 3.1 port(s) (Type-A + USB Type-CTM, Support 3A power output)
Intel® Z370 Chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
ASMedia® USB 3.1 Gen 2 controller :
6 x USB 2.0 port(s)
ROG Exclusive Features
ROG RAMCache II
ROG CloneDrive
GameFirst IV
ROG CPU-Z
Overwolf
ROG Aura
Special Features
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
Turbo APP
5-Way Optimization by Dual Intelligent Processors 5
TPU
- Auto Tuning, TurboV, GPU Boost
Gamer´s Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable components
- Digi+ VRM
- SafeSlot
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ESD Guards
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :
- 3D printing friendly
- AURA-RGB Lighting
Digi+VRM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

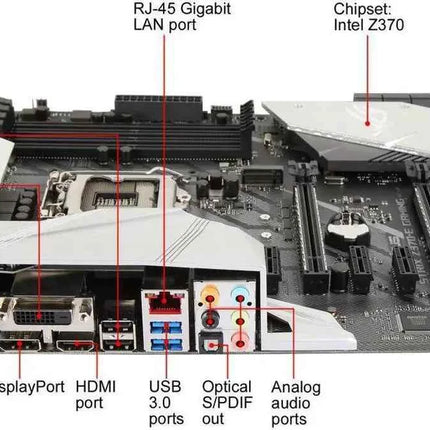

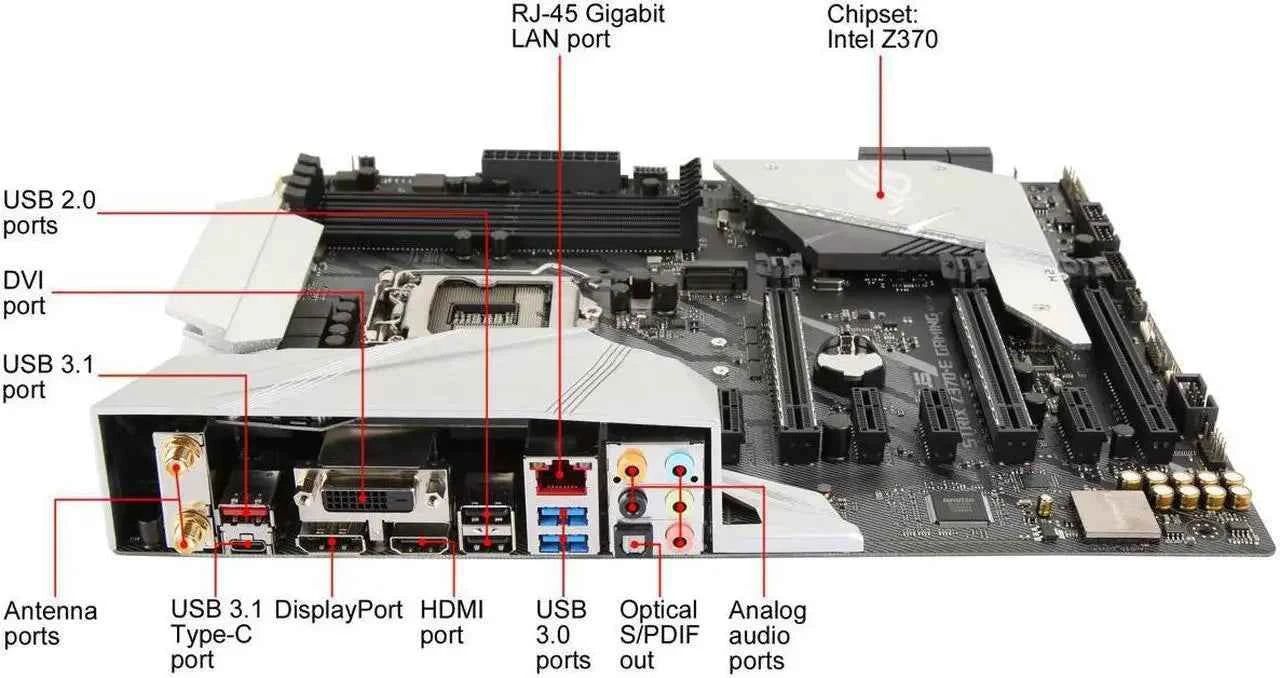

Back I/O Ports
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)
2 x USB 3.1 Gen 2 Type-A + USB Type-CTM,
2 x USB 3.1 Gen 1 (blue)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports
1 x COM port header
1 x AAFP connector
3 x 3D Mount screw port(s)
1 x Aura Addressable Strip Header(s)
1 x CPU OV
1 x USB 3.1 Gen 2 front panel connector
2 x Aura RGB Strip Header(s)
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
6 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x AIO PUMP Header
