SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,4x USB 3.2/3.1 Gen 2,HDMI 1.4

Battery Included: No

Brand Name: Asus

Chipset: Z490

Chipset Manufacturer: Intel

High-concerned chemical: None

Maximum Ram Capacity: 128 GB

Number of PCI: 3

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: No

Processor compatibility: 10th Intel Core i3,10th Intel Core i7,10th Intel Core i5,10th Intel Core i9

RAID Supported: No

Socket Type: LGA1200

Special Features: RGB,Intel Optane Ready,Cooling Armor

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Usage Scenario: Gaming,Audio & Video,Office

With CPU: No

Central Processing unit

Intel ® Socket 1200- Supports 10th generation Intel ® Core ™, Pentium ® Gold and Celeron ® processors

Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0

Please visit w3.asus.com.cn to obtain the list of processor support.

Support for Intel ® Turbo Boost Max Technology 3.0 depends on the CPU type.

Supports Intel ® 14nm processors

Chipset

Intel ® Z490

Memory

OptiMem II

4 x DIMM, supporting up to 128GB DDR4 4600 (overclocking) / 4500 (overclocking) / 4400 (overclocking) / 4266 (overclocking) / 4133 (overclocking) / 4000 (overclocking) / 3866 (overclocking) / 3733 (overclocking) / 3600 (overclocking) / 3466 (overclocking) / 3333 (overclocking) / 3200 (overclocking) / 3000 (overclocking) / 293 3(Overclocked)/2800(overclocked)/2666/2400/2133 MHz Non-ECC, Un-buffered memory

* the tenth generation of Intel ® core ™ i9 / i7 processor, native support for 2933/2800/2666/2400/2133, please refer to the w3.asus.com.cn website memory QVL (qualified supplier list).

Support Intel® Extreme Memory Profile (XMP) technology

Support dual-channel memory architecture

Graphic display

1 x DisplayPort 1.4 *

** DisplayPort 1.4 supports maximum resolution 4096 x 2304@60Hz. See www.intel.com for updates.

1 x HDMI 1.4b

The display core specifications may vary depending on the type of CPU.

Integrated graphics processor

Multiple graphic display technology

Supports AMD 3-way CrossFireX™ technology

Supports NVIDIA® 2-channel SLI™ technology

Expansion slot

Intel ® Z490 chipset

The 10th generation Intel ® processors

3 x PCIe 3.0 x1

1 x PCIe 3.0 x16 (Maximum x4 mode)

2 x PCIe 3.0 x16 (x16 or dual-slot x8)

Storage function (subject to shipment)

1 x M.2_1 socket 3, supporting M key, 2242/2260/2280/22110 type storage devices (SATA & PCIE 3.0 x 4 mode)

It supports a total of 2 x M.2 slots and 6 x SATA 6Gb/s interfaces

Intel ® Z490 chipset

1 x M.2_2 socket 3, supporting M key, 2242/2260/2280/22110 type storage devices (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s interface

Support Raid 0, 1, 5, 10

Intel ® Optane ™ Memory technology

Network function

Intel® I225-V 2.5Gb network card

Asus LAN Guard Network security protection

Wireless connection

M.2 slot only (Key E) (supports CNVI interface)*

Sound effect

ROG SupremeFX8-channel high-fidelity audio chip S1220A

- Supports: Audio interface detection (JACK-detection), front panel audio Jack swapping (JACK-retasking), Multi-Streaming independent output

- Supports 32-Bit/192kHz playback *

The backplane is equipped with an S/PDIF optical fiber digital output interface

Audio divider line design

Audio protective cover

High-quality Japanese audio capacitors

-SupremeFX Shielding™ technology

Dual operational amplifiers

Output impedance sensing of the front and rear headphones

High-quality 120dB stereo playback output and 113dBSNR recording input

Audio function:

Gold-plated jack

Due to the bandwidth limitation of HDA, 32-Bit/192kHz does not support 8-channel audio effects.

USB interface

4 x USB 3.2 Gen 2 interface (3 x Type-A +1 x Type-C)

1 x USB 3.2 Gen 1 interface (1 x USB Type-C®)

2 x USB 3.2 Gen 1 interface (2 x Type-A)

Front USB ports (total 7)

Back USB ports (total 8)

Other functions

Asus functions:

- ProCool II

- ASUS USB BIOS Flashback™

Pre-installed I/O guard plate

AURA :

Asus EZ DIY

Asus Q-Design

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

- Aura RGB light strip pins

- The second generation of programmable pins

DIY Personalized design

- SafeSlot high-strength safety slot

Software function

Rog-specific software

- RAMCache III

- ROG CPU-Z

GameFirst VI games have low latency

- Sonic Studio III Intelligent Sound effect Management Software + Sonic Studio Virtual Audio Mixer

- Sonic Radar III Sound Effect Radar

- DTS® Sound Unbound

- Overwolf

Anti-virus software

Asus exclusive software

Armoury Crate, the intelligent control center of Armoury Games

- Aura Creator

- AURA SYNC Divine Light Synchronization

AI Suite 3(Intelligent Butler 3rd Generation)

- 5 levels of optimization equipped with AI intelligent overclocking

TPU intelligent acceleration processor

EPU intelligent energy-saving processing

DIGI+ Digital Power Supply Design

Fan Xpert 4

Turbo APP

- EZ update

WinRAR

UEFI BIOS

AI Smart Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS

EZ mode

FlexKey is a free key

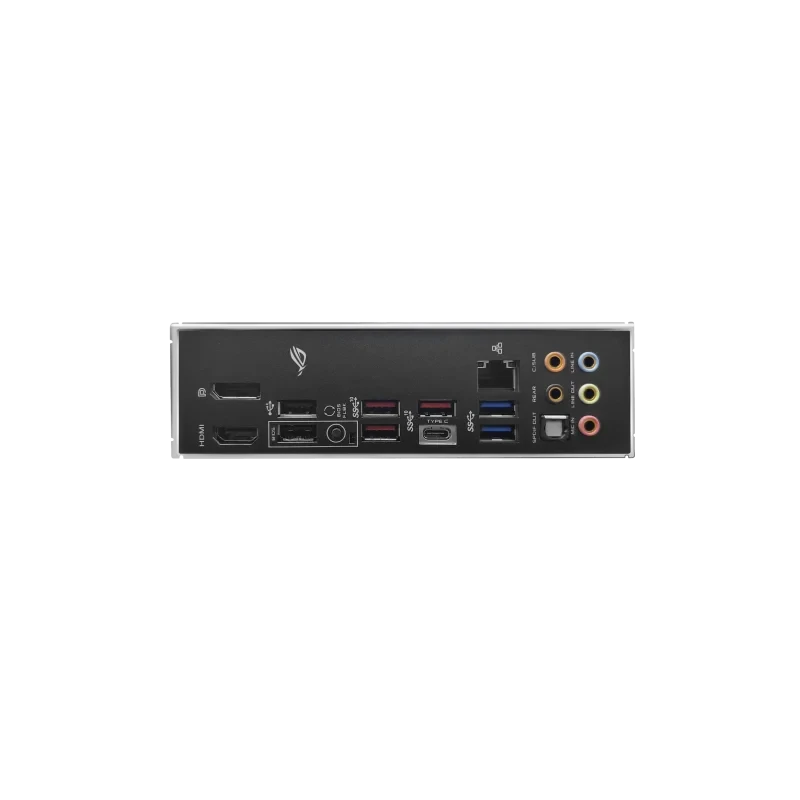

Backplane I/O interface

4 x USB 3.2 Gen 2 interface (3 x Type-A+1 x USB Type-C®)

1 x DisplayPort interface

1 x HDMI interface

1 x Intel® I225-V 2.5Gb network card

5x gold-plated audio jack

2 x USB 2.0 interface

1 x optical fiber S/PDIF digital audio output interface

1 x USB BIOS Flashback™ button

Internal I/O interface

1 x AAFP pre-audio connector

1 x Serial port connection socket (COM)

6 x SATA 6Gb/s device connection socket

1 x 24-pin EATX motherboard power slot

1 x Clear the CMOS jumper

1 x CPU fan connector

1 x USB 3.2 Gen2 interface supports an additional 1 USB interface (20-pin, Type-C)

The 1 x USB 3.2 Gen 1(up to 5Gbps) interface supports an additional 2 USB 3.2 Gen 1 interfaces

1 x M.2 Socket 1 supports M key, 2242/2260/2280/22110 type storage devices (SATA mode & PCIE mode)

1 x M.2 is equipped with an E key suitable for Wi-Fi modules

1 x System panel socket (Built-in anti-intrusion connector for the chassis)

1 x VRM_HS_ Fan pin connection

1 x M.2 slot 2 supports M key, 2242/2260/2280/22110 type storage devices (PCIE 3.0 x 4 mode)

2 x programmable RGB pins

1 x CPU_OV patch cord

1 x Thunderbolt pin headers

2 x Aura RGB light strip pins

1 x CPU optional fan interface

2 x chassis fan interface

The 2 x USB 2.0 interface can be expanded with 4 groups of external USB 2.0 interfaces

1 x 8-pin ATX 12V motherboard power slot

1 x 4-pin ATX 12V motherboard power slot

1 x temperature sensor interface

1 x AIO_ Water pump interface

1 x W_PUMP+ interface

1 x M.2 fan pin connection

Accessories

1 x ROG STRIX sticker

4 x SATA 6.0Gb/s data cable

1 x random CD

1 x M.2 SSD screw pack

1 M.2 Key E screw package

1 x M.2 rubber package

1 ROG key chain

User Manual

1 X-ray harness

1 x Programmable LED expansion wire

1 x RGB light strip extension line (80 cm)

1 x Temperature detection data cable

1 x ROG thank-you Card

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Management software

WOL by PME, PXE

Operating system

Windows® 10 64-bit

Size specification

ATX plate type structure

12 inches x 9.6 inches (30.5 cm x 24.4 cm)

Remarks

When M.2_1 is running as a SATA device, SATA6G_2 will be unavailable.

M.2_2 shares bandwidth with SATA6G_56. When M.2_2 is occupied, SATA6G_56 will be unavailable.
