Descrizione

SPECIFICATIONS

Brand Name: TONGOU

Certification: CE

High-concerned chemical: None

Is Smart Device: Yes

Model Number: White TO-Q-SY1-163WT

Model Number 2: BlackTO-Q-SY1-163JWT

Origin: Mainland China

Type: Mini

Warranty: one year

is_customized: Yes

We can provide API service for our products.

The cost is USD 2/ 5 years/ pc.

Notice:

This decive is not compatible with Home Assistant, please use the device in SMART LIFE APP/ TUYA APP.

Wiring: Power must enter from the top and must be Live line + Neutral Line (L+N). Live line + Live line (L+L) cannot be used.

The white model has no power meter function

The Black model with power meter function

Both models have NO overcurrent protection, can not set current ,voltage in APP.

Feature:
Remote control at anytime from anywhere by TUYA / Smart Life app on mobile ,no distance limit.
Schedule /Timing, countdown, cycle timing，Astronomical timing.
Voice control by Amazon Alexa echo dot / Google assistant

Parameter:
Working voltage:AC90-240V,50/60Hz
Current type:63A
Wireless type:Wi-Fi 2.4GHz
Support system:Android\iOS

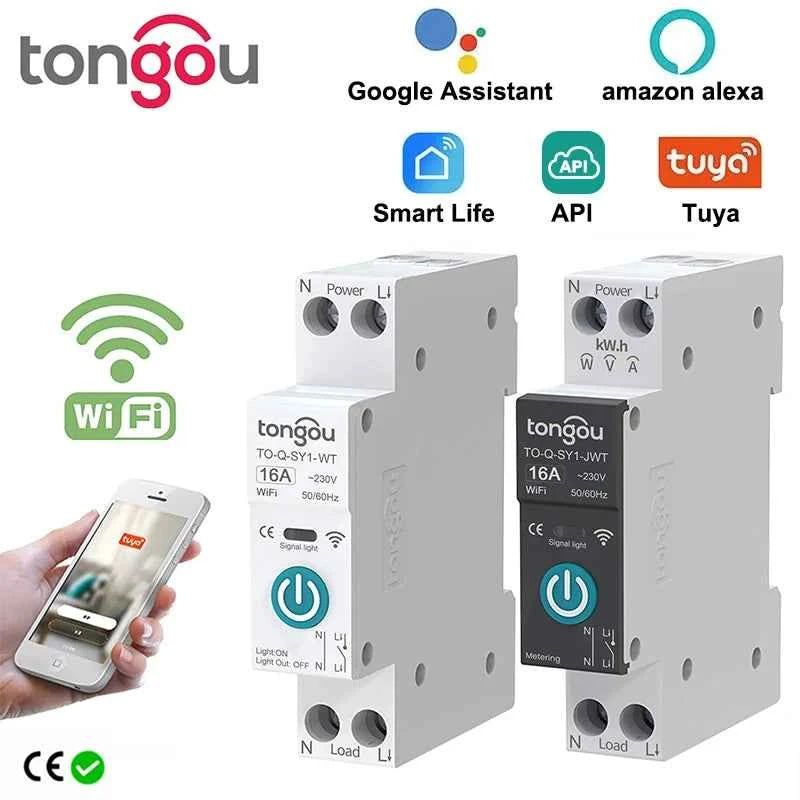

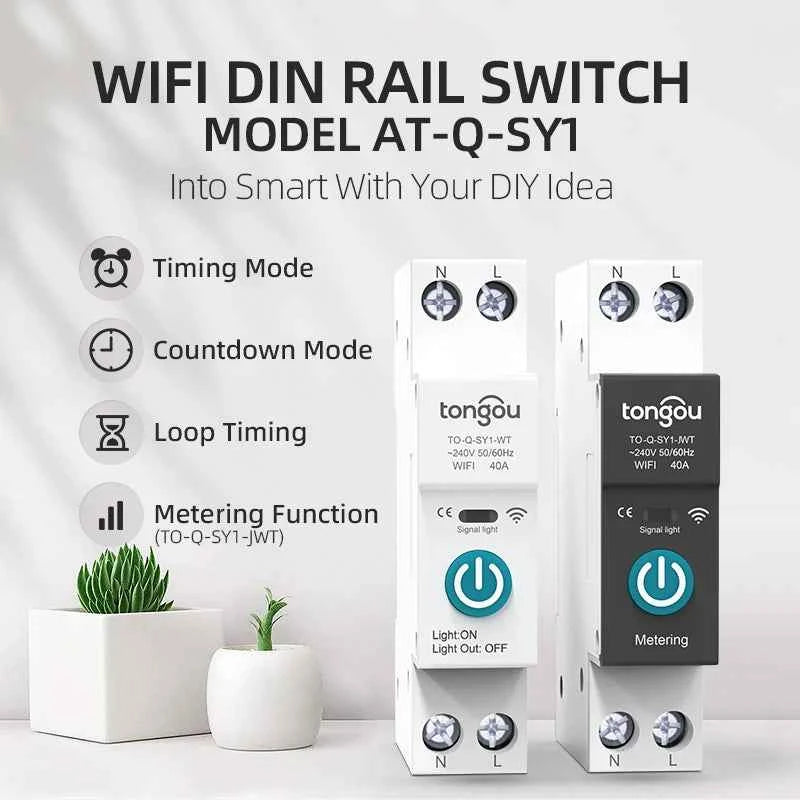

WIFI DIN RAIL SWITCH

MODEL TO-Q-SY1

Into Smart With Your DIY Idea

Remote control by mobile phone ,Tuya Smart dition

Timing Mode / Countdown Mode

Loop Timing /Metering Function（White No metering）（Black with metering）

Benefit Your Life

Make your fingers touch every corner!

Remote control/Voice control/Timing Mode/CountdownMode

Loop Timing/Real-time Monitoring of Electricity Consumption

(In TO-Q-SY1-JWT)

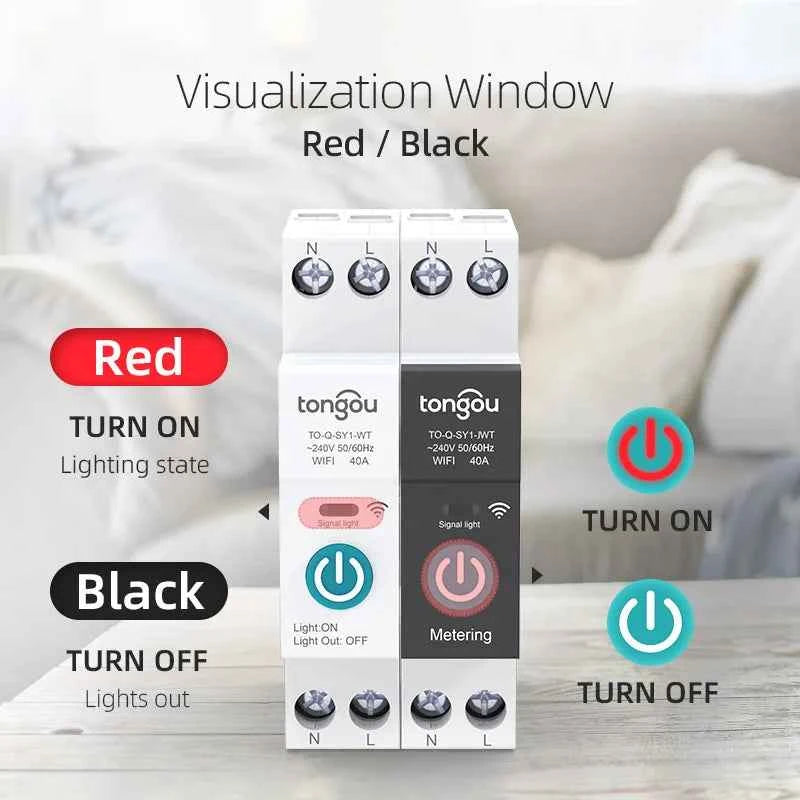

Visualization Window

Red Black

TURN ON TURN OFF

Lighting state Lights out

High Quality
From Good Material

High-precisionmanganese copper / Flame-retardant shell PA66

High-performance chip module / Long-life motor system

Smart Protection

A Variety of Functions

Setting the switch status of the equipment in different

scenarios, and remotely

monitor the real-time situation of the load electrical appliances.

24HAutomatic Monitoring /APP RemoteControl

Record Usage Data / Main Function

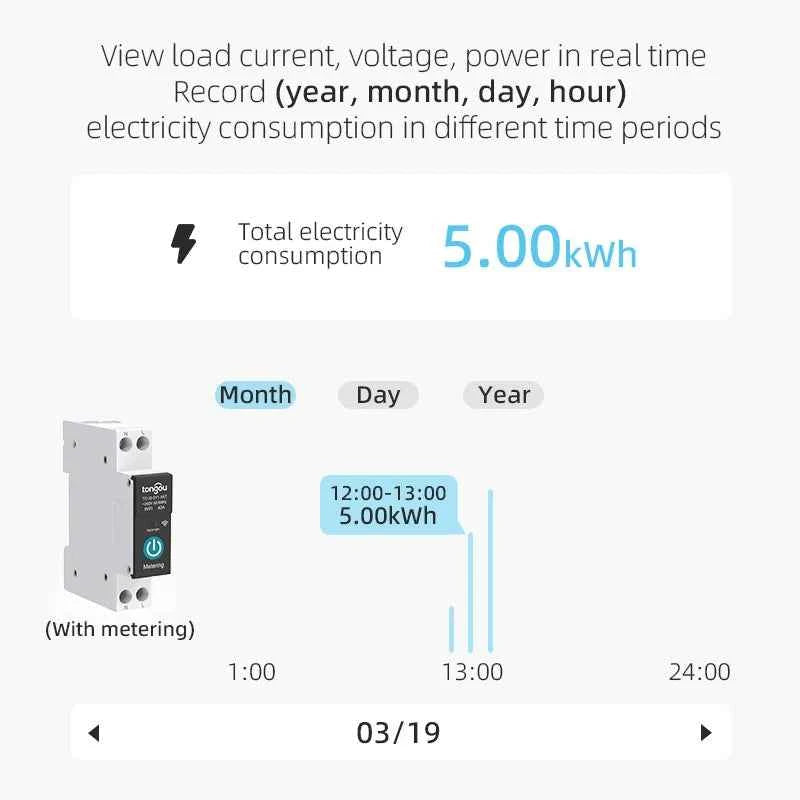

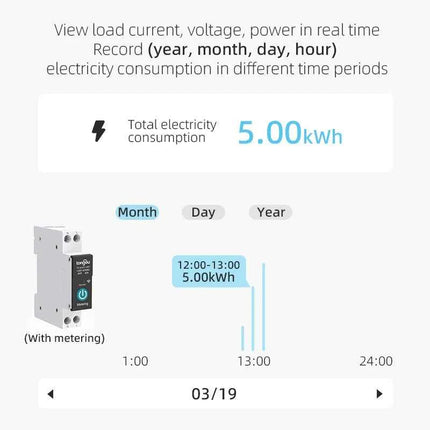

View load current, voltage and power in real time
record ( hour , day , month and year )

electricity consumption in different time periods

Total electricity ：consumption:5.00kWh

(With metering)Real-time monitoring electricity consumption.

More Smart Scenarios

Devices-Interlock Mode

Connect it, you can monitor the usage of all home

equipment, remote control, timing control and make life more intelligent.

Three Timing Modes
(Timing Mode / Countdown Mode / Loop Timing)

1. Timing Mode

Before going home after working...

18:30 Turn on the lights.

2. Countdown Mode

After sleeping...

Turn off the lights after 10 minutes.

3. Loop Timing

Before waking up / after going to work...

06:00 Turn on the lights. / 08:00 Lights off.

Voice Controls
Voice linkage

Compatible with Amazon Alexa, Google Home.

What do you want to control? Just say it.

Product Parameter
Benefit

Your Life

Details
Benefit

Your Life

Touch handle

Sleek design for more

comfortable operation

Flame retardant material

High temperature resistance

and flame retardant, effectively

improve the safety of use.

Single channel wiring

Tunnel-type wiring port for

more secure wiring.

Positioning clip

Press to open easily,

imple installation..

Network Pairing
