SPECIFICATIONS
AC Current: 600uA/6mA/60mA/600mA/6A/20A
AC Voltage: 600mV/6V/60V/600V
AC current frequency response: 45~400Hz
AC voltage frequency response: 45~400Hz
Analog Bar Graph: 31 sections
Auto backlight: Yes
Auto power off: Yes
Battery Included: No
Brand Name: UNI-T
Certification: CE
Choice: yes
DC Current: 600uA/6mA/60mA/600mA/6A/20A
DC Voltage: 600mV/6V/60V/600V
DIY Supplies: Electrical
Data hold: Yes
Dimensions: 180mm*87mm*59mm
Diode/Continuity test: Yes
Display Type: Digital Display
Display count: 6000
Duty cycle: 0.1%~99.9%
Flashlight: Yes
Frequency (Hz): 1MHz
High-concerned chemical: None
Live wire test: Yes
Low battery indication: Yes
Measuring Capacitance Range: 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF
Measuring Inductance Range: N/A
Measuring Resistance Range: 60Mohm
Model Number: UT191T UT191E
NCV: Yes
Operating Mode: Auto Range
Operating Temperature: 0 - 50 ℃
Origin: Mainland China
Sampling rate: 3 times/s
Temperature (Centigrade): -40centigrade~400centigrade
Temperature Fahrenheit: -40 Fahrenheit~752 Fahrenheit
Transistor hFE: Yes
True RMS: Yes
digital multimeter: multimeter uni t
multimeter auto: multimeter tester
semi_Choice: yes
Promotion Code
Enter the code to checkout page to save more

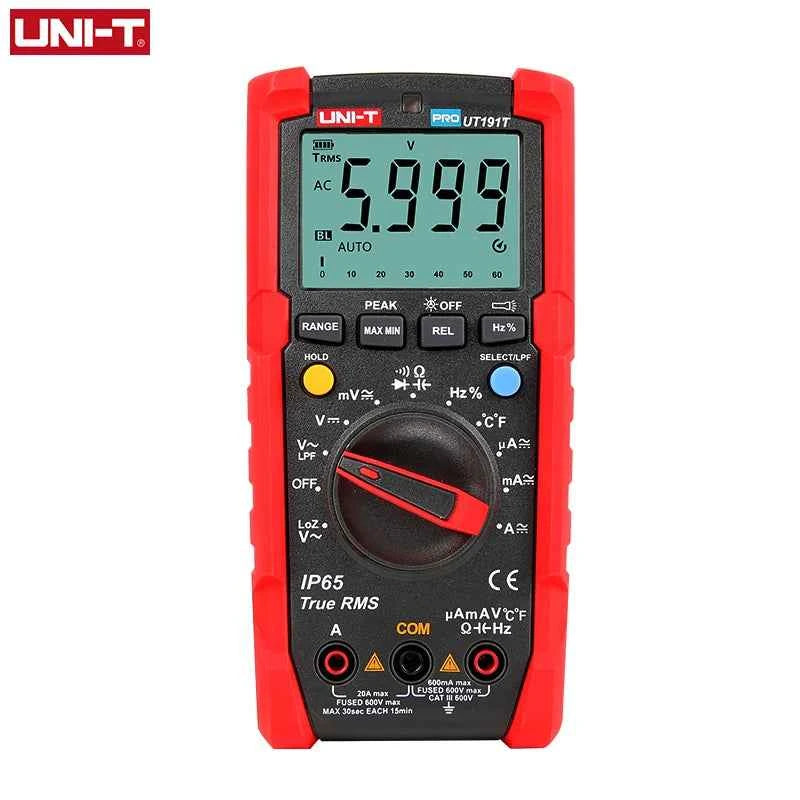

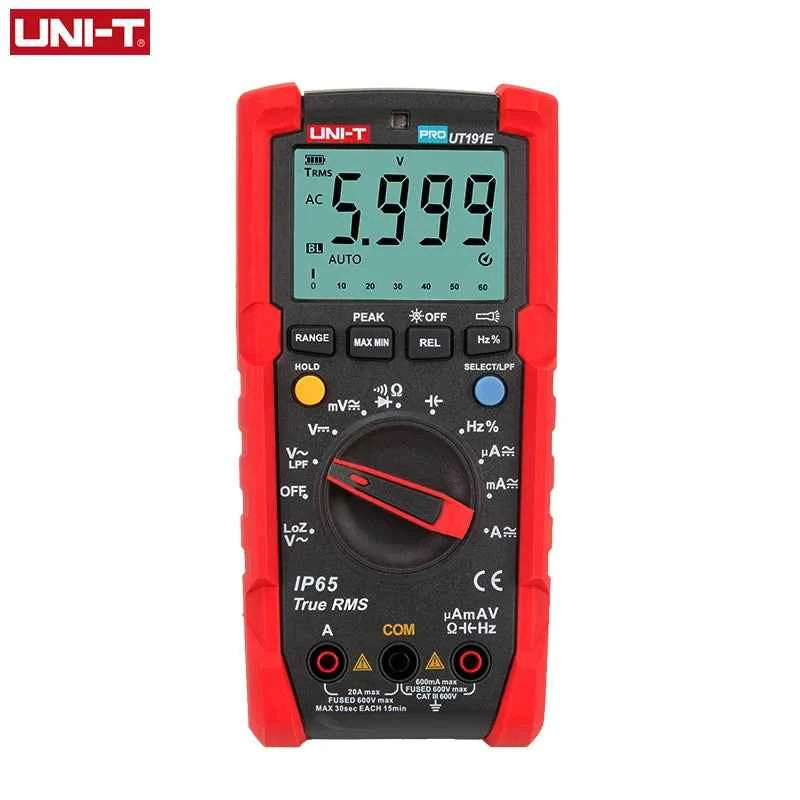

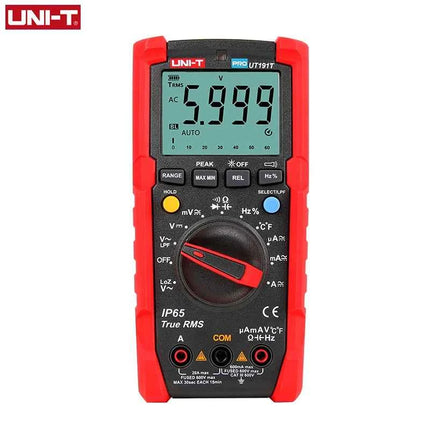

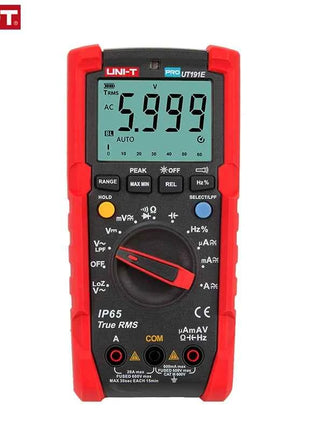

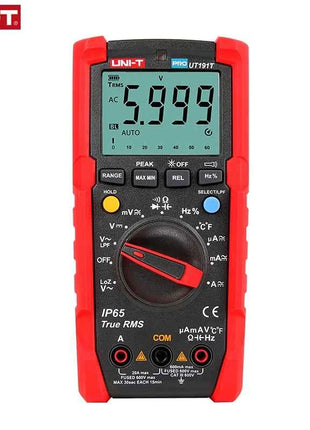

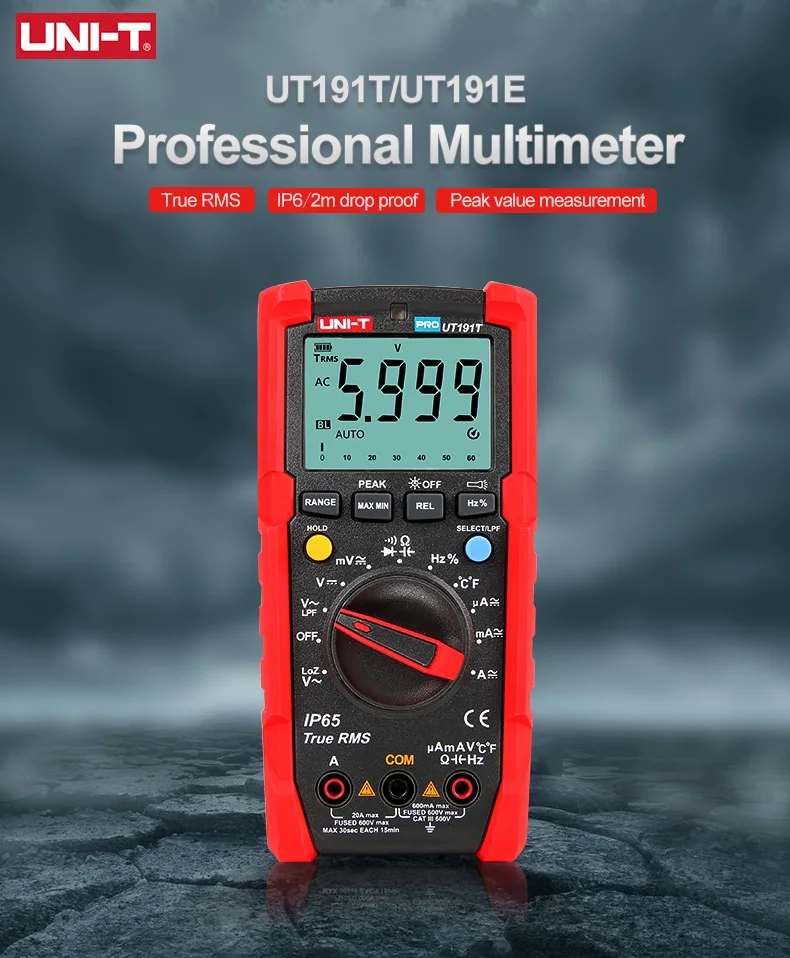

The UT191E/T is a high-reliability, high-security, full-featured handheld industrial multimeter. Fully meet the needs of industrial users who use heavy loads, waterproof and dustproof digital multimeters. Equiped with auto backlight and flashlight ,can works in dark environment

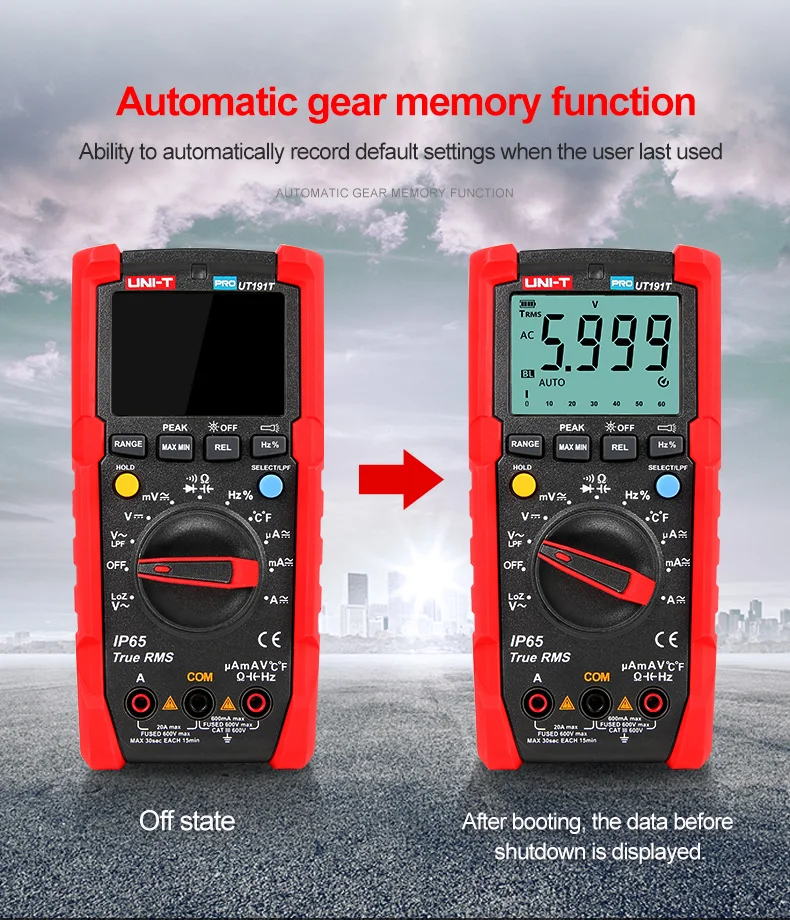

1.Measurement settings saved after power reset
3. True RMS/ Peak value measurement

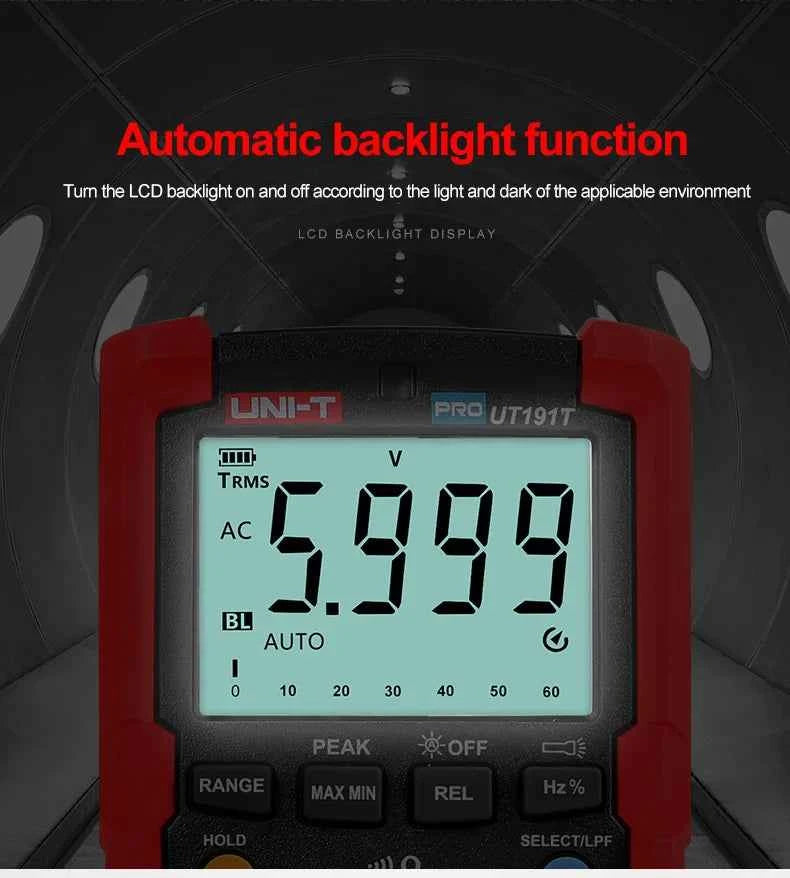

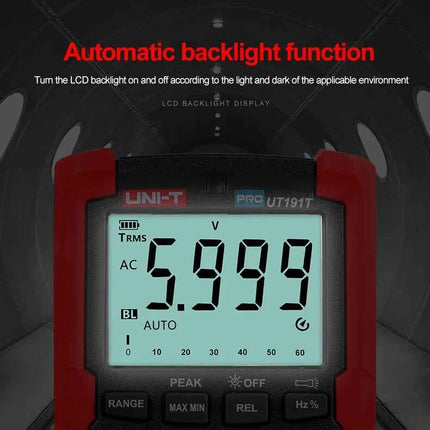

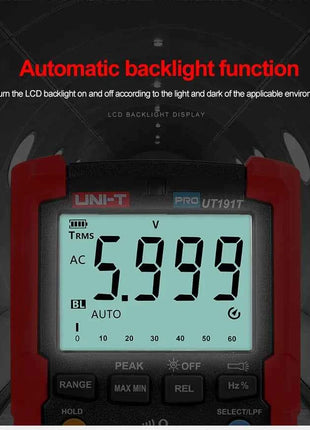

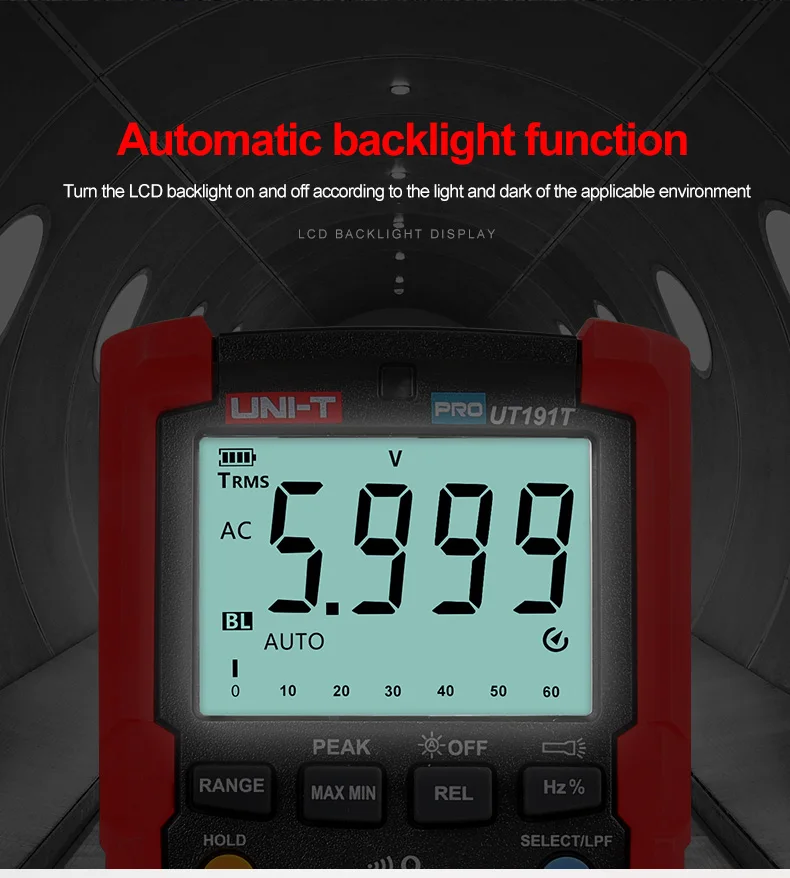

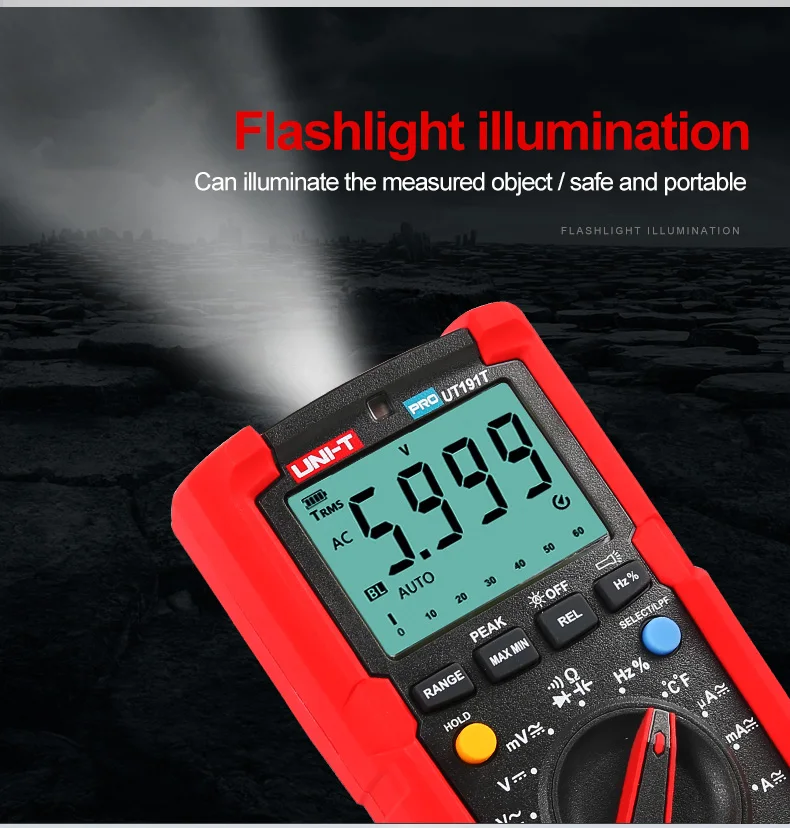

4. Flashlight,Auto Backlight
5. 20A current measurement

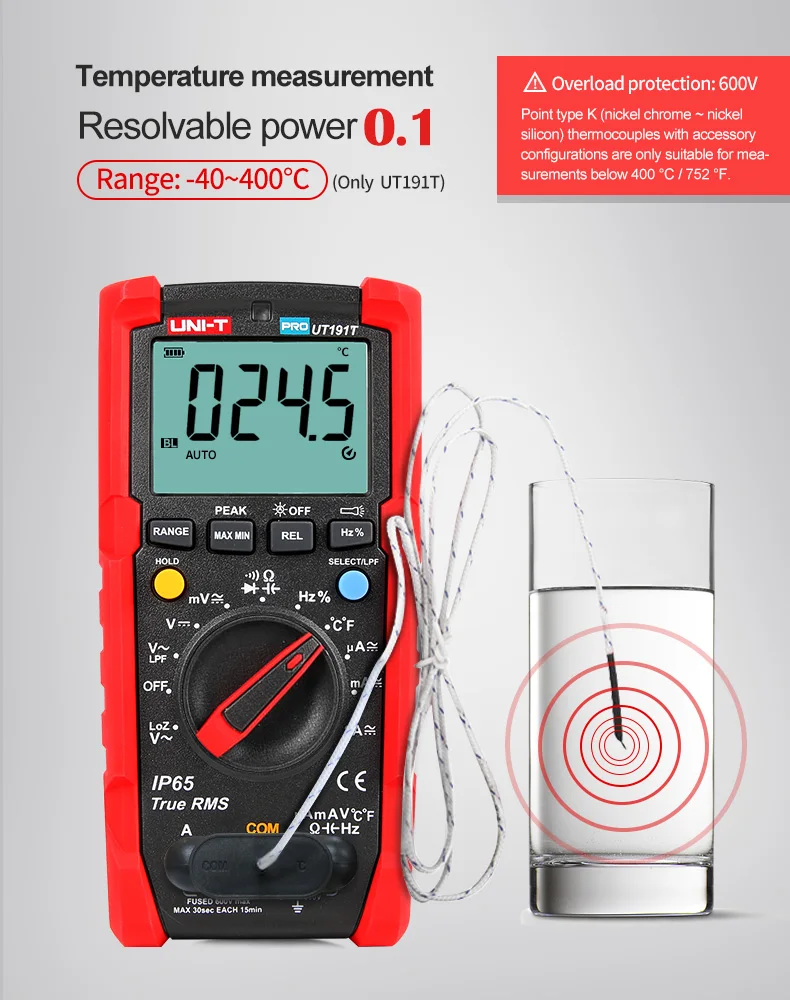

7. Precise temperature measurement with resolution of 0.1℃(UT191T),UT191E without temperature measurement function
Parameter
Specifications |
Range |
UT191E |
UT191T |
DC voltage (V) |
600V |
±(0.5%＋3) |
±(0.5%＋3) |
AC voltage (V) |
600V |
±(0.7%＋3) |
±(0.7%＋3) |

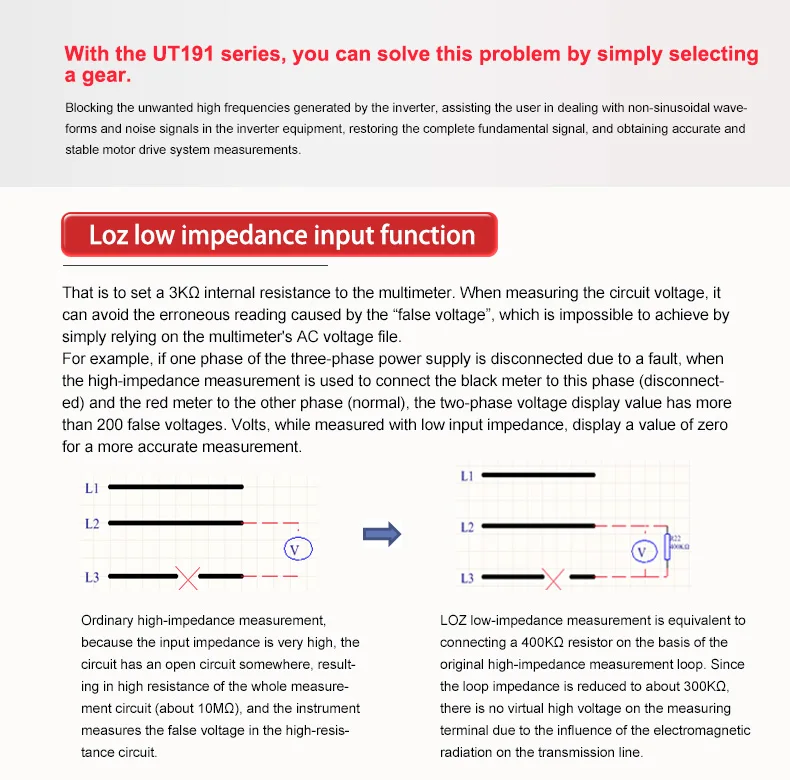

LoZ ACV (V) |
600V |
±(2%＋5) |
±(2%＋5) |

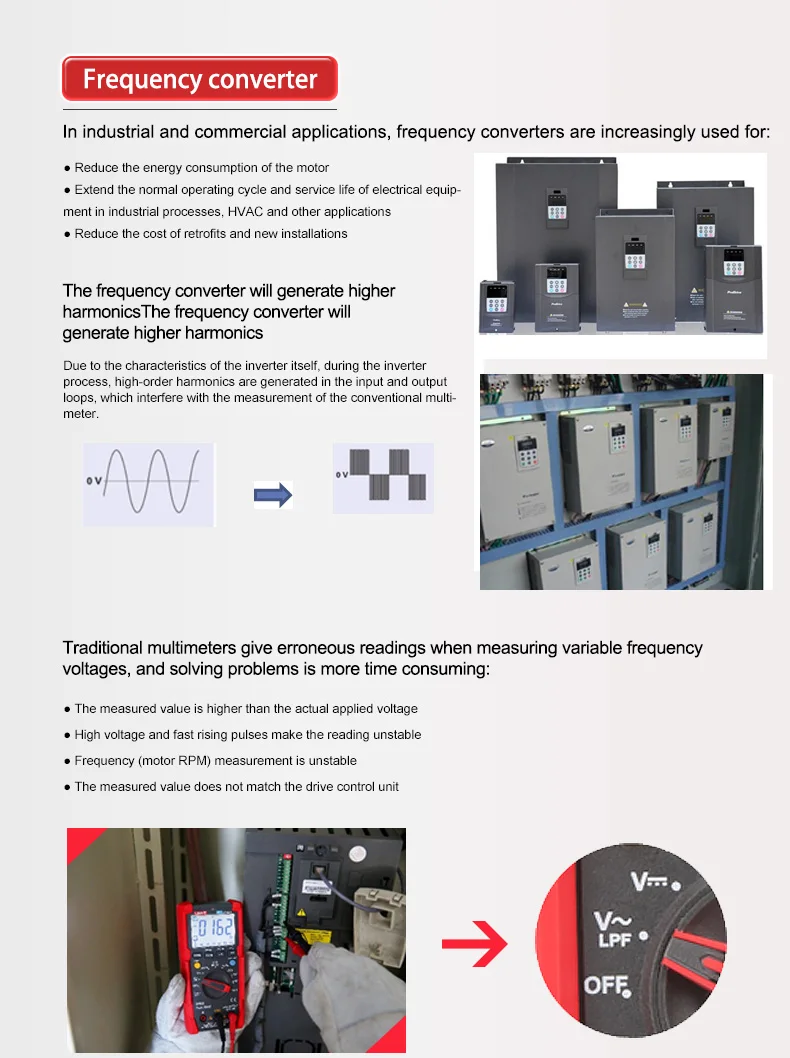

ACV LPF |
600V |
±(2%＋5) |
±(2%＋5) |
DC current (A) |
20A |
±(0.8%+3) |
±(0.8%+3) |
AC current (A) |
20A |
±(1%+3) |
±(1%+3) |
Resistance (Ω) |
60MΩ |
±(0.8%+2) |
±(0.8%+2) |
Capacitance (F) |
60mF |
±(3%+5) |
±(3%+5) |
Frequency (Hz) |
10Hz~1MHz |
±(0.1%+4) |
±(0.1%+4) |
Duty cycle |
0.1%~99.9% |
±(2%＋5) |
±(2%＋5) |
Temperature (℃) |
-40℃~400℃ (0.1°C resolution) |
|
±(1%+20) |
Temperature (℉) |
-40℉~752℉ (0.2°F resolution) |
|
±(1%+40) |
ACV peak hold |
|
±(2%+100) |
±(2%+100) |
Peak current detection |
|
±(3%+100) |
±(3%+100) |
Features |
Display count |
6000 |
Sampling rate |
3 times/second |
Analog bar graph |
31 sections |
True RMS |
√ |
AC voltage frequency response |
45Hz~400Hz |
AC current frequency response |
45Hz~400Hz |
Diode/Continunity test |
√ |
Auto/Manual range |
√ |
Auto power off |
√ |
Low battery indication |
√ |
Data hold/MAX/MIN |
√ |
Function selection (SELECT) |
√ |
Flashlight/Auto backlight |
√ |

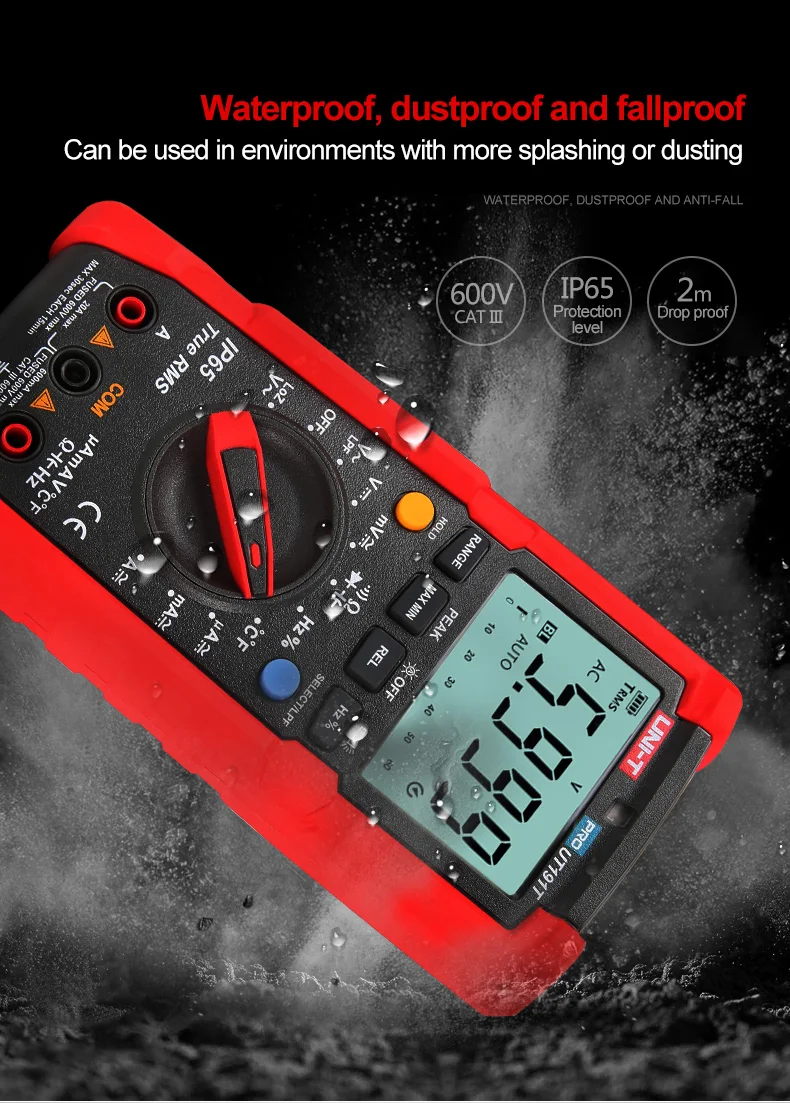

2m drop test/IP65 |
√ |
General Characteristics |
Power |
9V battery(not included) |
LCD size |
58mm x 42mm |
Product net weight |
Red and grey |
Product color |
428g |
Product size |
180mm x 87mm x 59mm |

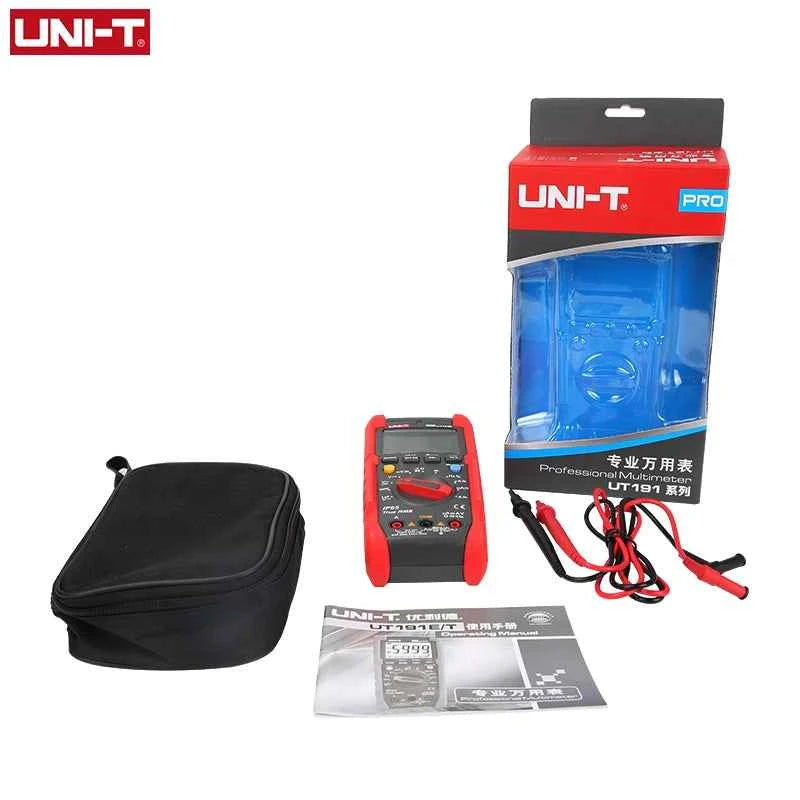

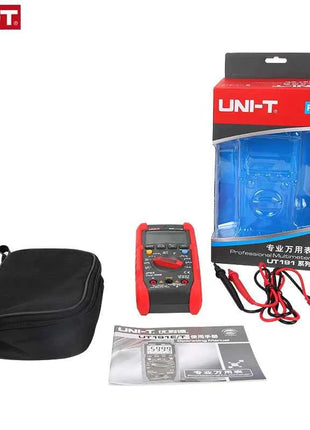

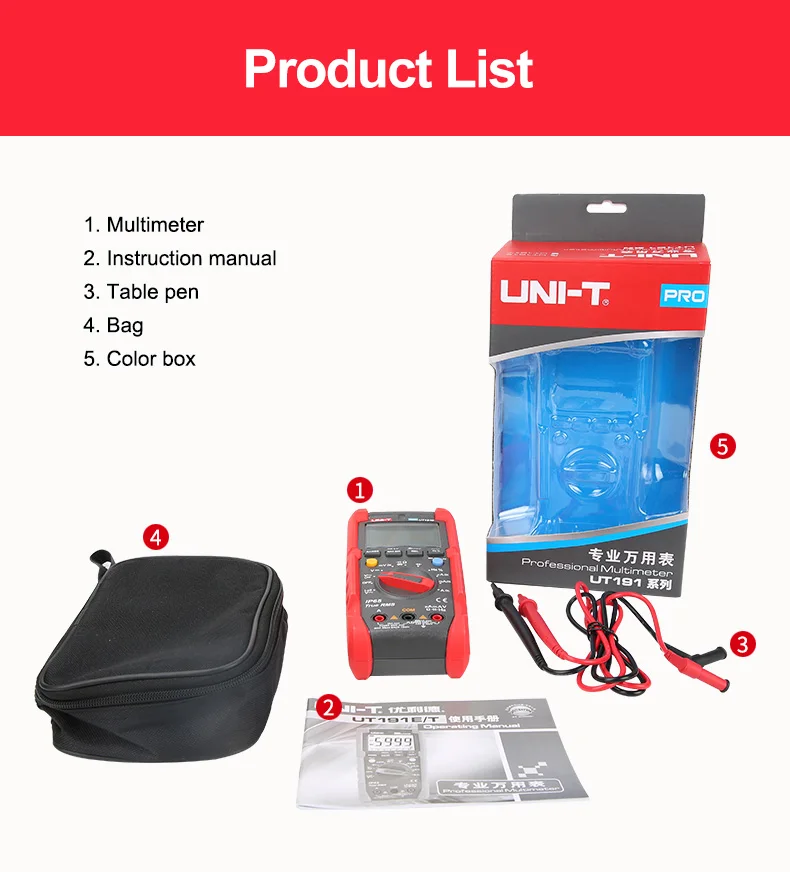

Standard accessories |
Test lead, carrying bag, point contact temperature probe (UT191T) |
Standard individual packing |
Gift box, English manual |
Note: Battery is not Included
