SPECIFICATIONS

AC Current: 600uA/6mA/60mA/600mA/6A/20A

AC Voltage: 600mV/6V/60V/600V

AC current frequency response: 45~400Hz

AC voltage frequency response: 45~400Hz

Analog Bar Graph: 31 sections

Auto backlight: Yes

Auto power off: Yes

Battery Included: No

Brand Name: UNI-T

Certification: CE

Choice: yes

DC Current: 600uA/6mA/60mA/600mA/6A/20A

DC Voltage: 600mV/6V/60V/600V

DIY Supplies: Electrical

Data hold: Yes

Dimensions: 180mm*87mm*59mm

Diode/Continuity test: Yes

Display Type: Digital Display

Display count: 6000

Duty cycle: 0.1%~99.9%

Flashlight: Yes

Frequency (Hz): 1MHz

High-concerned chemical: None

Live wire test: Yes

Low battery indication: Yes

Measuring Capacitance Range: 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF

Measuring Inductance Range: N/A

Measuring Resistance Range: 60Mohm

Model Number: UT191T UT191E

NCV: Yes

Operating Mode: Auto Range

Operating Temperature: 0 - 50 ℃

Origin: Mainland China

Sampling rate: 3 times/s

Temperature (Centigrade): -40centigrade~400centigrade

Temperature Fahrenheit: -40 Fahrenheit~752 Fahrenheit

Transistor hFE: Yes

True RMS: Yes

digital multimeter: multimeter uni t

multimeter auto: multimeter tester

semi_Choice: yes

Promotion Code

Enter the code to checkout page to save more

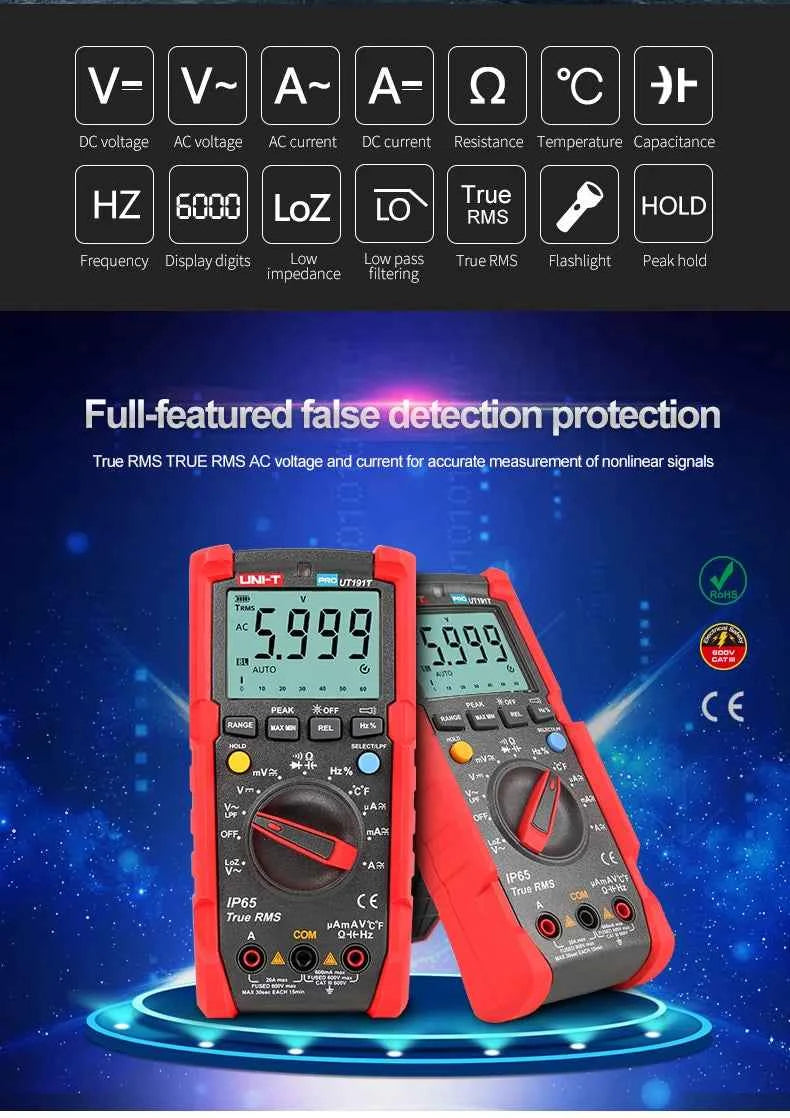

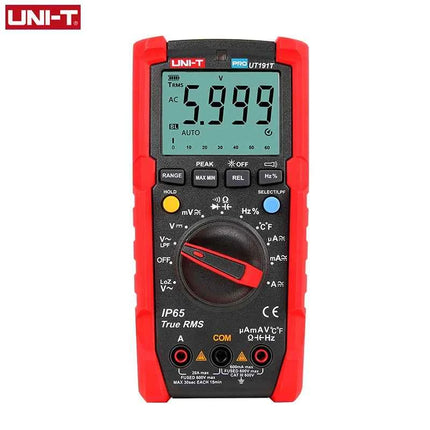

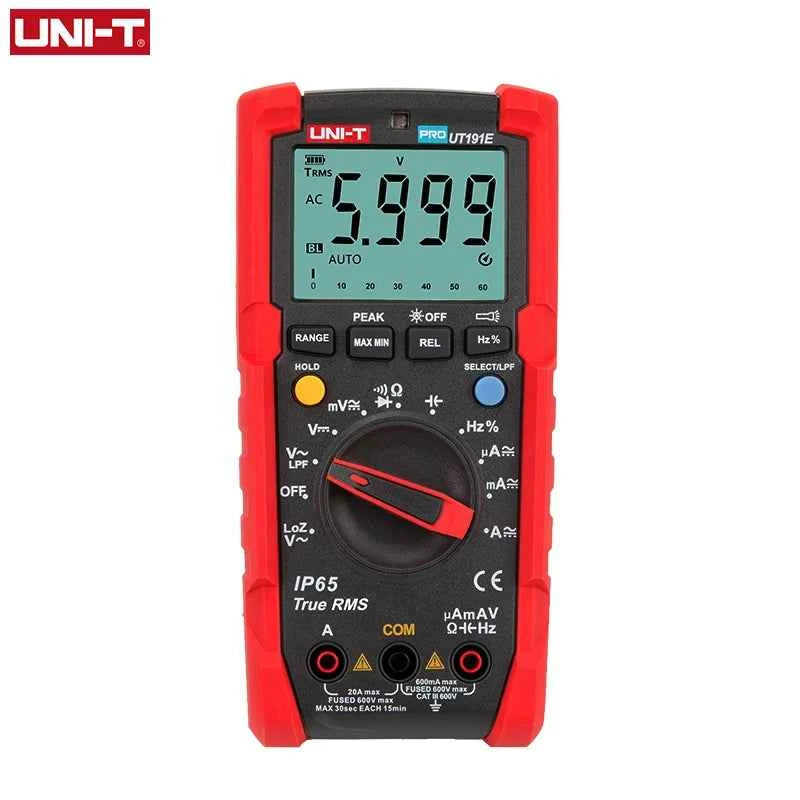

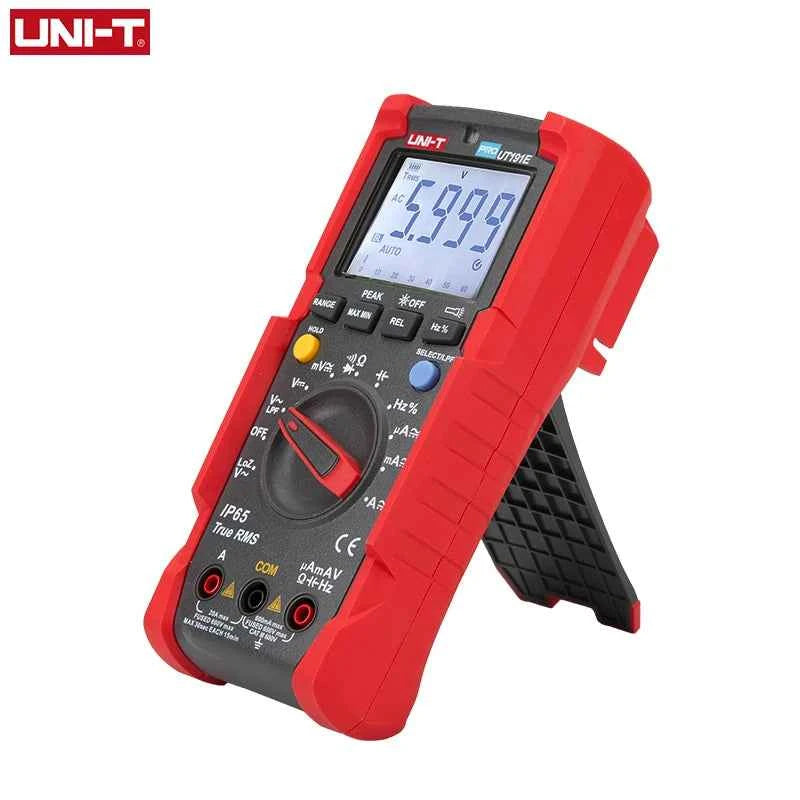

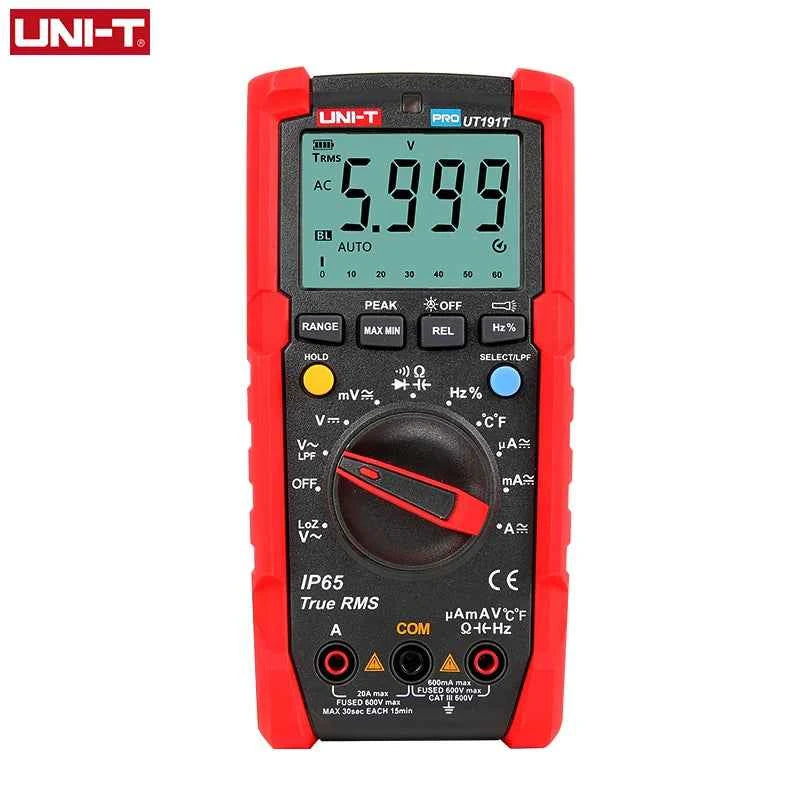

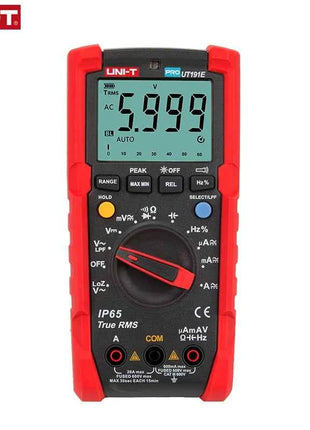

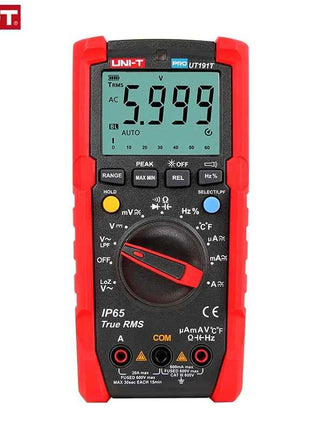

The UT191E/T is a high-reliability, high-security, full-featured handheld industrial multimeter. Fully meet the needs of industrial users who use heavy loads, waterproof and dustproof digital multimeters. Equiped with auto backlight and flashlight ,can works in dark environment

Features

1.Measurement settings saved after power reset

2. IP65,2m drop proof

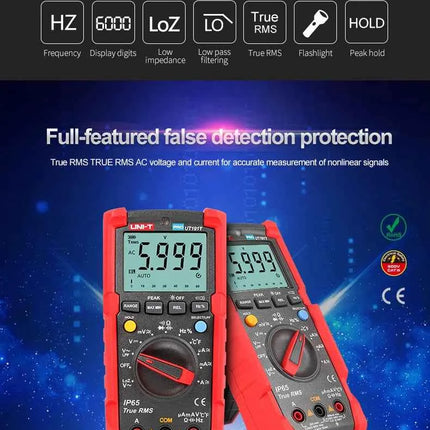

3. True RMS/ Peak value measurement

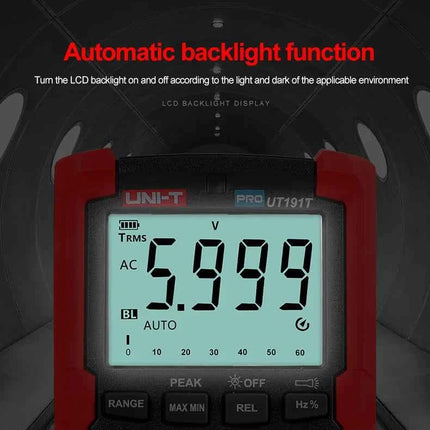

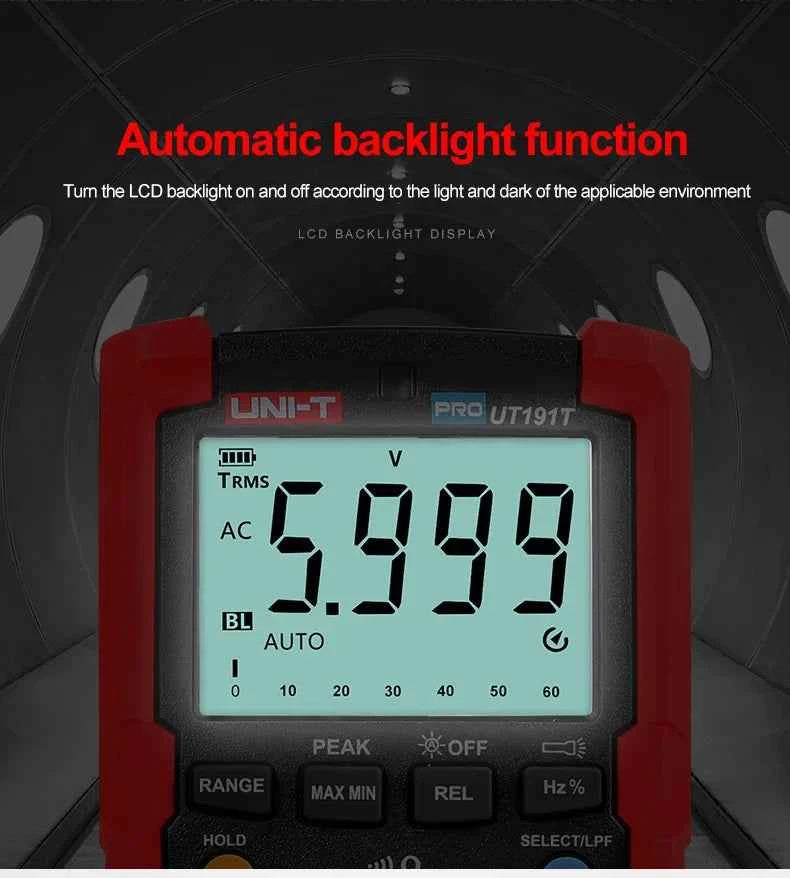

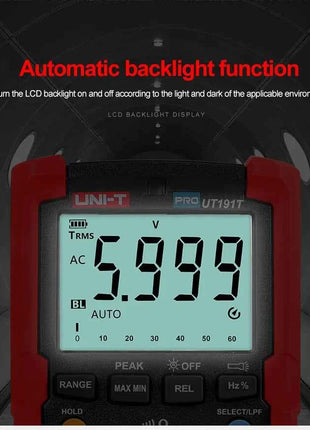

4. Flashlight,Auto Backlight

5. 20A current measurement

6. LOZ AC measurement

7. Precise temperature measurement with resolution of 0.1℃(UT191T),UT191E without temperature measurement function

Parameter

Specifications	Range	UT191E	UT191T
DC voltage (V)	600V	±(0.5%＋3)	±(0.5%＋3)
AC voltage (V)	600V	±(0.7%＋3)	±(0.7%＋3)
LoZ ACV (V)	600V	±(2%＋5)	±(2%＋5)
ACV LPF	600V	±(2%＋5)	±(2%＋5)
DC current (A)	20A	±(0.8%+3)	±(0.8%+3)
AC current (A)	20A	±(1%+3)	±(1%+3)
Resistance (Ω)	60MΩ	±(0.8%+2)	±(0.8%+2)
Capacitance (F)	60mF	±(3%+5)	±(3%+5)
Frequency (Hz)	10Hz~1MHz	±(0.1%+4)	±(0.1%+4)
Duty cycle	0.1%~99.9%	±(2%＋5)	±(2%＋5)
Temperature (℃)	-40℃~400℃ (0.1°C resolution)		±(1%+20)
Temperature (℉)	-40℉~752℉ (0.2°F resolution)		±(1%+40)
ACV peak hold		±(2%+100)	±(2%+100)
Peak current detection		±(3%+100)	±(3%+100)
Features
Display count	6000
Sampling rate	3 times/second
Analog bar graph	31 sections
True RMS	√
AC voltage frequency response	45Hz~400Hz
AC current frequency response	45Hz~400Hz
Diode/Continunity test	√
Auto/Manual range	√
Auto power off	√
Low battery indication	√
Data hold/MAX/MIN	√
Function selection (SELECT)	√
Flashlight/Auto backlight	√
2m drop test/IP65	√
General Characteristics
Power	9V battery(not included)
LCD size	58mm x 42mm
Product net weight	Red and grey
Product color	428g
Product size	180mm x 87mm x 59mm

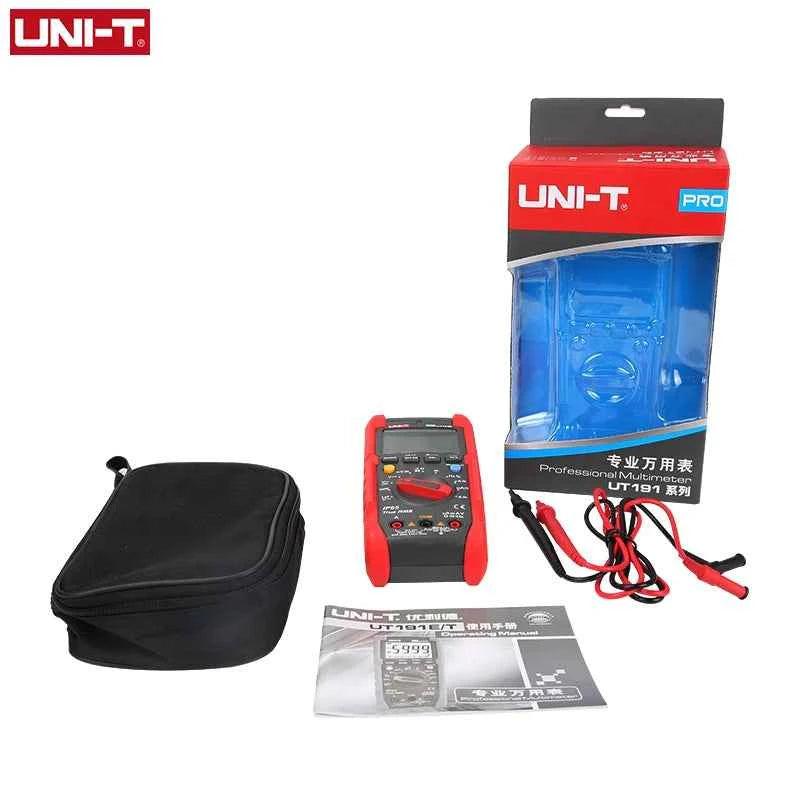

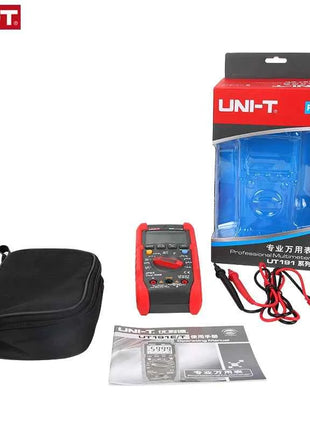

Standard accessories	Test lead,  carrying bag, point contact temperature probe (UT191T)
Standard individual packing	Gift box, English manual

Note: Battery is not Included
