Descrizione

SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,VGA (D-Sub),USB Type-C,4 x USB 2.0,HDMI 2.0

Battery Included: No

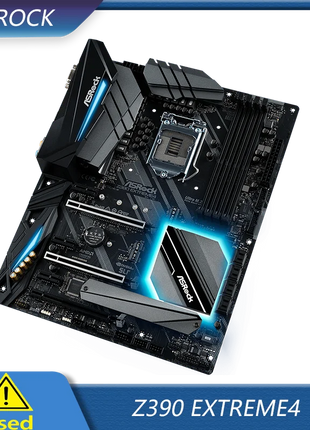

Brand Name: ASROCK

Chipset: Intel Z390

Chipset Manufacturer: Intel

High-concerned chemical: None

Maximum Ram Capacity: 128 GB

Number of PCI: 2

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 4.0

Package: No

Processor compatibility: 8th Intel Core i5,9th Intel Core i3,9th Intel Core i5,8th Intel Core i7,9th Intel Core i9,9th Intel Core i7,8th Intel Core i9

RAID Supported: No

Socket Type: LGA 1151

Special Features: RGB,Intel Optane Ready,Cooling Armor

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Usage Scenario: Gaming,Audio & Video,Office

With CPU: No

Supports 9th and 8th generation Intel® Core ™ processors (1151 slots)

Digital power supply

Support Intel® Turbo Boost 2.0 technology

- Supports Intel® K series unlocked multiplier processors

Supports full-range overclocking of AsRock BCLK

Chip

- Intel® Z390

Memory

Dual-channel DDR4 memory technology

4 x DDR4 memory slots

Supports DDR4 4300+(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666/2400/2133 (non-ECC), un-buffered memory

Support ECC UDIMM memory modules (operating in non-ECC mode)

- Maximum system memory capacity: 128GB*

- Supports Intel® Extreme Memory Configuration (XMP) 2.0 technology

The DIMM slots adopt 15μ gold-plated pins

Due to the limitations of the operating system, the actual usable memory under the Windows® 32-bit operating system will be less than 4GB. There is no such restriction when using a 64-bit CPU under the Windows® 64-bit operating system.

BIOS

-2x Multilingual 128Mb AMI UEFI Legal BIOS supporting graphical interface (1x primary BIOS and 1x backup BIOS)

- Supports secure backup UEFI technology

- Compatible with ACPI 6.0 wake-up events

Support SMBIOS 2.7

- CPU core/cache, GT, memory, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL, CPU Internal PLL, GT PLL, Ring PLL, System proxy PLL, Memory controller PLL, Voltage multifunctional regulator

Onboard graphics card

- Supports Intel® UHD display chip built-in vision technology: Intel® High Speed Video Synchronization Technology (AVC, MVC (S3D) and MPEG-2 Full HW Encode1), Intel® InTru™ 3D, Intel® Clear Video Technology, Intel® Insider™ Intel® UHD display chip

- DirectX 12

-HWA encoding/decoding: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (decoding only), MPEG2, MJPEG, VC-1

- Three display output options: D-Sub, HDMI and DisplayPort 1.2

Supports simultaneous output on three displays

Supports HDMI 1.4 technology, with a maximum resolution of 4K x 2K (4096x2160) @30Hz

Supports DisplayPort 1.2, with a maximum resolution of 4K x 2K (4096x2304) @60Hz

Supports D-Sub, with a maximum resolution of 1920x1200@60Hz

- Supports automatic audio and video synchronization on HDMI 1.4 port, dark color (12bpc), xvYCC and HBR (high speed audio) (HDMI-compatible display required)

HDCP 2.2 is supported via HDMI 1.4 and DisplayPort 1.2 ports

Supports 4K Ultra HD (UHD) ultra-clear playback through HDMI 1.4 and DisplayPort 1.2 ports

Processors with only built-in Gpus support Intel® UHD display chip built-in vision technology and display output.

Sound effect

- 7.1-channel high-fidelity audio, supporting content protection function (Realtek ALC1220 audio codec)

- Supports high-quality Blu-ray audio effects

- Supports anti-surge

Supports high-fidelity fourth generation

- Nichicon Fine Gold Professional audio Effect Capacitor

A 120dB signal-to-noise ratio digital-to-analog converter with a differential amplifier

The NE5532 premium headphone amplifier is located in the front panel audio interface (supporting headphones up to 600 ohms)

Pure power supply

Direct drive technology

- PCB isolation shielding

Automatic impedance detection for rear audio effects

- Layered wiring for the left and right channels

- RGB LED

-15 μ gold-plated audio interface

- Supports DTS connection

Local Area network

Gigabit network card 10/100/1000 Mb/s

- Giga PHY Intel® I219V

Support the network wake-up function (wake-up On-LAN)

- Supports lightning protection/ESD static electricity protection

Support Energy Efficient Ethernet 802.3az

- Support PXE

Expansion slot

-3 x PCI Express 3.0 x16 slots (PCIE2/PCIE4/PCIE6: Single slot x16 (PCIE2); Dual-slot x8 (PCIE2)/x8 (PCIE4) Three-slot x8 (PCIE2)/x8 (PCIE4)/x4 (PCIE6) *

-3 x PCI Express 3.0 x1 slot (Flexible PCIe slot)

Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™

- Supports NVIDIA® Quad SLI™ and SLI™

NVIDIA® NVLink™ supporting dual NVIDIA® GeForce RTX series graphics cards

-1 x M.2 interface (Key E), supporting 2230 type WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)***

The VGA PCIe slot adopts 15μ gold-plated pins (PCIE2).

Supports boot from NVMe SSD

The NVIDIA® NVLink™ bridge is not included in the package. If necessary, please purchase from NVIDIA.

*** Only supports CNVio1 WiFi Wireless module (Intel® Wireless-AC 9560/9462/9461).

Storage

-6 x SATA3 6.0 Gb/s interface, supporting RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Fast Storage Technology 16), NCQ, AHCI and hot plugging *

-2x SATA3 6.0Gb/s interface supported by ASMedia ASM1061, supporting NCQ, AHCI and hot plugging

- 1 x Super M.2 interface (M2_1), supporting M Key 2230/2242/2260/2280 type M.2 SATA3 6.0 Gb/s and M.2 PCIe module to Gen3 x4 (32 Gb/s)**

The m. - 1 x 2 interface (M2_2), support the M Key type 2230/2242/2260/2280/22110 m. 2 SATA3 6.0 Gb/s and m. 2 PCIe module to Gen3 x4 (32 Gb/s) * *

M2_1, SATA3_0 and SATA3_1 share the channel. If one of them is used, the others will be deactivated.

M2_2, SATA3_4 and SATA3_5 share channels. If one of them is used, the others will be deactivated.

Support Intel® Optane™ technology

Support NVMe SSD booting

Supports AsRock U.2 suite

On-board interface

Pin 1 x COM port

-1 x TPM needle insertion

Pin the -1 x power LED to the speaker

-2 x RGB LED pins *

1 x Programmable LED pin connector

-1 x CPU fan interface (4-pin)***

-1x CPU/PUMP-Fan interface (4-pin) (Smart Fan speed control)****

-3x chassis/pump fan interface (4-pin) (Smart fan speed control)*****

-1 x 24-pin ATX power interface (high-density power interface)

-1 x 8-pin 12V power interface (high-density power interface)

-1 x 4-pin 12V power interface (high-density power interface)

-1 x front panel audio interface (15μ gold-plated audio interface)

-1 x Thunderbolt™ AIC interface (5-pin)

-2 x USB 2.0 pins (supporting 4 USB 2.0 interfaces) (Intel® Z390) (Supporting ESD electrostatic protection)

-2 x USB 3.2 Gen1 pins (supporting 4 USB 3.2 Gen1 interfaces) (ASMedia ASM1074 hub) (Supporting ESD electrostatic protection)

- 1 x Front C-type interface USB 3.2 Gen1 pin (Intel® Z390) (supports ESD static protection)

-1 x Performance mode/EZ OC pin connection

Supports up to 12V/3A, 36W LED light strips

Supports up to 5V/3A, 15W LED light strips

The CPU fan interface supports a maximum power supply of 1A (12W).

****CPU/pump fan supports up to 2A (24W) water-cooled fan.

***** Chassis/pump fan supports up to 2A (24W) water-cooled fan.

CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can automatically detect 3-pin or 4-pin fans.

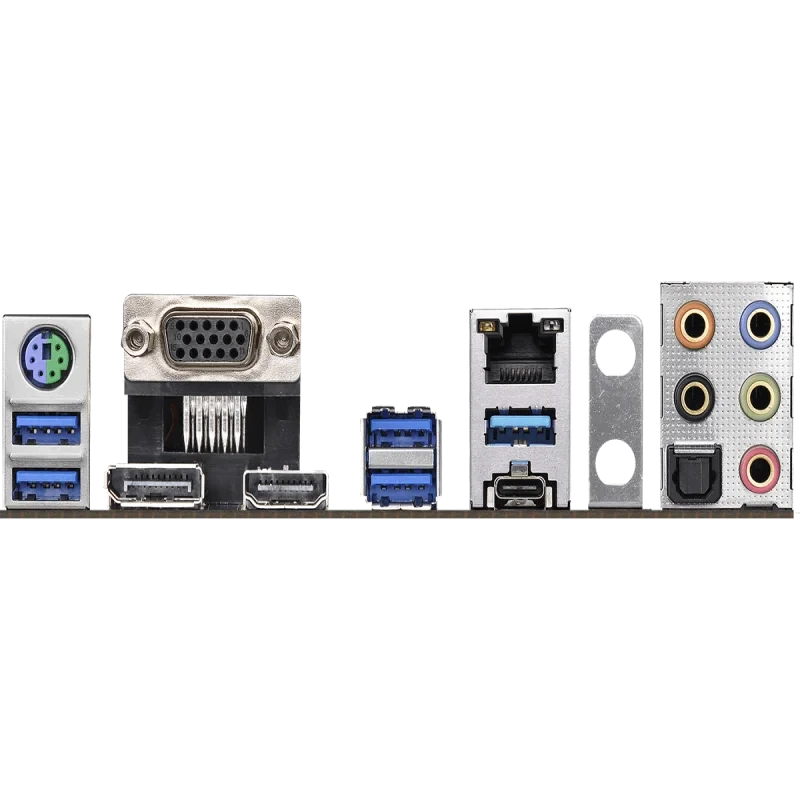

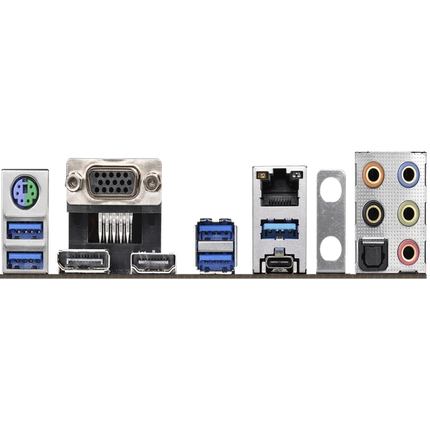

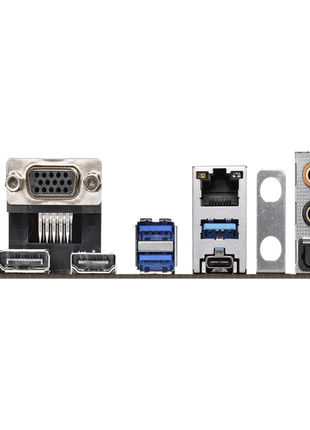

Rear back panel output/input interface

-1 x antenna port

-1 x PS/2 keyboard/mouse interface

-1 x D-Sub interface

1 x HDMI interface

1 x DisplayPort 1.2

-1x optical fiber SPDIF digital audio output port

-1 x USB 3.2 Gen2 Type-A interface (10 Gb/s) (ReDriver) (Supports ESD electrostatic protection)

-1 x USB 3.2 Gen2 Type-C interface (10 Gb/s) (ReDriver) (Supports ESD electrostatic protection)

-4 x USB 3.2 Gen1 interface (Intel® Z390) (supporting ESD electrostatic protection)*

-1 x RJ-45 network interface, with indicator lights (action/connection indicator light and speed indicator light)

-HD audio jacks: rear/center/bass/linear input/front/microphone

Please note that USB3_34 does not support waking up USB keyboards and mice from the S3/S4/S5 state.

Software and UEFI

Software

- Asrock A-Tuning

- AsRock Polychrome SYNC

UEFI

- AsRock EZ mode

- AsRock Full HD UEFI

- Asrock Customized UEFI

- AsRock Instant Flash (Instant Update Tool)

- AsRock Cloud Upgrade

- Asrock Simple Array

These applications can be downloaded from the AsRock AppGallery.

Random CD

- Drivers, application software, antivirus software (trial version), Chrome, Google Chrome and toolbars

Attachment

- I/O baffle

-4 x SATA data cable

1 x AsRock SLI_HB_Bridge_2S card

-3 x M.2 slot screw

Hardware monitor

- Temperature detection: CPU, CPU/ water pump, case/water pump fan

Fan tachometer: CPU, CPU/ water pump, case/water pump fan

- Silent fan (can automatically adjust the fan speed of the case according to the processor temperature): CPU, CPU/ water pump, case/water pump fan

Fan multi-speed control: CPU, CPU/ water pump, case/water pump fan

- Real-time voltage monitoring: +12V, +5V, +3.3V, CPU core, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST, VCCIO

Structure

-ATX specification: 12.0-in x 9.6-in, 30.5cm x 24.4cm

Operating system

- Supports Microsoft® Windows 10 64-bit / 11 64-bit

Certification

- FCC, CE

- Supports ErP/EuP (requires a power supply that supports ErP/EuP.
