SPECIFICATIONS

Application: Desktop

Back I/O Ports: VGA (D-Sub),HDMI 1.3,DVI-I

Battery Included: No

Brand Name: Asus

Chipset: Intel Z77

Chipset Manufacturer: Intel

Crossfire: sli

Form Factor: ATX

High-concerned chemical: None

Maximum Ram Capacity: 32 GB

Memory channel: Double

Number of PCI: 3

Number of PCIe x 1: 2

Number of PCIe x 16: 2

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: No

Processor compatibility: Intel Pentium,Intel Others

Quality Certification: ce

RAID Supported: No

Socket Type: LGA 1155

Special Features: None

Storage Interface Type: SATA 3

Support Memory Type: DDR3

Usage Scenario: Office

With CPU: No

Motherboard Chip

Integrated chip sound card / network card
The main chipset Intel Z77
Chipset Description Intel Z77 chipset
Display chip CPU built-in display chip (CPU support required)
Audio chip integrated Realtek ALC887 8-channel audio chip
LAN chip Realtek RTL8111E Gigabit Ethernet board

Processor specifications

CPU Type Core i7 / Core i5 / Core i3 / Pentium / Celeron

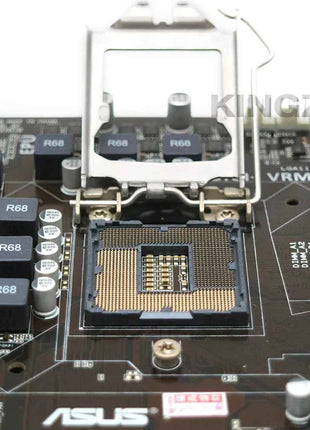

CPU socket LGA 1155
CPU Description Supports Intel 22 / 32nm processor

Memory specifications

Memory type DDR3
Memory slot 4 × DDR3 DIMM
The maximum memory capacity of 32GB
Memory Description Dual Channel DDR3 2400 (Overclocking) / 2200 (Overclocking) / 2133 (Overclocking) / 2000 (Overclocking) / 1866 (Overclocking) / 1800 (Overclocking) / 1600/1333 MHz Memory

Expansion slots

PCI-E standard PCI-E 3.0 standard
PCI-E 2.0 standard
PCI-E slot 2 × PCI-E X16 graphics slot
2 × PCI-E X1 slot
PCI slot 3 × PCI slot
Storage interface 4 × SATA II interface; 2 × SATA III interface

I / O interface

USB interface 10 × USB2.0 interface (6 built-in +4 backplane); 4 × USB3.0 interface (2 built-in +2 backplane)
HDMI interface 1 × HDMI interface
External port 1 × DVI interface
1 × VGA interface
PS / 2 interface PS / 2 mouse and keyboard common interface
Power socket An 8-pin, a 24-pin power connector
Other interfaces 1 × RJ45 network interface
1 × fiber interface
audio port

Plate type

Motherboard ATX board type
Overall dimensions 30.5 × 21.8cm
