Descrizione

SPECIFICATIONS

Application: Desktop

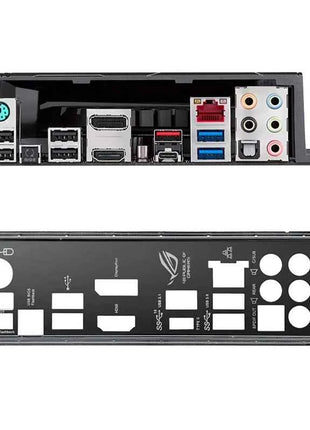

Back I/O Ports: 1x RJ45,8 x USB 2.0,PS/2 Combo,USB Type-C,Disply Port,HDMI 1.4

Battery Included: No

Brand Name: Asus

Chipset: Intel Z170

Chipset Manufacturer: Intel

High-concerned chemical: None

Maximum Ram Capacity: 64 GB

Number of PCI: 3

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: No

Processor compatibility: 6th Intel Core i7,6th Intel Core i3,6th Intel Core i5

RAID Supported: No

Socket Type: LGA 1151

Special Features: RGB,Intel Optane Ready,Cooling Armor

Storage Interface Type: SATA,M.2 (NVMe)

Support Memory Type: DDR4

Usage Scenario: Gaming,Audio & Video,Office

With CPU: No

Motherboard chip

Integrated chip Audio card / Network card

Main chip set Intel Z170

Chipset description Uses Intel Z170 chipset

Display chip CPU built-in display chip (requires CPU support)

Audio chip Integrated SupremeFX 8-channel audio chip

Network card chip Board-mounted Intel I219V Gigabit network card

Processor specifications

CPU type Sixth-generation Core i7/i5/i3/Pentium/Celeron

CPU socket LGA 1151

CPU description Supports Intel 14nm processors

Memory specifications

Memory type 4×DDR4 DIMM

Maximum memory capacity 64GB

Memory description Supports dual-channel DDR4 3600(OC)/3466(OC)/3400(OC)/3300(OC)/3200(OC)/3000(OC)/2800(OC)/2666(OC)/2400(OC)/2133MHz memory

Storage expansion

PCI-E standard PCI-E 3.0

PCI-E slots 3×PCI-E X16 graphics card slots, 3×PCI-E X1 slots

Storage interfaces 1×M.2 interface, 2×SATA Express interface, 8×SATA III interface

I/O interfaces

USB interfaces 1×USB3.1 Type-A interface, 1×USB3.1 Type-C interface, 6×USB3.0 interface (4 internal + 2 on the back panel), 8×USB2.0 interface (4 internal + 4 on the back panel)

Video interfaces 1×Display Port interface, 1×HDMI interface

Power interface One 8-pin, one 24-pin power interface

Other interfaces 1×RJ45 network interface, 1×Fiber optic interface, audio interface, 1×PS/2 keyboard/mouse universal interface

Board type

Motherboard board type ATX board type

Form factor 30.5×24.4cm Software Management

BIOS Performance: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 Setup Wizard, F6 Qfan Control, F3 Favorites, Quick Notes, History Record, F12 Screen Capture, F3 Hotkeys, and ASUS DRAM SPD (Serial Presence Detect) Memory Information

Other Parameters

Multi-GPU Technology: Supports AMD Quad-GPU CrossFireX dual-card four-core crossfire technology

Supports NVIDIA Quad-GPU SLI dual-card four-core crossfire technology

Supports NVIDIA SLI dual-channel crossfire technology

Supports AMD 3-Way CrossFireX three-way crossfire technology

Power Supply Mode: 10-phase

Overclocking Function: Supported

RAID Function: Supports RAID 0, 1, 5, 10

Operating System: Faith Light, ROG Faith Sound

Other Features: Supports HIFI

Release Date: August 2015
