ASUS ROG STRIX Z370-F GAMING LGA1151 DDR4 DP HDMI DVI M.2 Z370 ATX

Condividi
- WhatsApp
- Facebook
- X
- Pinterest
- Messenger
- Email

ASUS ROG STRIX Z370-F GAMING LGA1151 DDR4 DP HDMI DVI M.2 Z370 ATX

Condividi
- WhatsApp
- Facebook
- X
- Pinterest
- Messenger
- Email

Forma del prodotto

SPECIFICATIONSApplication: DesktopAudio Channels: 7.1Back I/O Ports: 1x RJ45,HDMI 1.3,Disply Port,DVI-DBattery Included: NoBrand Name: AsusChipset: Intel Z370Chipset Manufacturer: IntelForm Factor: ATXHigh-concerned... Per saperne di più

SKU: 200000828:9198229178

958 in stock Consegna entro 48 ore

★★★★★0 recensioni

🔥 1.000+ acquistati nel mese scorso

€114,77 incl. I.V.A.

✓ Pagamento 100% Sicuro - Garantito

15% off 15 - Buy 14 more to qualify

Do you need a large stock? Contact us.

20% off 20 - Buy 19 more to qualify

Do you need a large stock? Contact us.

Sustainable and eco-friendly

Available in large numbers

Call us: +393312798971

Available on working days between 9:00 am to 6:00 pm

orizonshop.it@gmail.com

Available on working days between 9:00 am to 6:00 pm

🚚 Consegna e Supporto

Spedizione Gratuita

Reso 14 giorni

Assistenza

Pagamento Sicuro

Descrizione

SPECIFICATIONS

Name: ASUS ROG STRIX Z370-F GAMING LGA1151 DDR4 DP HDMI DVI M.2 Z370 ATX
Brand: OrizonShop
SKU: 200000828:9198229178
Price: 114.77 EUR
Availability: InStock

Application: Desktop

Audio Channels: 7.1

Back I/O Ports: 1x RJ45,HDMI 1.3,Disply Port,DVI-D

Battery Included: No

Brand Name: Asus

Chipset: Intel Z370

Chipset Manufacturer: Intel

Form Factor: ATX

High-concerned chemical: None

Maximum Ram Capacity: 64 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 2

Number of PCI: 4

Number of PCIe x 16: 3

Number of SATA Ports: 6

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: No

Processor compatibility: 8th Intel Core i5,9th Intel Core i3

Quality Certification: ce

RAID Supported: Yes

Socket Type: LGA 1151

Special Features: None

Storage Interface Type: SATA,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0,USB 3.1 Gen1

Supports M.2 SSD: 2242,2280,2260

Usage Scenario: Enthusiast & Overclocking,Audio & Video,Household,Office

With CPU: No

Model

Brand ASUS

Series ROG

Model Strix Z370-F Gaming

Supported CPU

CPU Socket Type LGA 1151 (300 Series)

CPU Type Intel Socket 1151 only for 8th Generation Core Processors

* Not backward compatible with older generation of LGA 1151 CPUs

Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0*

* The support of these features depends on the CPU types.

Chipsets

Chipset Intel Z370

Onboard Video

Onboard Video Chipset Integrated Graphics Processor- Intel HD Graphics support

Multi-VGA output support: DisplayPort/HDMI/DVI-D ports

Supports DisplayPort 1.2* with max. resolution 4096 x 2304@60Hz

Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz

Supports DVI-D with max. resolution 1920 x 1200@60Hz

Supports Intel InTru 3D/Quick Sync Video/Clear Video HD Technology/Insider

Supports up to 3 displays simultaneously

Maximum shared memory of 1024MB

* DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Memory

Number of Memory Slots 4x288pin (DDR4)

Memory Standard DDR4 4000(OC)*/ 3866(OC)*/ 3733(OC)*/ 3600(OC)*/ 3466(OC)*/ 3400(OC)*/ 3333(OC)*/ 3300(OC)*/ 3200(OC)*/ 3000(OC)*/ 2800(OC)*/ 2666/ 2400/ 2133

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Maximum Memory Supported 64GB

Channel Supported Dual Channel

Expansion Slots

PCI Express 3.0 x16 2 x PCIe 3.0/2.0 x16 slots (supports x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**)

1 x PCIe 3.0/2.0 x16 slot (max. at x4 mode)

* For 2 Intel SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX8_2 slot, enable this card under BIOS settings.

** For 3 Intel SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16/x8_1 slot, enable this card under BIOS settings.

PCI Express x1 4 x PCIe 3.0/2.0 x1 slot

Storage Devices

Serial ATA (SATA) 6 x SATA 6Gb/s

M.2 1 x M.2_1 Socket 3 with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE 3.0 x4 modes)*

1 x M.2_2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)**

Ready for Intel Optane Memory***

* The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.

** The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use SATA devices.

*** Intel Optane Technology only supported when using 8th Generation Intel Processors. Before using Intel Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.

**** These functions will work depending on the CPU installed.

SATA RAID 0/1/5/10

Onboard Audio

Audio Chipset ROG SupremeFX S1220A

Audio Channels 8 Channels

Onboard LAN

LAN Chipset Intel I219-V

Max LAN Speed 1Gbps

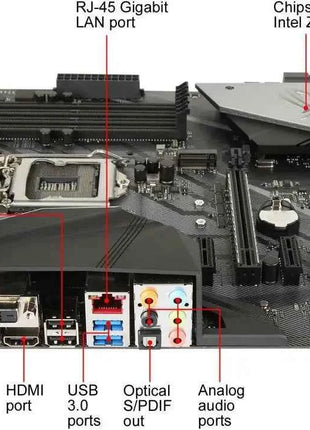

Rear Panel Ports

Video Ports 1 x DVI port

HDMI 1 x HDMI

RJ45 1 x Anti-surge LAN (RJ45) port

DisplayPort 1 x DisplayPort

USB 3.1 2 x USB3.1 Gen2 ports (1 x Type-A [red] and 1 x Type-C ports at back panel)

2 x USB 3.1 Gen1 ports [blue]

USB 1.1/2.0 2 x USB 2.0

S/PDIF Out 1 x Optical

Audio Ports 5 Ports

Internal I/O Connectors

Onboard USB 2 x USB 3.1 Gen1 connectors support additional 4 x USB 3.1 Gen1 ports

2 x USB 2.0 connectors support additional 4 x USB 2.0 ports

Other Connectors 1 x 4-Pin M.2_FAN connector

1 x 4-Pin AIO_PUMP fan connector

1 x 4-Pin CPU fan connector

1 x 4-Pin CPU_OPT fan connector

2 x 4-Pin Chassis fan connectors

1 x 5-Pin Extension fan connector

1 x Front panel audio connector (AAFP)

1 x COM connector

2 x RGB Headers

1 x Addressable Header

1 x TPM connector

1 x System panel connector

1 x Thermal sensor connector

1 x CPU_OV

1 x Clear CMOS jumper (2-pin)

Physical Spec

Form Factor ATX

LED Lighting RGB

Dimensions (W x L) 12.0" x 9.6"

Power Pin 1 x 24-pin EATX power connector

1 x 8-pin EATX 12V power connector

Features

Features Multi-GPU Support:

Supports NVIDIA 2-Way SLI Technology

Supports AMD 3-Way CrossFireX Technology

ROG Exclusive Features:

ROG RAMCache II

ROG GameFirst IV

ROG CPU-Z

ROG Overwolf

ROG Clonedrive

Special Features:

Performance Optimization

5-Way Optimization

- Whole system optimization with a single click! Perfectly consolidates better CPU performance, power saving, digital power control, system cooling and app usages.

Digi+VRM

EPU

- EPU

TPU

- Auto Tuning, TPU, GPU Boost

Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control

Turbo APP featuring system performance tuning, network piority, and audio scene configuration for selected applications

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

ASUS Q-Design

- Q-Shield

- Q-LED (CPU, DRAM, VGA, Boot Device LED)

- Q-Slot

- Q-DIMM

Gamer's Guardian

- SafeSlot

- DIGI+ VRM

- DRAM Overcurrent Protection

- ESD Guards on LAN, Audio and USB ports

- Highly Durable Components

- Stainless Steel Back I/O

ASUS Exclusive Features

- AURA Lighting Control

- 3D Printing Friendly design

- AI Suite 3

- AI Charger

BIOS:

128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:

WfM2.0, DMI3.0, WOL by PME, PXE

Support DVD:

Drivers

ASUS Utilities

EZ Update

Anti-virus software (OEM version)

Operating System Support:

Windows 10 64-bit
