SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,VGA (D-Sub),6 x USB 2.0,Disply Port,HDMI 2.0

Battery Included: No

Brand Name: Asus

Chipset: AMD B550

Chipset Manufacturer: AMD

High-concerned chemical: None

Maximum Ram Capacity: 128 GB

Number of PCI: 1

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 4.0

Package: No

Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 3000 Series-R9,AMD Ryzen 5000 Series-R9,AMD Ryzen 4000 Series-R7,AMD Ryzen 3000 Series-R7,AMD Ryzen 5000 Series-R7,AMD Ryzen 3000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5

RAID Supported: No

Socket Type: AM4

Special Features: Cooling Armor

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Usage Scenario: Gaming,Audio & Video,Office

With CPU: No

Motherboard Chipset

Integrated Chip Audio/Network Card

Main Chipset AMD B550

Chipset Description Uses AMD B550 Chipset

Graphics Chip CPU Integrated Graphics Chip (requires CPU support)

Audio Chip Integrated Realtek ALC887/897 8-channel audio chip

Network Chip Onboard Realtek 1GbE Network Card

Processor Specifications

CPU Type AMD Ryzen 3000/4000G/5000/5000G Series Processors (excluding R5 3400G/R3 3200G)

CPU Socket Socket AM4

Memory Specifications

Memory Type 4×DDR4 DIMM

Maximum Memory Capacity 128GB

Memory Description Supports dual-channel DDR4 4600(OC)/4400(OC)/4333(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133MHz memory

Storage Expansion

PCI-E Standard PCI-E 4.0

PCI-E X16 Slot 1

PCI-E X1 Slot 2

Storage Interface 2×M.2 interfaces, 4×SATA III interfaces

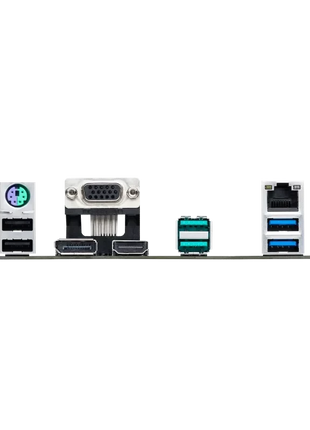

I/O Interface

USB Ports 2×USB3.2 Gen2 ports (rear)

2×USB3.2 Gen1 ports (rear)

2×USB2.0 ports (rear)

2×USB3.2 Gen1 ports (internal)

4×USB2.0 ports (internal)

Video Ports 1×HDMI 2.1 port, 1×Display Port 1.2 port, 1×VGA port

Power Interface 1×8-pin, 1×24-pin power connector

Other Interfaces 1×PS/2 keyboard/mouse combo port, 1×RJ45 network port, 3×audio ports

Form Factor

Motherboard Form Factor Micro ATX

Dimensions 24.4×24.4cm
