Descrizione

SPECIFICATIONS

Application: Desktop

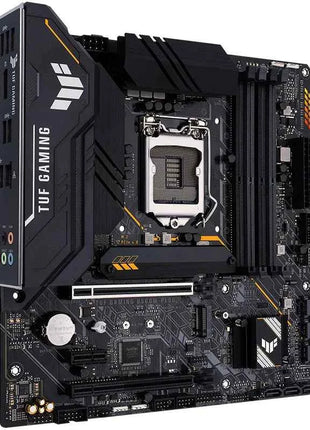

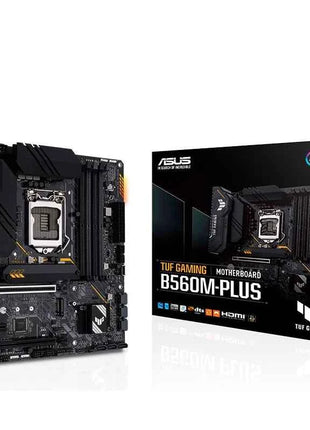

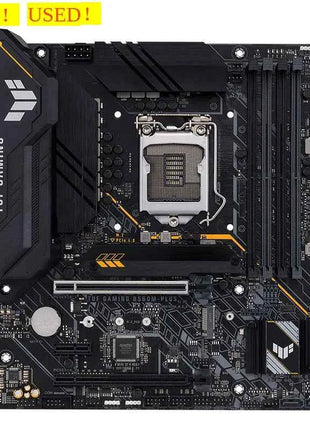

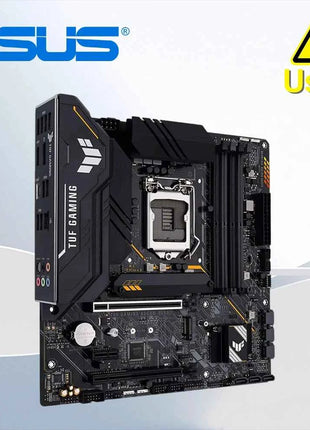

Asus Model: TUF GAMING B560M-PLUS

Back I/O Ports: 1x RJ45,5 x Audio Jacks

Battery Included: No

Brand Name: Asus

Chipset: Intel B560

Chipset Manufacturer: Intel

Form Factor: Micro-ATX

High-concerned chemical: None

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 2

Number of PCI: 2

Number of PCIe x 16: 2

Number of SATA Ports: 6

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: No

Processor compatibility: 11th Intel Core i9,11th Intel Core i7,11th Intel Core i3,11th Intel Core i5

RAID Supported: No

Socket Type: LGA1200

Special Features: HiFi

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0,USB 3.1 Gen1,USB 3.1 Gen2,USB 3.2 Gen1

Supports M.2 SSD: 2242,2280,2260

Usage Scenario: Enthusiast & Overclocking,Gaming,Office,3-D Modeling

With CPU: No

Intel ® LGA 1200 Slot: Supports 11th Generation Intel ® CoRE ™ processor

Monster level power supply solution: 8+1 power module, 6-layer PCB, ProCool high-strength solid power interface and high-quality capacitors provide higher power supply efficiency

Comprehensive heat dissipation solution: VRM heat dissipation fins, flexible M.2 heat dissipation fins, PCH heat sink, hybrid fan pin and Fan Xpert 2+intelligent fan control

Esports Agent Connection: PCIe 4.0, Realtek 2.5Gb wired network card, back USB 3.2 Gen 2, USB 3.2 Gen 1 Type-C ® Front interface and support for lightning ™ four

Esports Agent Network: Realtek 2.5 Gb wired network card, TUF LANGuard Network Security Protection and TurboLAN Network Acceleration

Bidirectional AI denoising: Designed based on a large deep learning database, this utility isolates human voices from interfering noise when a sound source is identified. By clicking a single button, background noise from both sides will be automatically eliminated

ASUS OptiMem II memory optimization technology: using unique memory optimization routing to improve signal integrity, reduce interference signals, enhance memory compatibility and overclocking space

model

TUF GAMING B560M-PLUS

Central Processing Unit

Support the adoption of Intel ® The 11th generation Intel LGA1200 specification slot ® CoRE ™/ 10th generation Intel ® CoRE ™, Galloping forward ®, celeron ® processor

Support Intel ® 14 nm processor

Support Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0**

*Please visit the ASUS official website w3.asus.com.cn to obtain the Intel processor support list.

**Intel ® The support for Turbo Boost Max 3.0 technology varies depending on the type of processor.

Chipset

Intel ® B560 high-speed chipset

Memory

DDR4 5000 (overclocking)/4800 (overclocking)/4600 (overclocking)/4400 (overclocking)/4266 (overclocking)/4000 (overclocking)/3733 (overclocking)/3600 (overclocking)/3466 (overclocking)/3333 (overclocking)/3200/2933/2800/2666/2400/2133 MHz Non ECC, Unbuffered memory*

Support dual channel memory architecture

Support Intel ® Extreme Memory Profile (XMP)

OptiMem II Memory Optimization Technology

*10th generation Intel ® CoRE ™ The i7/i9 processor natively supports 2933/2800/2666/2400/2133, while others will run at the maximum transfer rate of DDR4 2666MHz.

*11th generation Intel ® Native support for processor 3200/2933/2800/2666/2400/2133

*Please refer to https://w3.asus.com.cn Understand memory QVL (Qualified Supplier Support List), and the support for memory frequency depends on the CPU type.

Graphics card

*The graphics card specifications vary depending on the type of processor.

**11th/10th generation Intel ® Processor, supporting DisplayPort 1.4, with a maximum resolution of 4096 x 2304 @ 60Hz. Please visit www.intel.com for updated information.

***Only the 11th generation Intel ® CoRE ™ Processor, supports HDMI ™ 2.0, maximum resolution up to 4K@60Hz Other only support HDMI ™ 1.4, maximum resolution can reach 4K@30Hz Please visit www.intel.com for updated information.

Expansion slot

11th and 10th generation Intel ® processor

1 x PCIe 4.0/3.0 x16 slots*

-11th generation Intel ® The processor supports PCIe 4.0 x16

-10th generation Intel ® The processor supports PCIe 3.0 x16

Intel ® B560 chip

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slot

Storage device interface

Supports 2 x M.2 slots and 6 x SATA 6Gb/s interfaces

11th generation Intel ® processor

M. Slot 2 (Key M), 2242/2260/2280 type storage devices

-Only 11th generation Intel ® CoRE ™ The processor supports PCle 4.0 x4 mode. If other processors are used, this slot will be closed.

Intel ® B560 chip

M. Slot 2 (Key M), 2242/2260/2280 type storage devices (supporting PCIe 3.0 x4&SATA modes)*

6 x SATA 6Gb/s interface

Enable Intel ® Aoteng ™ Memory (hybrid storage device) must be installed in the PCH attached slot with Intel ® Rapid Storage Technology.

*M.2.2 slot shares bandwidth with SATA_2. When the M.2.2 slot is running in SATA mode, SATA_2 will be turned off.

USB interface

Rear panel USB: 9 interfaces in total

2 x USB 3.2 Gen 2 interfaces (2 x Type-A)

3 x USB 3.2 Gen 1 interfaces (2 x Type-A+1 x USB Type-C) ®)

4 x USB 2.0 interfaces (4 x Type-A)

1 x USB 3.2 Gen Gen 1 connection port supports USB Type-C ®)

1 x USB 3.2 Gen 1 port expandable with 2 USB 3.2 Gen 1 interfaces

2 x USB 2.0 ports expandable with 4 USB 2.0 interfaces

Sound effects

-Supports: Audio interface detection (Jack detection), Multi Streaming independent output, Front panel audio jack swapping function (Jack multitasking)

-Supports playback up to 24 Bit/192kHz

Audio function

-Audio segmentation line

-The rear side is equipped with S/PDIF fiber optic digital output interface

-High quality Japanese audio capacitors

-Layered design of left and right channels

Rear panel I/O device interface

2 x USB 3.2 Gen 2 interfaces (2 x Type-A)

3 x USB 3.2 Gen 1 interfaces (2 x Type-A, 1 x USB Type-C) ®)

4 x USB 2.0 interfaces (4 x Type-A)

1 x DisplayPort

1 x HDMI ™ Interface

1 x Realtek 2.5Gb Ethernet port

5 x audio jack

1 X-ray fiber S/PDIF output interface

Built in I/O device interface

Fan and heat dissipation related

1 x 4-pin CPU fan connector

1 x 4-pin CPU OPT fan pin

2 x 4-pin chassis fan pins

Power supply related

1 x 24 pin main power socket

1 x 8-pin+12V power socket

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s interface

USB

1 x USB 3.2 Gen 1 connection port (supports USB Type-C) ®)

1 x USB 3.2 Gen 1 port expandable with 2 USB 3.2 Gen 1 interfaces

2 x USB 2.0 ports expandable with 4 USB 2.0 interfaces

Other categories

2 x AURA second-generation programmable pins

2 x AURA RGB pins

1 x Clear CMOS pin

1 x COM port connector

1 x Front Panel Audio Pin (AAFP)

1 x 20-3 pin system panel pins support chassis open warning function

1 x lightning ™ Pin connection

Unique Features

ASUS TUF Protection

-Digital power supply design paired with DrMOS

-Enhanced DRAM overcurrent protection

-ESD protection

- TUF LANGuard

-Overvoltage protection

- SafeSlot Core+

-Stainless steel moisture-proof I/O interface

ASUS Q-Design

- M.2 Q-Latch

- Q-DIMM

-Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]

- Q-Slot

ASUS cooling solution

-Humanized M.2 heat sink

-VRM heat sink design

ASUS EZ DIY

- ProCool

-Pre installed I/O board

AURA Sync

-AURA RGB Pin

-Second generation programmable ARGB pin

software function

ASUS specific software:

Armoury Crate

- AURA Creator

- AURA Sync

-Bidirectional AI noise reduction

AI Suite 3

-Performance and energy-saving application software

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 2+

- EZ update

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

DTS game custom sound effects

Norton antivirus software (trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

-ASUS UEFI BIOS EZ mode

BIOS function

128 Mb Flash ROM, UEFI AMI BIOS

management function

WOL by PME, PXE

Packaging Content

Cable laying

2 x SATA 6Gb/s ribbon cable

Other categories

1 x M.2 rubber cushion bag

1 x M.2 SSD screw kit

1 x TUF GAMING Stickers

Install media

1 x supports DVD discs

Related documents

1 x TUF certification card

1 x User Manual

Motherboard size

MicroATX type

24.4cm x 24.4cm
