SPECIFICATIONS

Accuracy: ±10 mm* (*plus use-dependent deviation)

Additional function: Dual Power (10.8 V/4 x 1.5 V LR6 AA);

Battery Included: No

Bosch Radar Technology: yes

Brand Name: Bosch

Certification: CE

DIY Supplies: Electrical

Detectable objects1: magnetic metals (e.g. iron)

Detectable objects2: non-magnetic metals (e.g. copper)

Detectable objects3: live cables

Detectable objects4: non-live cables

Detectable objects5: water-filled plastic pipes

Detectable objects6: wooden substructures

Detection depth,: 120 mm

Detection depth, magnetic metal, max.: 120 mm

Detection depth, non-magnetic metal: 60 mm

Detection depth, wooden substructures: 38 mm

High-concerned chemical: None

Material identification: Live cable

Max. detection depth: 120 mm

Model Number: D-tect120

Origin: Mainland China

Power Type: Battery-Powered

Power supply: 12 V Li-ion or 4 x 1.5 V LR6 (AA)

Wall types: Concrete, Drywall, Universal

With LCD Screen Or Not: Yes



Bosch D-tect 120 Professional Metal Detector Intuitive Radar Scanner  For Almost All Materials High-precision Wall Detector

Advantages

Intuitive radar scanner for almost all materials



• Spot measurement provides accurate detection on narrow surfaces

• Centre finder offers visual guidance, to clearly identify the precise location of the object's centre

• Dual Power Source allows for use with a 12 V Li-ion battery or with standard alkaline batteries

The detector D-tect 120 Professional is an intuitive radar scanner developed for almost all materials. Spot measurement provides accurate detection on narrow surfaces, while the centre finder shows the precise location of an object's centre. Additionally, Dual Power Source technology allows for use with both a 12 V Li-ion battery or standard alkaline batteries.

It is suitable for a range of craftsmanship disciplines to locate pipes filled with water and cables as well as to avoid drilling mishaps when performing carpentry, plumbing, electrical, and HVAC applications.

The D-tect 120 Professional offers a simple user interface with three self-explanatory selection buttons for adjusting to various applications and it is able to detect objects at depths of up to 12 cm. Audio and visual signals notify the user when objects are detected in the wall.

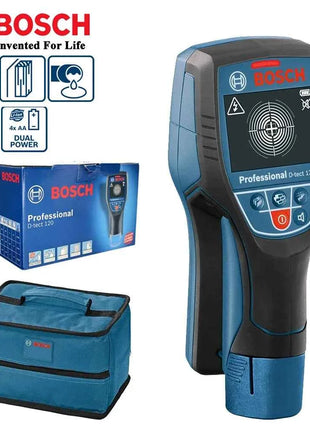

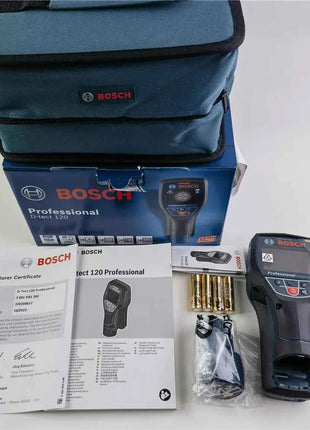

Product Include
D-tect 120*1 (Without Battery)
Soft bag *1
Manual *1
Original Box *

Technical data

Additional data
Bosch Radar Technology	yes
Max. detection depth	120mm
Detectable objects	magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, water-filled plastic pipes, wooden substructures
Detection depth, magnetic metal, max.	120mm
Detection depth, non-magnetic metal, max.	120mm
Detection depth, live cables, max.	60mm
Detection depth, wooden substructures, max.	38mm
Accuracy	± 10 mm* (*plus use-dependent deviation)
Views	Spot view
Wall types	Concrete, Drywall, Universal
Material identification	Live cable
Power supply	12 V Li-ion or 4 x 1.5 V LR6 (AA)
Automatic deactivation, approx.	5 minutes
Weight, approx.	0.5kg
Additional function	Dual Power (10.8 V/4 x 1.5 V LR6 AA); Centre finder with object direction indicator

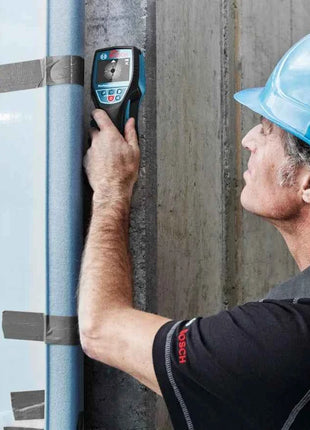

Application scenario display

Product Include
D-tect 120*1 (Without Battery)
Soft bag *1
Manual *1
Original Box *1
