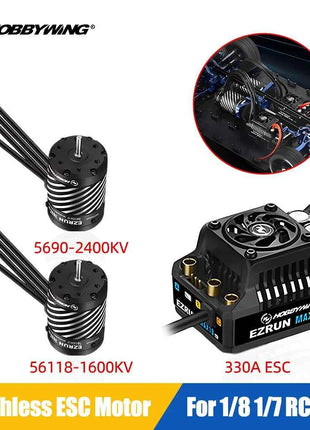

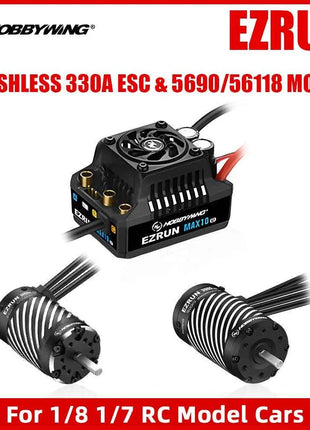

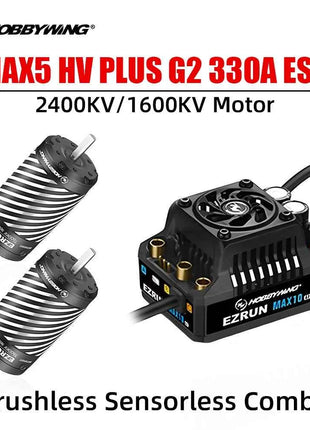

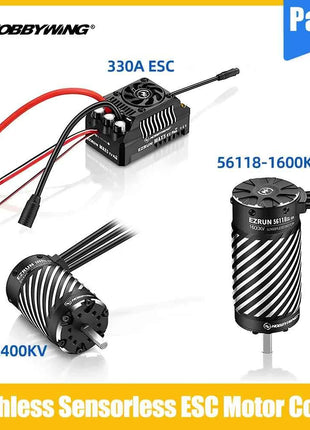

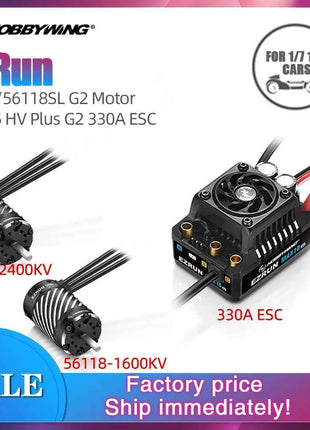

HOBBYWING EzRun ESC Motor Combo Brushless Sensorless 330A ESC 6V/7.4V/8.4V IP67 5690/56118 Motor For 1/8 1/7 RC Model Cars

Features:

1. Intelligent FreewheelingLow Temperature Rise andHigh Reliability.

2. The ESC Built-in Bluetooth for Direct Connectivitytothe Mobile APP.

3. The ESC has an IP67 protection rating, offering excellent waterproof and dustproof.

4. The ESC supoorts a max speed of 300,000 RPM (2-pole)easily meeting the demands of high-speed extreme applications.

5. When paired with tne Hobbywing EZRUN 5690/56118 SDG2 sensored motor, it can boosmaximum speed by approximately 18%.

6. Anexcellent choice for high-speed 1/7 and 1/8 scale RC vehicles.

Description:

The EzRun brushless combo The motor max speed of up to 78,000 RPM,can provide powerful power for 1/8, 1/7, and other vehicles used for extreme speed applications.

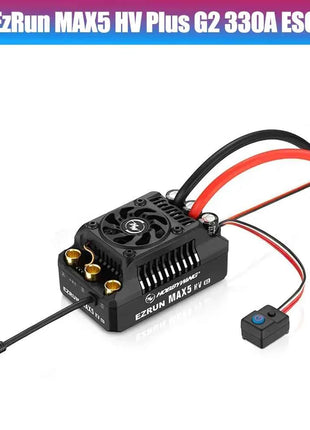

330A ESC Specifications:

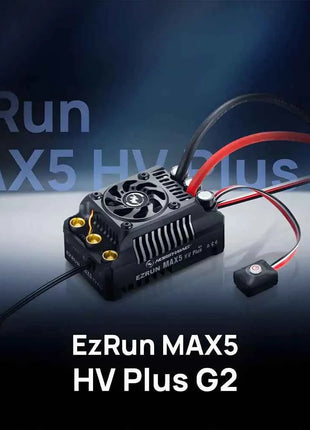

Item: EZRUN MAX5 HV PLUS G2

Scale: 1/5th、1/7th、1/8th

Brushed/Brushless: Brushless

Sensored/Sensorless: Sensored

Waterproof: IP67

Cont./PeakCurrent: 330A/2000A

Input Voltage: 6-12S Lipo

BEC Output: 6V/7.4V/8.4V adjustable

Cont. current: 8A (Switch regulatormode)

Output Connectors: 8.0MM Gold female plug

Size: 94.5*59.4*51.6mm

Weight: 450g(Including wires and plug)

Motors: Sensored Brushless motors & Sensorless Brushless motors

Vehicles: 1/8th 1/7th and other model cars for extreme speedapplications, 1/5th trucks/monsters trucks for violent applications

Applicable Motor: EZRUN 5690/56118SLG2

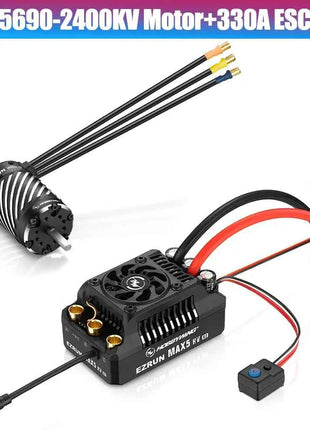

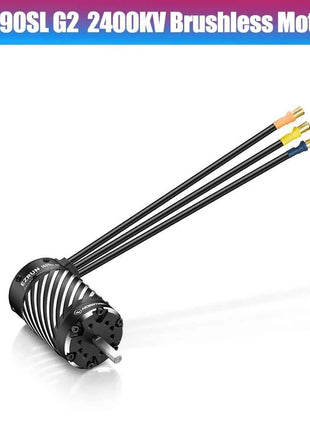

5690-2400kv Motor Specifications:

Item: EZRUN 5690SL G2

Scale: 1/7th、1/8th

Brushed/Brushless: Brushless

Sensored/Sensorless: Sensorless

Pole: 4

KV Rating: 2400KV

LiPo Cells: 6-8S

No-load Current(A): 16A

O.D.(mm): 56

Length (mm): 90.5

Shaft Diameter (mm): 8

Weight (g): 885g

Front Bearing: D22*D8*T7

Rear Bearing: D19*D8*T6

ESC: EZRUN MAX5 HV PLUS G2

Vehicles: 1/8th, 1/7th and other model cars for extreme speed applications

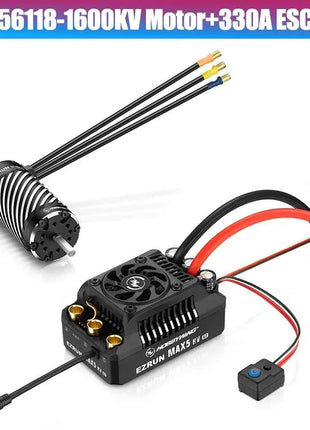

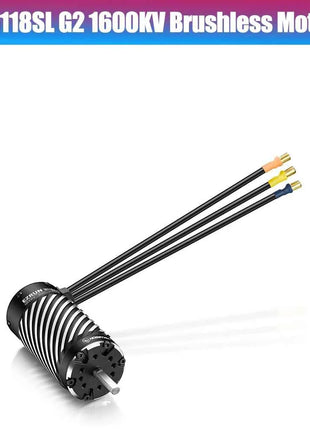

56118SL-1600kv Motor Specifications:

Item: EZRUN 56118SL G2

Scale: 1/7th、1/8th

Brushed/Brushless: Brushless

Sensored/Sensorless: Sensorless

Pole: 4

KV Rating: 1600KV

LiPo Cells: 6-12S

No-load Current(A): 16A

O.D.(mm): 56

Length (mm): 118

Shaft Diameter (mm): 8

Weight (g): 1270g

Front Bearing: D22*D8*T7

Rear Bearing: D19*D8*T6

ESC: EZRUN MAX5 HV PLUS G2

Vehicles: 1/8th, 1/7th and other model cars for extreme speed applications

Package contents:

As you choose.

Note:

Only the above package content, other products are not included.

1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
