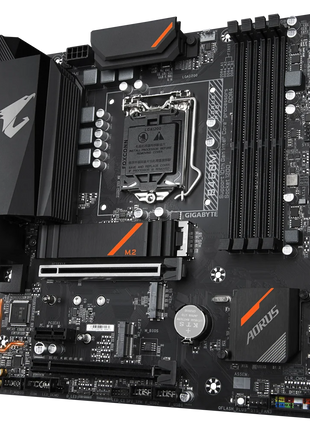

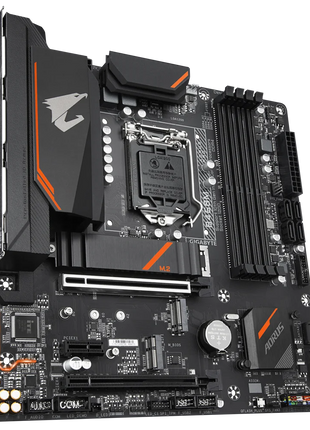

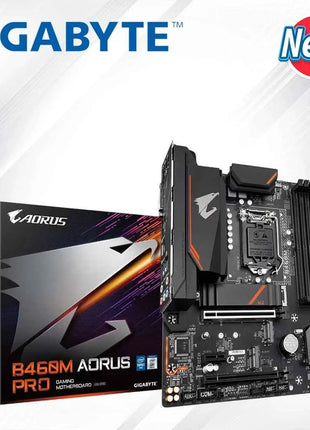

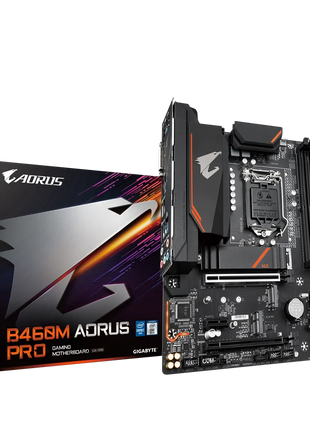

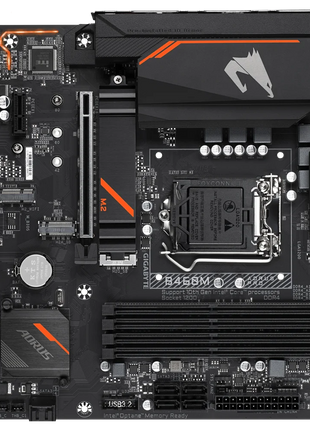

GA B460M AORUS PRO parameter

Motherboard chip

Integrated chip sound card/network card

Main chipset Intel B460

Chipset description Using Intel B460 chipset

Display chip CPU built-in display chip (requires CPU support)

Audio chip integrated Realtek ALC1200 7.1 channel audio chip

Network card chip onboard Intel GbE Gigabit network card

Processor specifications

CPU type Tenth generation Core/Pentium/Celeron

CPU socket LGA 1200

Memory specifications

Memory type 4×DDR4 DIMM

Maximum memory capacity 128GB

Memory description Support dual-channel DDR4 2933/2666/2400/2133MHz memory

Storage expansion

PCI-E standard PCI-E 3.0

PCI-E slot 2×PCI-E X16 graphics slot, 1×PCI-E X1 slot

Storage interface 2×M.2 interface, 6×SATA III interface

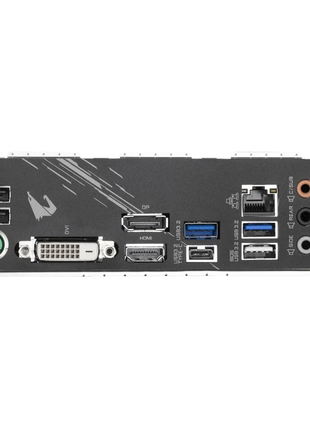

I/O interface

USB interface built in the chipset:

5×USB3.2 Gen1 interface (3 backplane + 2 built-in), 1×USB Type-C interface (backplane), 2×USB2.0/1.1 interface (2 backplane)

Built in chipset + USB2.0 Hub:

4×USB2.0/1.1 interface (4 built-in)

Video interface 1×Display Port interface, 1×DVI interface, 1×HDMI interface

Power connector One 8-pin, one 24-pin power connector

Other interfaces 1×PS/2 keyboard and mouse universal interface, 1×RJ45 network interface, 6×audio interface

Board type

Motherboard type Micro ATX type

Dimensions 24.4×24.4cm
