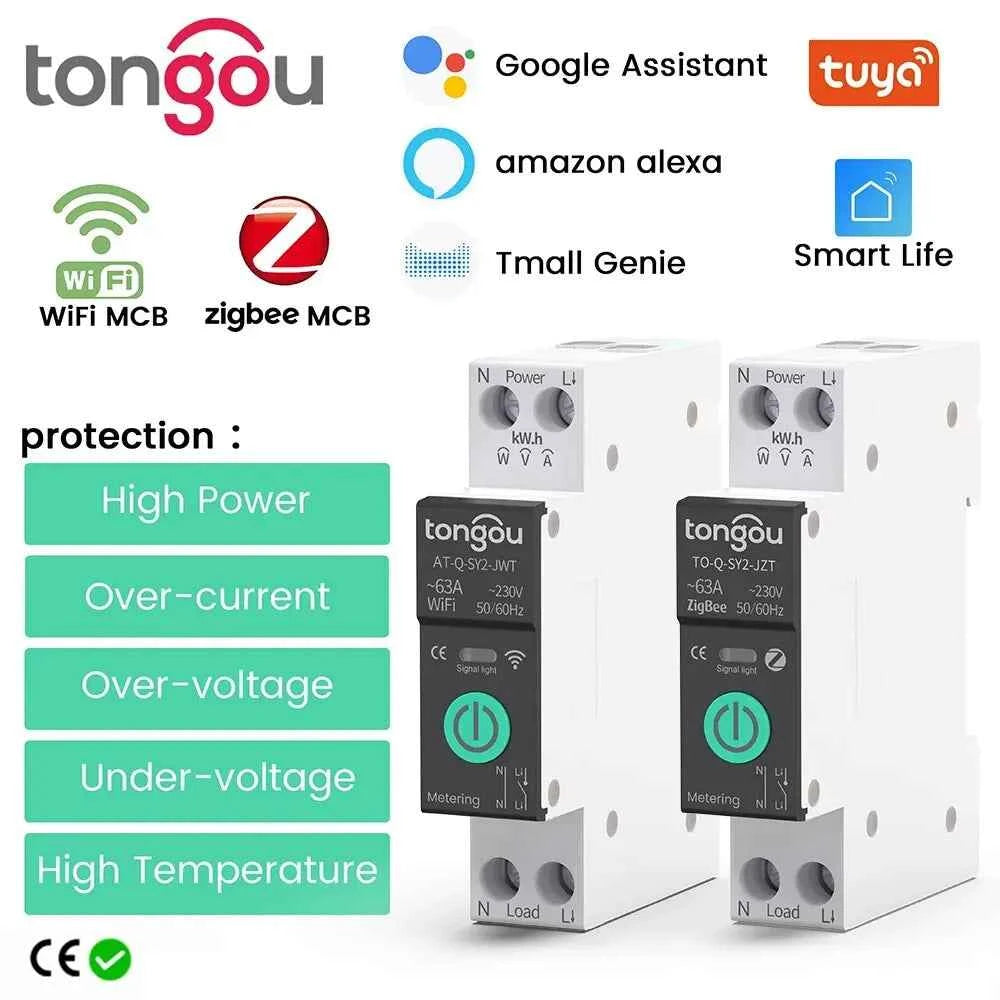

TO-Q-SY2 Din Rail Smart Switch pairing operation and function setting

WiFi 1-63A adjustable Function

Feature:

This item is a WiFi MCB Circuit Breaker.With Over-current Protection and Under-voltage Protection and Over-under-voltage Protection， The rated current is adjustable in APP, 1-63A

Remote control at anytime from anywhere by TUYA APP / Smart Life APP

Smart Life app on mobile ，no distance limit
Schedule / Timing, countdown, cycle timing
Voice control by Amazon Alexa echo dot / Google assistant

Parameter:

Working voltage : AC90-280V， 50 / 60Hz

Wireless type : Wi-Fi 2.4GHz

Support system : Android \ iOS

Rate Current : （1-63A）adjustable

Over-voltage protection : 220-265V

Unde-voltage protection ： 76-240V

Temperature protection: 40-100?

Over-Power protection ： 1-26KW

WIFI DIN RAIL

SWITCH MODEL

•


• OPEN ANEW ERA

• OF INTELLIGENCE

• Into Smart With Your DIY Idea

• 1 . Remote control / 2 . Timing / 3. Temperature protection

• 4 . Over-current protection

• 5 . Over-voltage and under-voltage prontection

• 6 . Real-time monitoring ofelectricity consumption

• New updates

• Of products

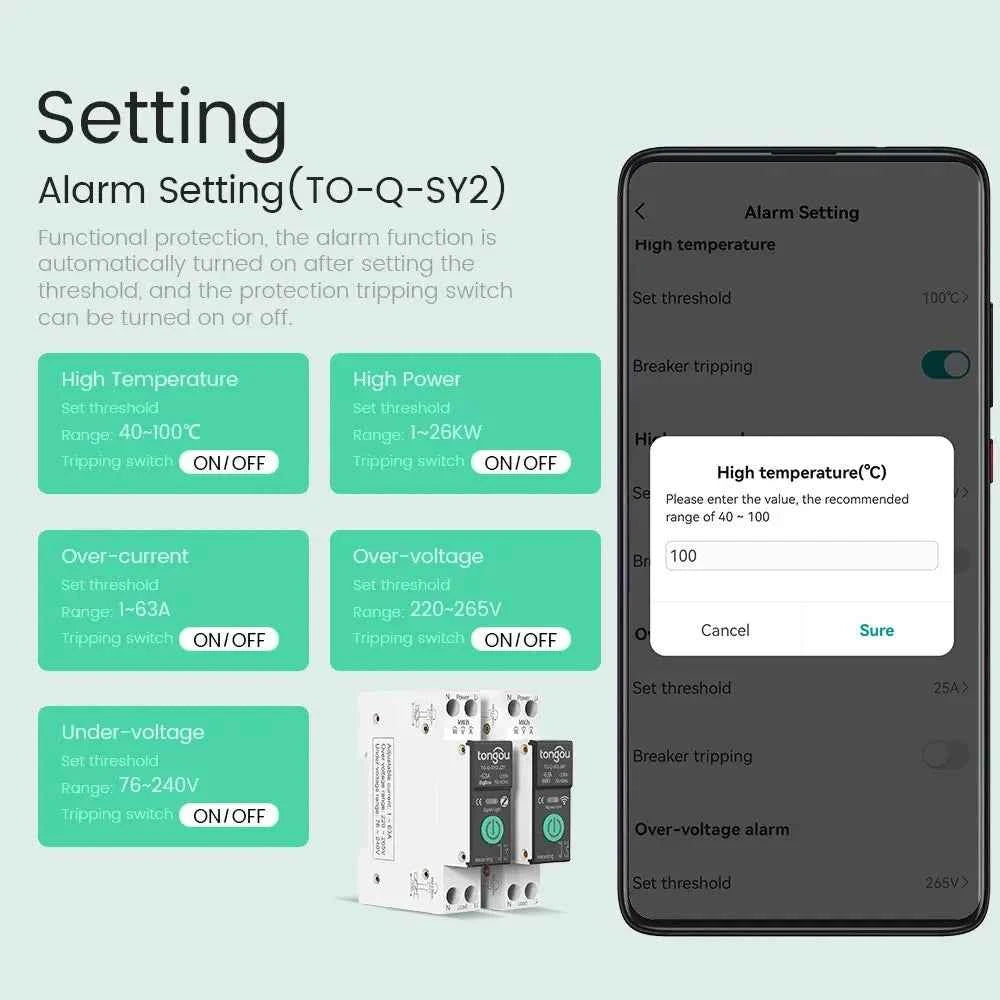

• Setting

• Alarm Setting (TO-Q-SY2)

  • Functional protection , the alarm fuction is automatically turned on after setting the theshold , and the protection trpping switch can be turned on or off .

• Safe and secure choice

• Protection against over-temperature and over-load

• over-voltage and under-voltage

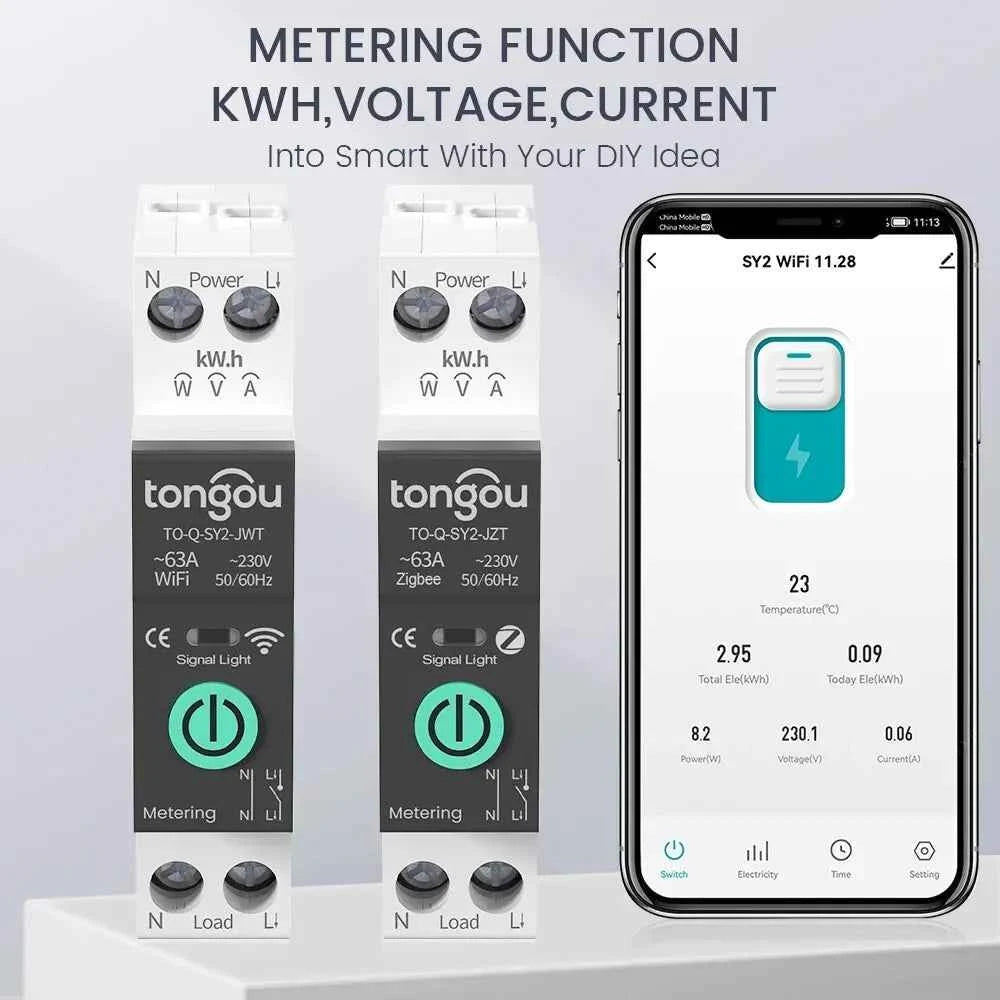

• METERING FUNCTIONKWH

• VOLTAGE , CURRENT

• Into Smart With Your DIY Idea

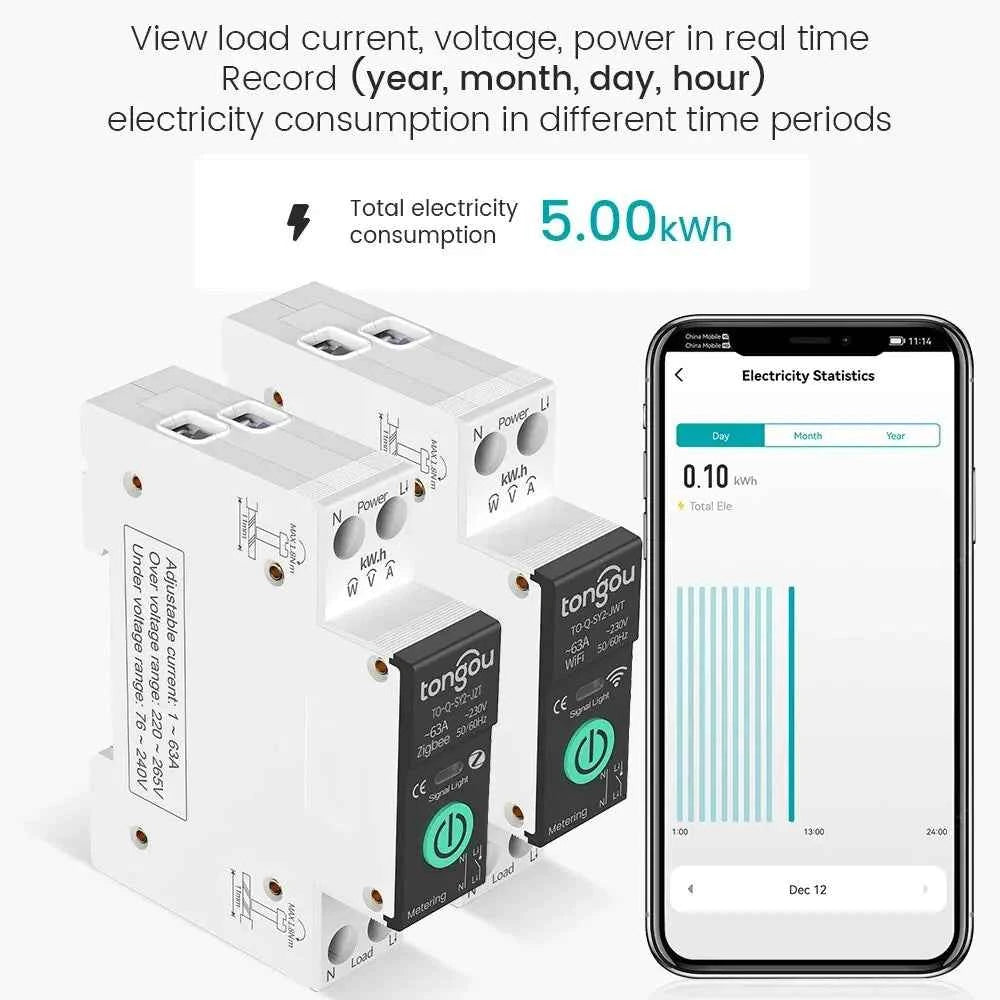

• View load current ， voltage , power in real time

• Record (year , month , day , hour)

• electicity consumption in different time periods

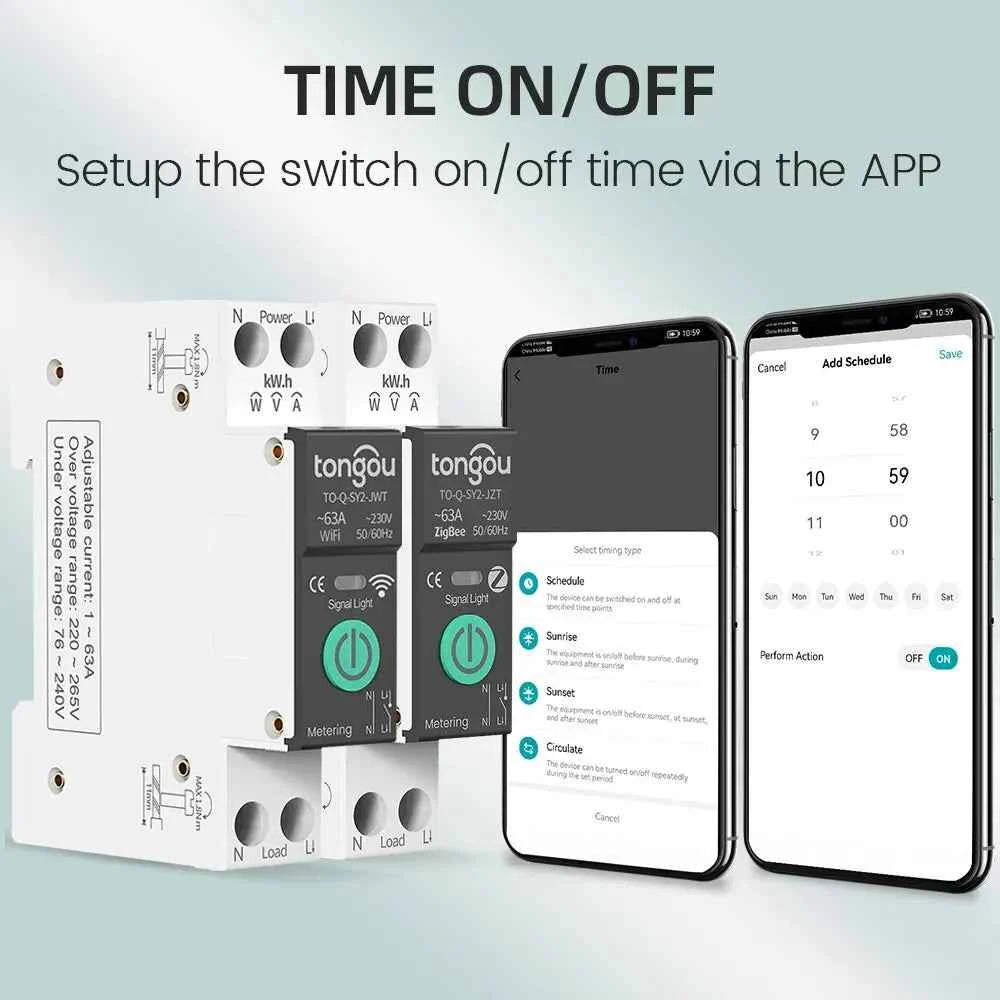

• TIME ON / OFF

• Setup the switch on / off time via the APP

• Three Timing Modes

• (Timing Mode / Countdown Mode / Loop Timing)

• Timing Mode

  Before going home from get off work...

  18:30 Turn on the lights.

  Countdown Mode

  after falling asleep...

  turn off the lights after 10 minutes.

  Loop Timing

  Before waking up / after going to work ...

  06:00 Turn on the lights. / 08:00 Lights off .

•

• "Hi Google,turn off the light."

• "Okay"

• Voice Controls

  Voice linkage

  Compatible with Amazon Alexa Google Home.

  What do you want to control ? just say it .

• 35MM STANDARDIZED MOUNTING

• RAILSEASY INSTALLATION

•


• Tight clips snap the rails to use a more

• secure and worry-free

• Product Details

• Benefit Your Life

•


• Touch handle

• Sleek design for more comfortable operation.

•


  Flame retardant material

•


  High temperature resistance and flame retardant , effectively improve the safety of use.

•


  Single channel wiring

•


  Tunnel-type wiring port for more secure wiring.

•


  Positioning clip

•


  Press to open easily , Simple installation.

•

• Network Pairing

• Benefit Your Life

•


• 1 . To connect the wire from the uppper of the WiFi DINRail Switch , the live wire connect to the Lpole , and neutral wire connect to the N pole , please make sure that the wiring is correct and strong WiFi signal.

•


  2 . Turn on the Blue tooth and WiFi of the mobile phone , open the APP,and then long press the"power"button,wait for about 5-10 secaonds , the LED indicator will flash blue light slowly .

•


  3 . Waiting for a while after graphics is displayer the app,or click the"+"in the upper righe corner , then choose the"Add Device"button to waitdaiscovering devi

•


  4 . Enter the wifi account password and click next step,wait for the switch to connect the netwoek .

•


  5.The switch is connected to the network

•


  6 . After the successful connection,the LED indicator will be changed from red slow flashing to red steady light

•


•


Zigbee1-63A adjustable Function

Notice :

A note on Zigbee gateway adaptability

1、Wired zigbee gateway: please ensure that the firmware version ≥ 1.19.2(WIFI)/1.0.13(Zigbee)

2, WIFI + Zigbee wireless gateway: please ensure that the firmware version ≥ 1.12.0 (WIFI) / 1.0.8 (Zigbee)

3, Mini multimode gateway (the most common version for home use): please ensure that the firmware version ≥ 1.4.8 (WIFI) / 2.4.1 (Zigbee)

4,、WIFI + Zigbee intelligent dual-link gateway: please ensure that the firmware version ≥ 1.8.2 (WIFI) / 1.0.13 (Zigbee)

5、Household multi-mode-function gateway (usually with audible and visual alarm function) and Smart Wired Gateway Pro (usually called Matter Gateway), they do not support temperature and current regulation modules

Zigbee version requires a zigbee hub/Gateway for remote control

This product adopts the emerging zigbee technology and professional manufacturing process

Wiring : Power must enter from the top and must be a live line + neutral (L+N)

Feature:

Remote control at anytime from anywhere by TUYA APP / Smart Life APP

Schedule / Timing, countdown, cycle timing
Voice control by Amazon Alexa echo dot / Google assistant

Parameter:

This item is a ZigBee MCB Circuit Breaker.With Over-current Protection and Under-voltage Protection and Over-under-voltage Protection， The rated current is adjustable in APP, 1-63A

Working voltage : AC90-280V， 50 / 60Hz

Support system : Android \ iOS

Rate Current : （1-63A） adjustable

Over-voltage protection : 220-265V

Unde-voltage protection ： 76-240V

Temperature protection: 40-100?

Over-Power protection ： 1-26KW

ZIGBEE DIN RAIL

SWITCH MODEL

•


• New product updates

A Whole Linkage of Your Smart

Connected Zigbee devices and other WiFi devices in the App is now forming a whole house linkage forthe smart hub

•


• • •



•


•

•


• Product Details

• Benefit Your Life

•


• Touch handle

• Sleek design for more comfortable operation.

•


  Flame retardant material

•


  High temperature resistance and flame retardant , effectively improve the safety of use .

•


  Single channel wiring

•


  Tunnel-type wiring port for more secure wiring.

•


  Positioning clip

•


  Press to open easily , Simple installation.

• Network Pairing

• Benefit Your Life

•


• 1 . To connect the wire from the uppper of the WiFi DINRail Switch , the live wire connect to the Lpole , and neutral wire connect to the N pole , please make sure that the wiring is correct and strong WiFi signal.

•


  2 . Turn on the Blue tooth and WiFi of the mobile phone , open the APP,and then long press the"power"button,wait for about 5-10 secaonds , the LED indicator will flash blue light slowly .

•


  3 . Waiting for a while after graphics is displayer the app,or click the"+"in the upper righe corner , then choose the"Add Device"button to waitdaiscovering devi

•


  4 . Enter the wifi account password and click next step,wait for the switch to connect the netwoek .

•


  5.The switch is connected to the network

•


  6 . After the successful connection,the LED indicator will be changed from red slow flashing to red steady light
