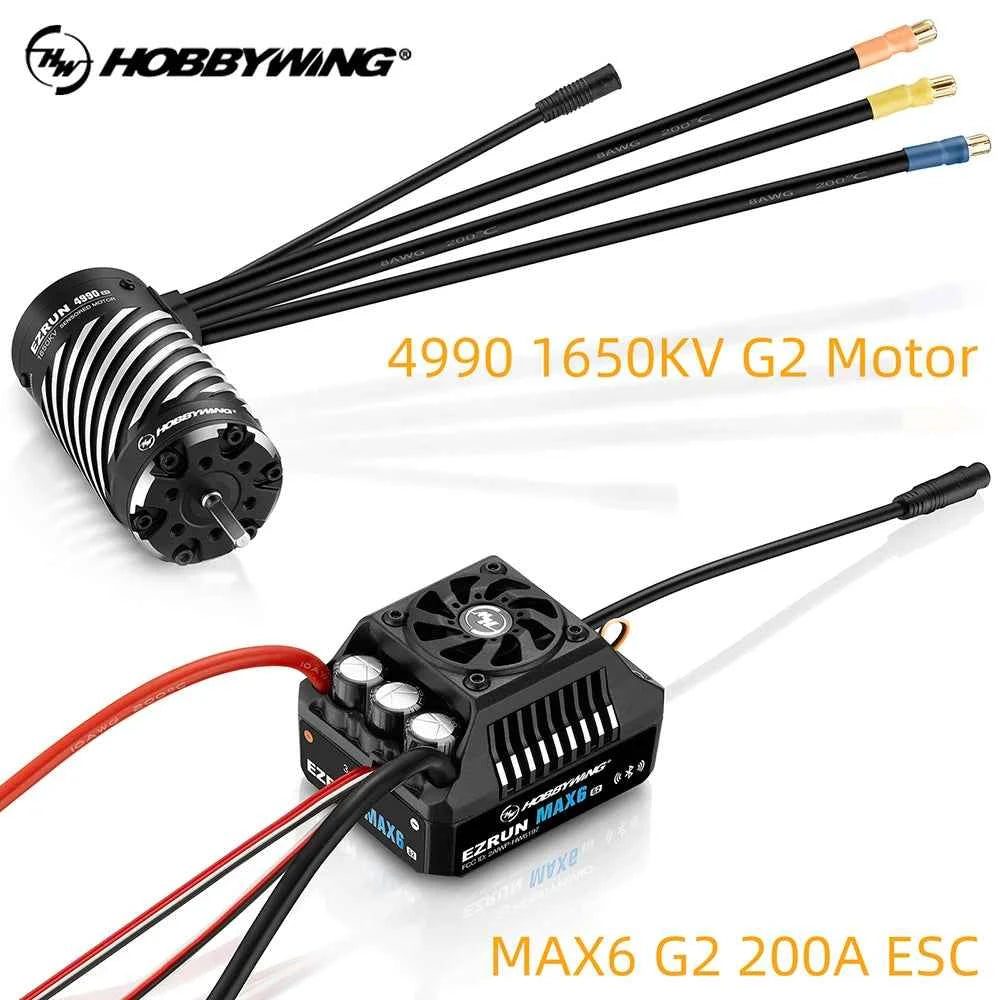

HOBBYWING EZRUN MAX6 G2 ESC 200A Waterproof Brushless Speed Controller 3-8S Lipo 4990 1650KV G2 Motor Combo Set for 1/6 1/7 1/8 RC Car Truck

Features:
ESC:
Sensored 8S ESC, Fully upgraded performance.
Intelligent freewheeling technology, strong drive, low temperatures.
Built-in Bluetooth, connect directly to mobile APP.
Build in Data Recording with Graph.
Intelligent fan start-stop function.
IP67 Waterproof, Applicable to All Weather Conditions.
Powerful BEC, maximum output current of up to 25A. The output voltages are switchable between 6V/7.4V/8.4V.
Perfect combination with EzRun 4990/5690 G2 motor.
Motor:
The motor casing adopts an innovatively spiral groove heat dissipation structure.
8S Sensored motor. Power On Demand.
Perfect match for EzRun MAX6 G2 ESC.
IP67 protection level, All weather sensor plug system.

Descriptions:
The 4990 1650KV G2 sensored motor comes with brushless 200A ESC. The high performance waterproof brushless motor is designed to provide both quality and performance. Waterproof function motor let your car challenge the muddy road. It is designed with high power and rotation speed to provide longer run time for 1/6, 1/7, 1/8 RC car truck.

Specifications:

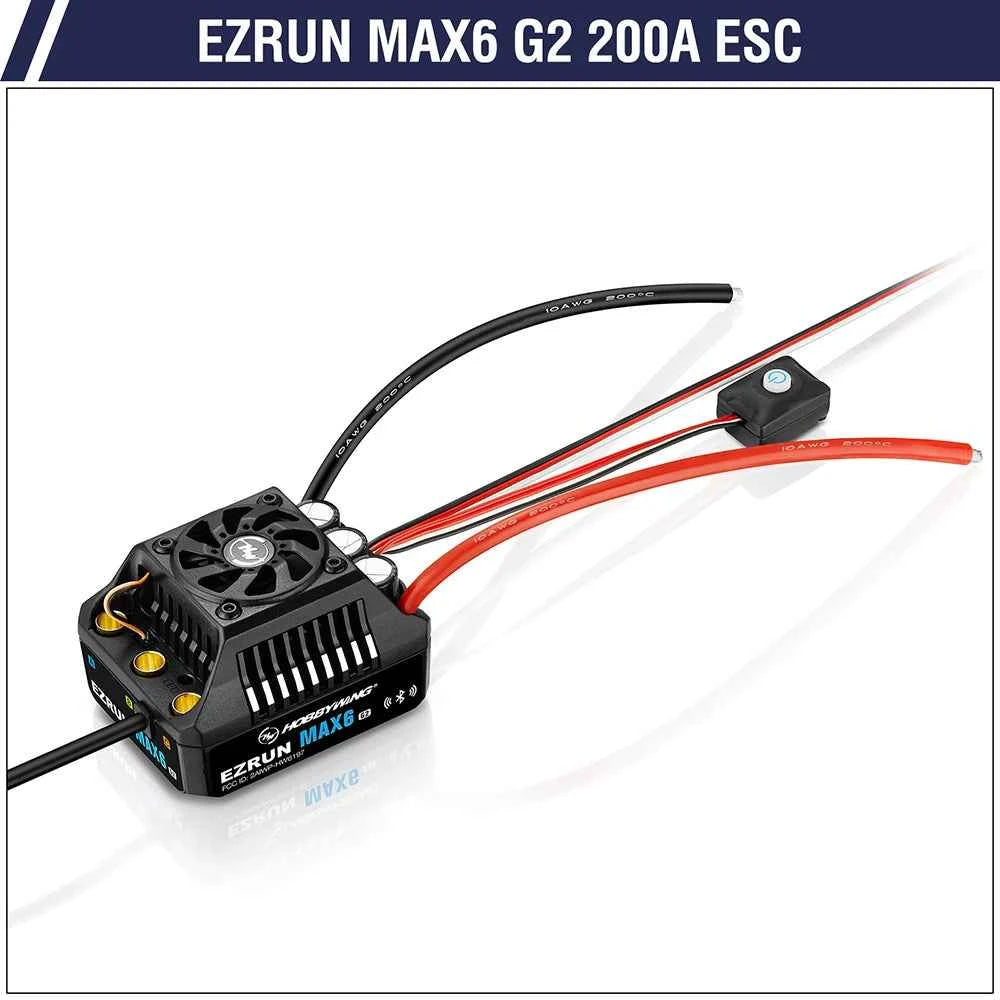

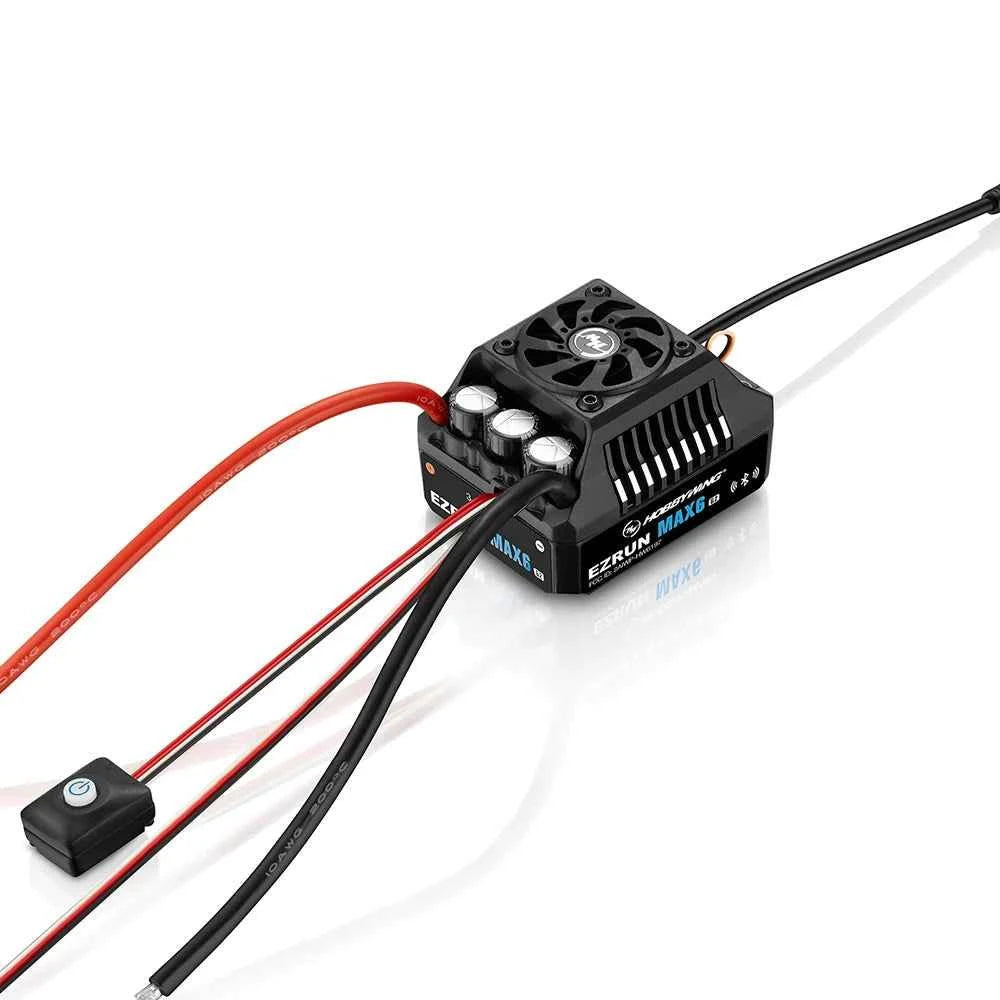

EzRun MAX6 G2 ESC
Item Number: 30105100
Scale: 1/6th, 1/7th
Type: Brushless Sensored
Waterproof: yes
Cont./Peak Current: 200A/1200A
Input Voltage: 3-8S Lipo
BEC output: Switch mode 6V/7.4V/8.4V @8A
Wires & Connectors:
Input Wires: Black-10AWG-200MMmm*1 Red-10AWG-200MMmm*1
Output Connectors: Connectors (Female)
ESC Programing via
SET Button on ESC: Not Support
LED Program Box: Not Support
LCD G2 Program box: Not Support
OTA Programmer: Not Support
Program Port: Built-in Bluetooth
Fan:
Size: 35x35x10mm
Output Wires: 5-8.4V
Input Connectors: Powered by BEC
Data Recording:
Extreme value: Support
Real-time data: Support
Historical data (graph): Support
Firmware:
Firmware online upgrade: Support
Size & Weight:
Size: 70*56*45.5mm
Weight: 245g(Input wires included)
Applications:
Motor: 4990, 5690 motor
Suitable RC car: 1/6th&1/7th On-road,Truck,Monster Truck
Vehicles:
For Losi 1/6 Super Baja Rey、Traxxas XRT、Traxxas X-MAXX
For ARRMA 1/7 Limitless、ARRMA 1/7 Fireteam、ARRMA 1/7 Mojave
For Cen 1/7 Reeper、HPI Baja 5B

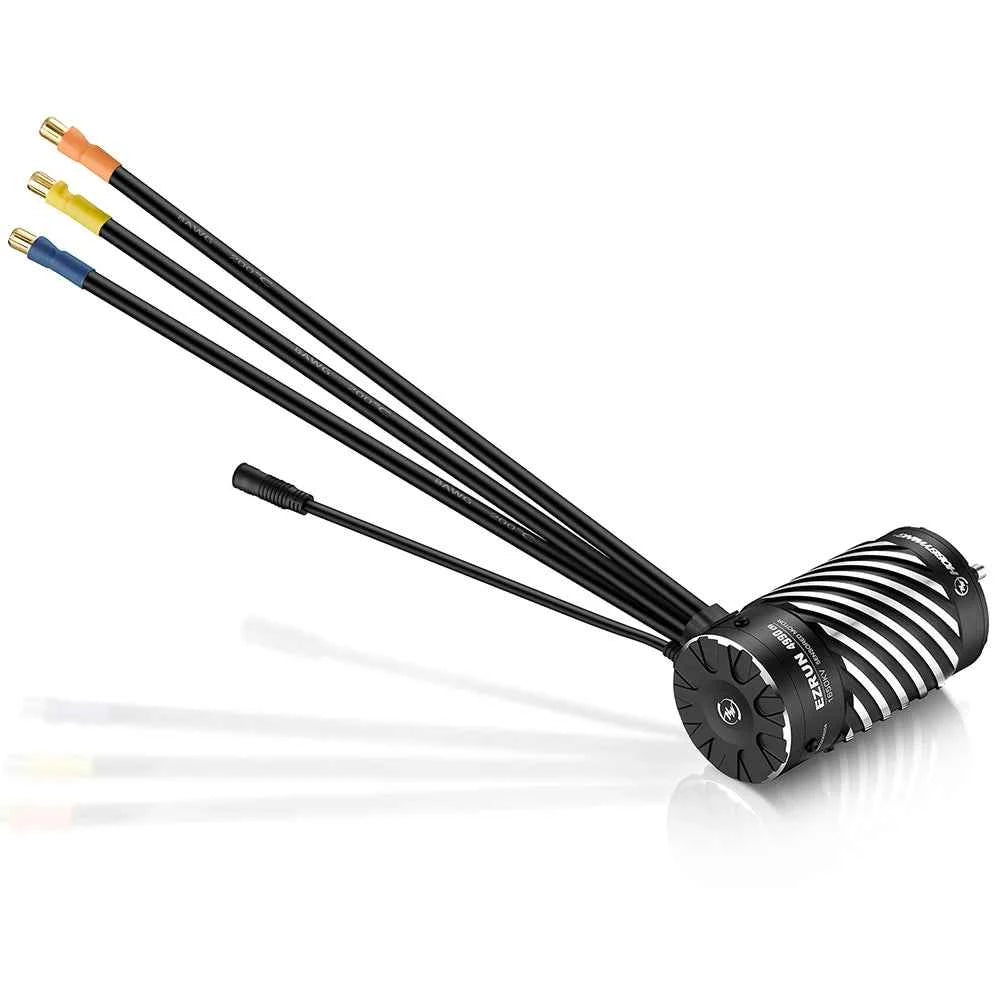

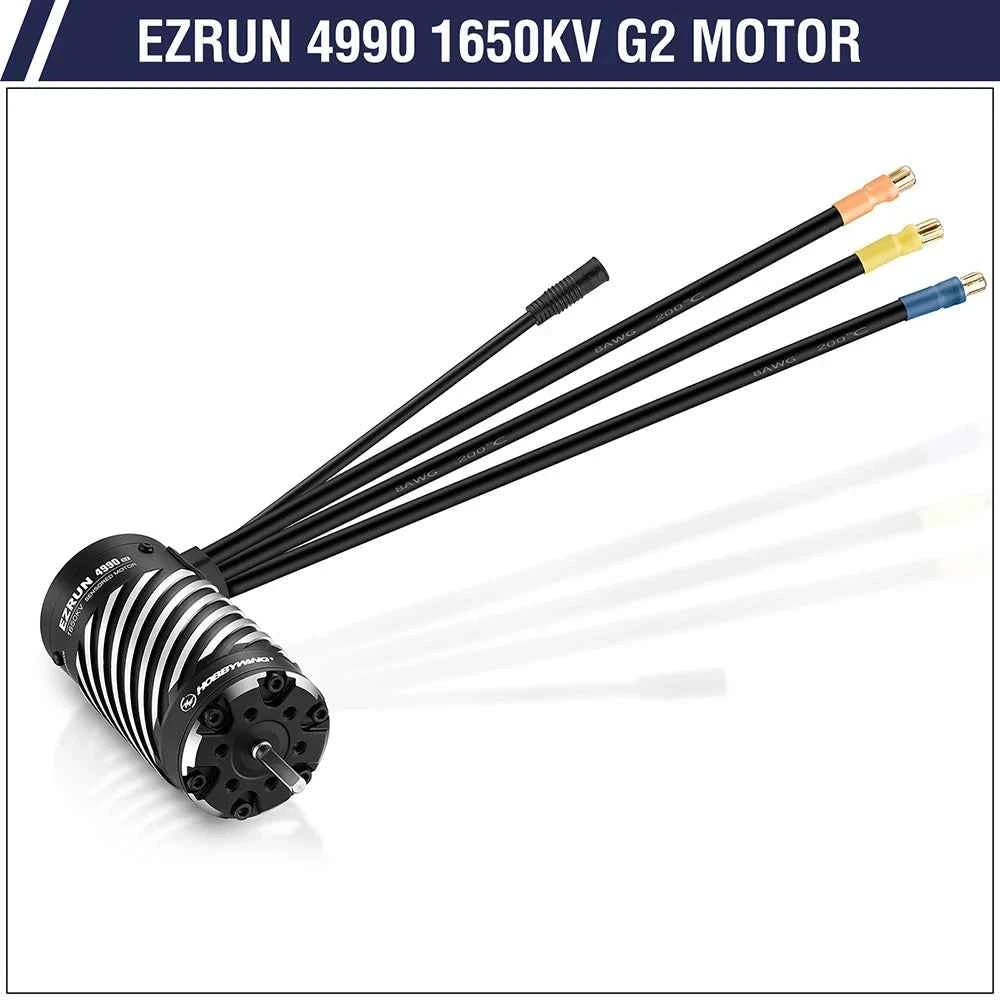

EZRUN 4990SD G2-1650KV Motor
Item Number: 30402450
Scale: 1/7th, 1/8th
Type: Brushless Sensored
Pole: 4
KV Rating:1650KV
LiPo Cells: 3-8S LIPO
No-load Current(A):7.0A

Size & Weight:
O.D.(mm): 49
Length (mm): 90
Shaft Diameter (mm): 5
Connectors (mm): 6.5mm (male)
Wire: Black-8AWG-250MMmm*3
Weight (g): 701g
Front Bearing: D19*D6*T6
Rear Bearing: D19*D6*T6

Other Parameters:
ESC: EZRUN MAX6 G2
Vehicles:
1/7th On-road,Short course truck,Truck
1/8th Heavy-duty Monster truck
Examples: For ARRMA LIMITLESS TRAXXAS
For XRT ARRMA Mojave EXB

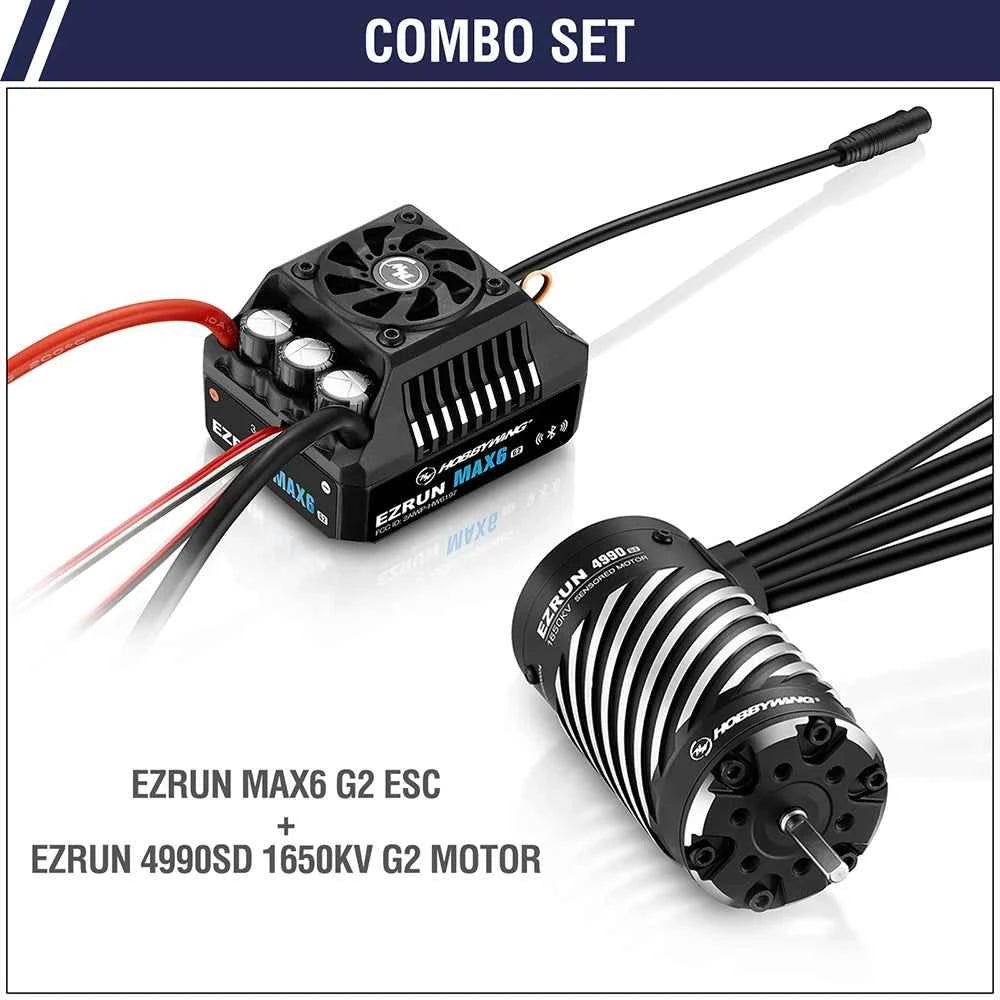

Package(optional):
1 * 4990 1650KV G2 Motor
1 * 200A ESC

Note:
Only the above package content, other products are not included.
