SPECIFICATIONS
Application: Desktop
Back I/O Ports: 1x RJ45,VGA (D-Sub),PS/2 Combo,2x USB 3.2/3.1 Gen 1
Battery Included: No
Brand Name: Asus
Chipset: G41
Chipset Manufacturer: Intel
High-concerned chemical: None
Maximum Ram Capacity: 8 GB
Number of PCI: 3
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: No
Processor compatibility: Intel Core Duo
RAID Supported: Yes
Socket Type: LGA 775
Special Features: None
Storage Interface Type: SATA 3
Support Memory Type: DDR3
Usage Scenario: Office
With CPU: No

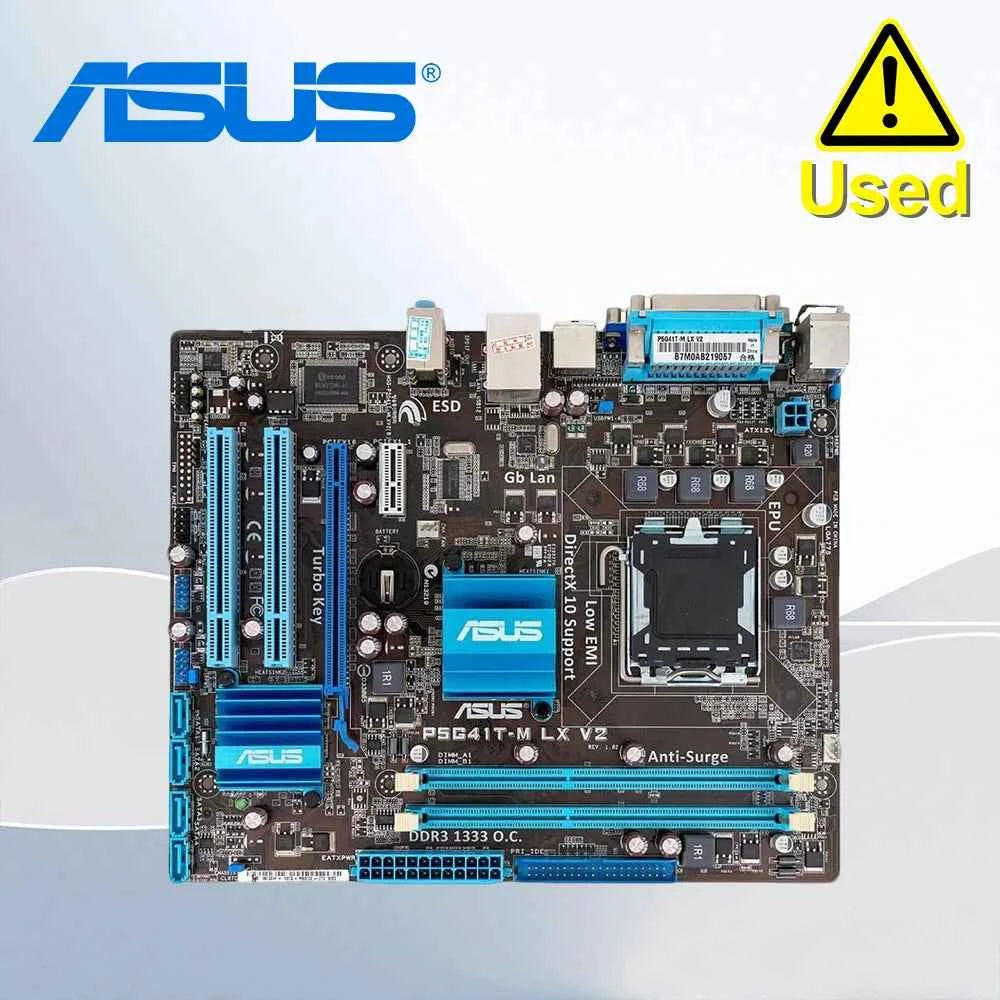

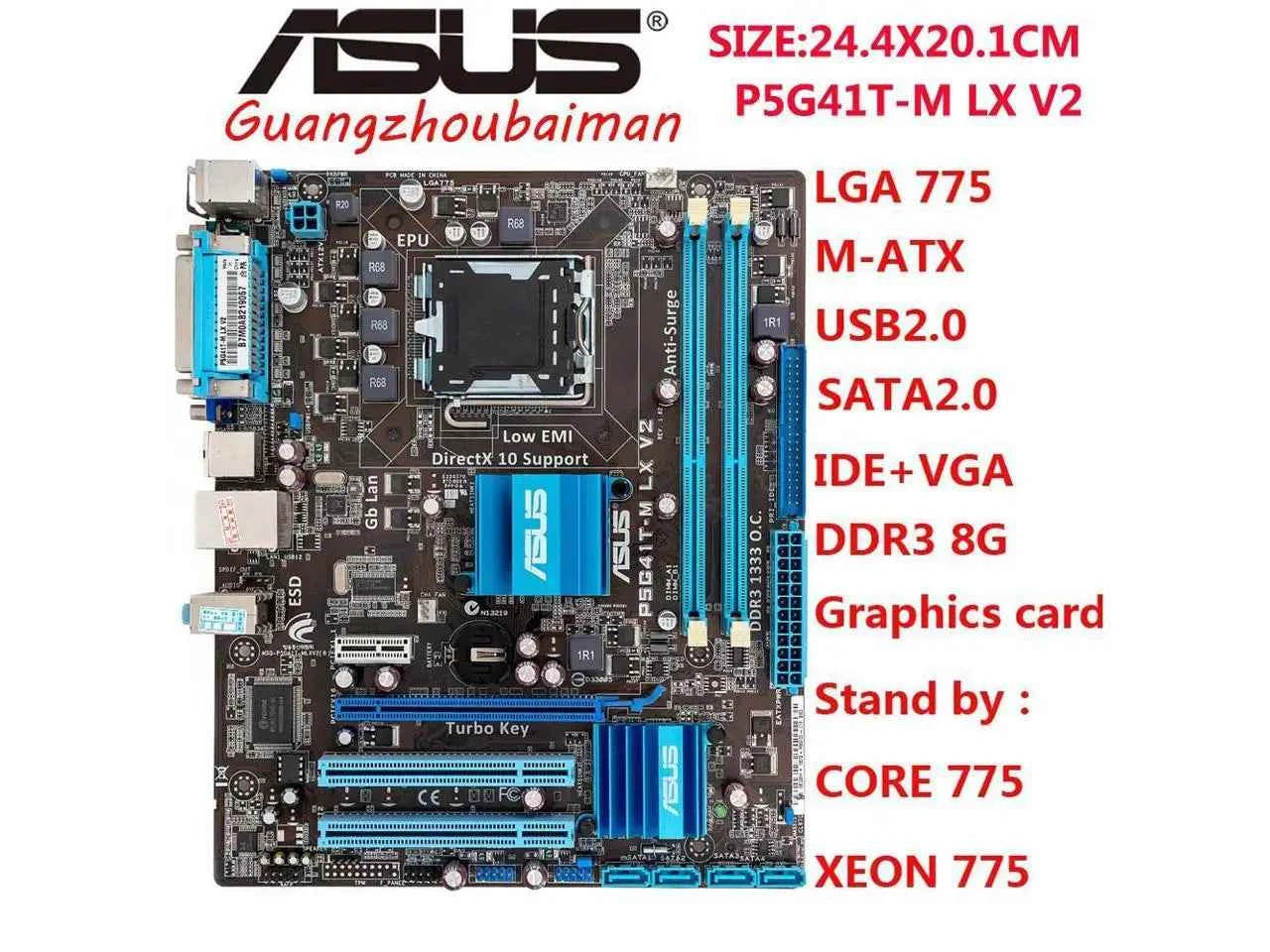

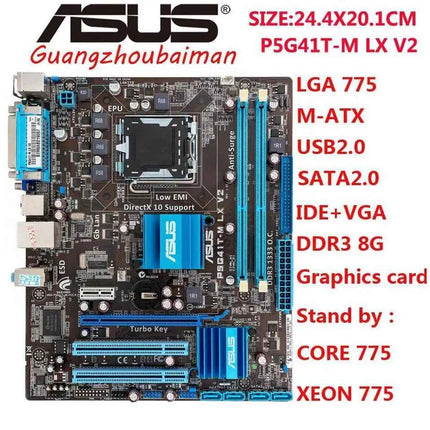

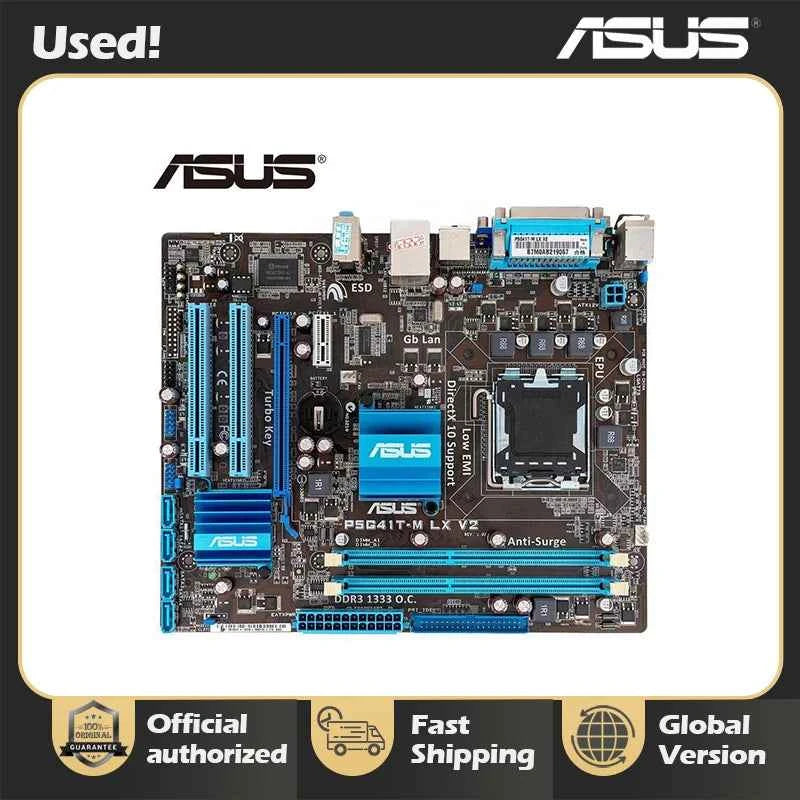

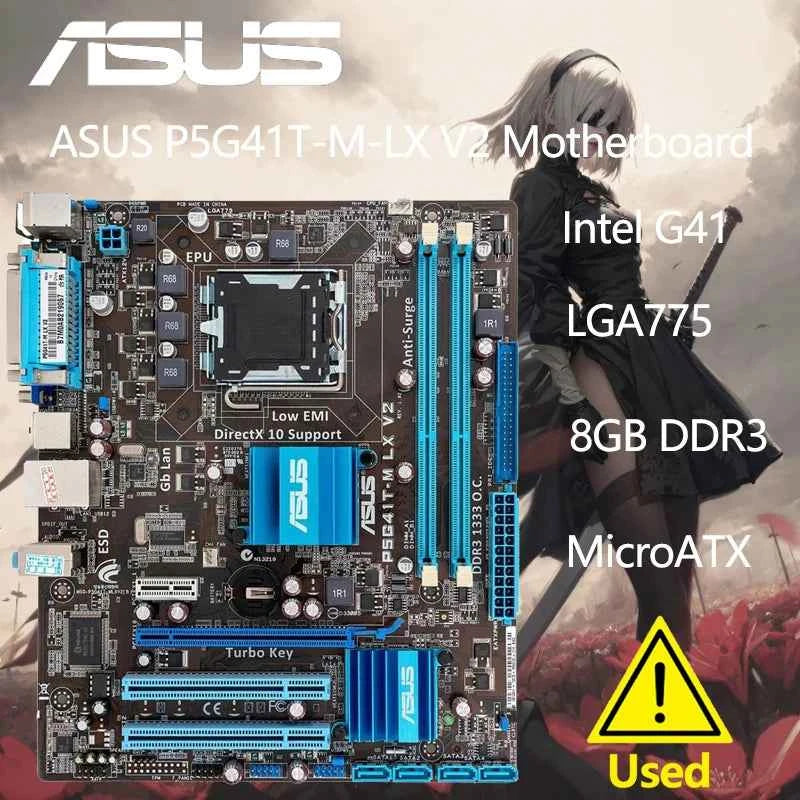

Manufacturer |
ASUS |
Manufacturer Part # |
P5G41T-M-LX-V2 |
Product Type |
System Board |
Form Factor |
Micro ATX |
CPU Socket Type |
LGA 775 |
Supported CPU(S) |
Intel Celeron Dual-Core Processor
Intel Celeron Processor
Intel Core2 Duo Desktop Processor
Intel Core2 Quad Processor
Intel Pentium Dual-Core Processor
|
Chipset |
Intel G41 Express |
South Bridge Chipset |
Intel ICH7 |
Number Of Memory Slot(S) |
2 |
Number Of Memory Channel(S) |
2 |
Supported Memory Standard(S) |
PC3-10600 (DDR3-1333)
PC3-6400 (DDR3-800)
PC3-8500 (DDR3-1066)
|
Maximum Installed Memory |
8 GB |
Expansion Slots |
PCI
PCI-E x1
PCI-E x16
|
Storage Controller |
SATA 3.0 Gbps |
On-Board Video Controller |
Intel Graphics Media Accelerator 4500 |
Audio Controller |
Realtek ALC887 |
Network |
Gigabit Ethernet |
Connectors/Ports |
Audio-In
Audio-Out
Chassis Fan Connector
CPU Fan Connector
Parallel
RJ-45
Serial
USB 1.1
USB 2.0
|
Connectors/Ports Details |

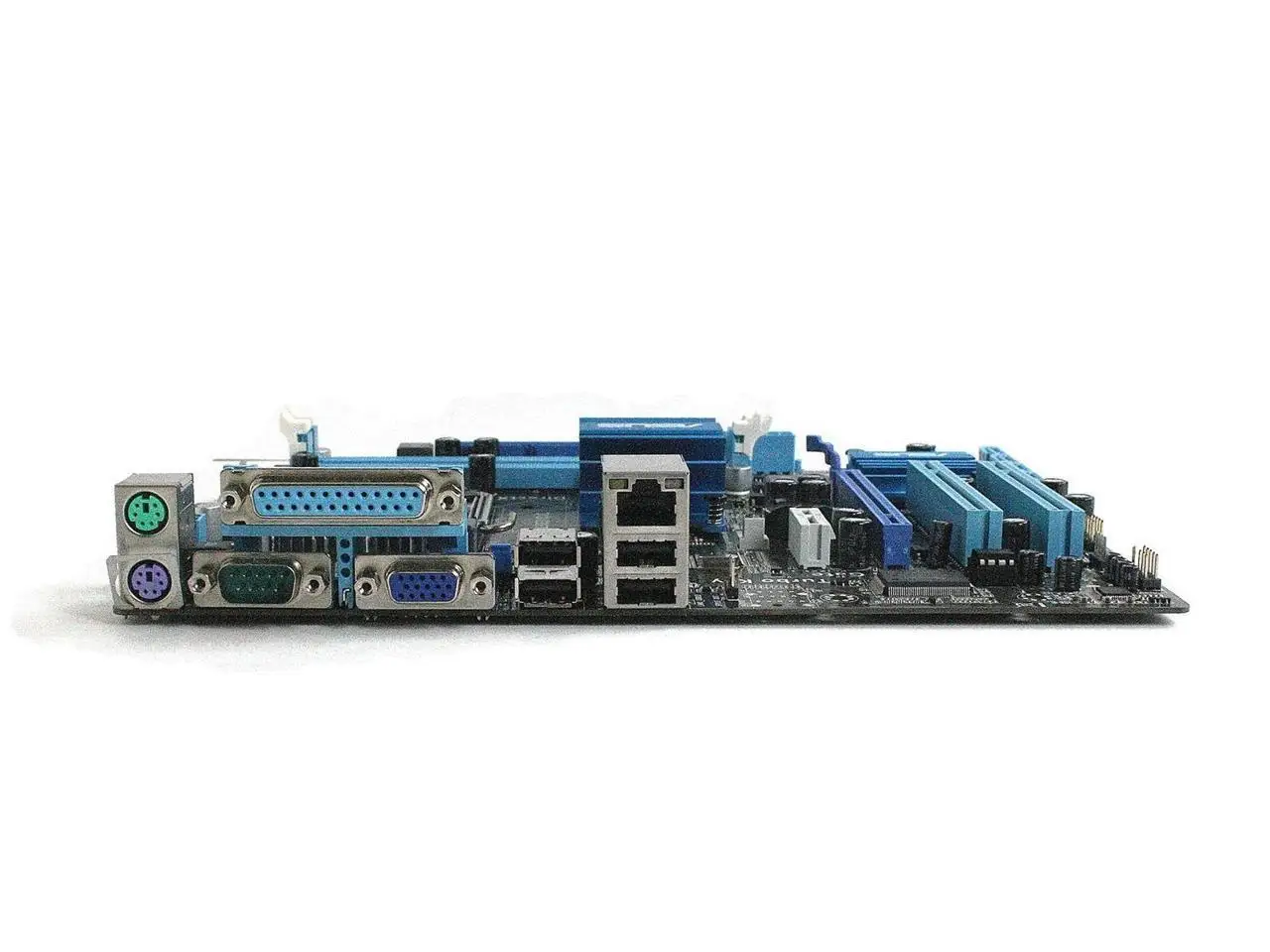

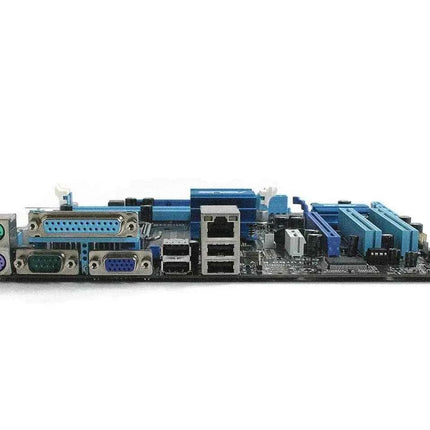

Back Panel I/O Ports
1 x D-Sub
1 x Parallel port
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x LAN(RJ45) port(s)
4 x USB 2.0/1.1
1 x COM port
3 x Audio jacks
Internal I/O Connectors
2 x USB connectors support additional 4 USB 2.0 ports
1 x IDE connector
4 x SATA connectors
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x High Definition front panel audio connector
1 x S/PDIF Out connector
1 x System Panel
1 x Internal Speaker connector
24-pin EATX power connector
4-pin ATX 12V Power connector
|
