Brand

Asus

Series

Asus Prime

Model

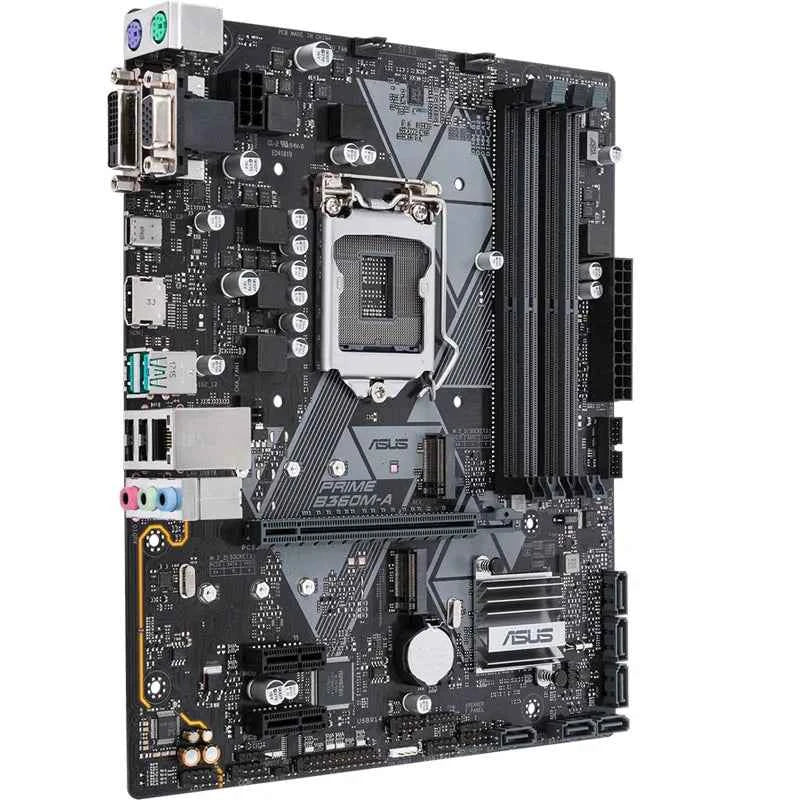

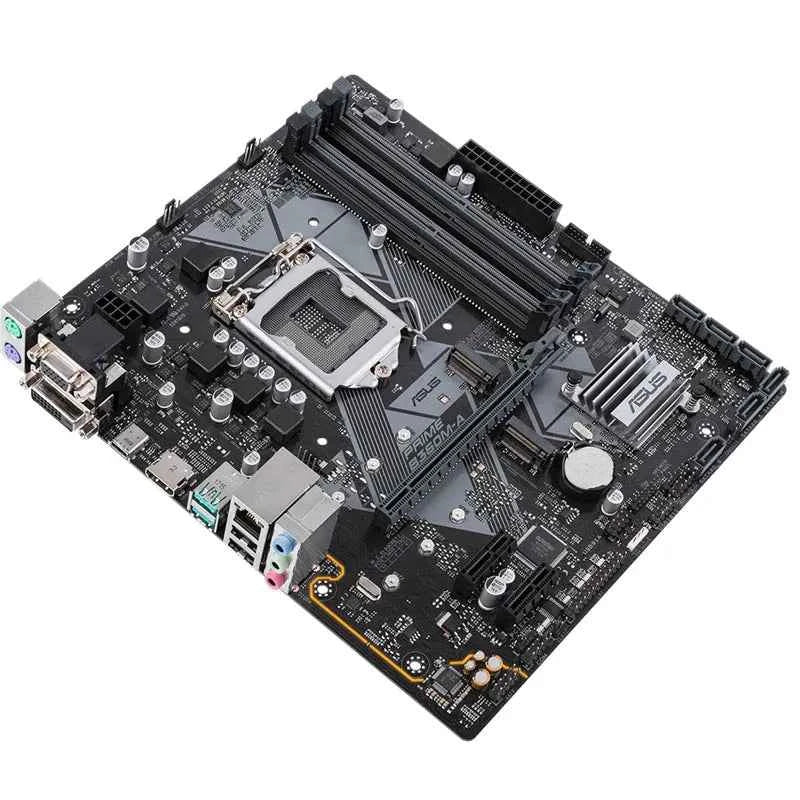

PRIME B360M-A

CPU

Intel Socket 1151 for 8th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors *1

Supports Intel 14 nm CPU

Supports Intel Turbo Boost Technology 2.0

Chipset

Intel B360

Memory

4x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-Buffered Memory *2

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

Graphic

Integrated Graphics Processor - Intel HD Graphics Support

Multi-VGA Output Support: HDMI/DVI-D/RGB Ports

Supports HDMI 1.4b with Max. Resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

Supports DVI with Max. Resolution 1920 x 1200 @ 60 Hz

Supports D-sub with Max. Resolution 1920 x 1200 @ 60 Hz

Maximum Shared Memory of 1024 MB (for iGPU Exclusively)

Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Expansion Slots

1x PCIe 3.0 x16 (x16 Mode)

2x PCIe 3.0/2.0 x1

Storage

1x M.2 Socket 3, , with M Key, Type 2242/2260/2280 Storage Devices Support (SATA & PCIE 3.0 x 4 Mode)

1x M.2 Socket 3, with M Key, Type 2242/2260/2280 Storage Devices Support (PCIE 3.0 x 4 Mode)

6x SATA 6Gb/s Ports, Gray

LAN

Realtek RTL8111H, 1x Gigabit LAN

ASUS LAN Guard

Audio

Realtek ALC887 8-Channel High Definition Audio CODEC *3

Supports: Jack-Detection, Front Panel Jack-Retasking

Audio Feature:

LED-Illuminated Design - Brighten Up Your Build with the Gorgeous Illuminated Audio Trace Path

Audio Shielding: Ensures Precision Analog/Digital Separation and Greatly Reduced Multi-Lateral Interference

Dedicated Audio PCB Layers: Separate Layers for Left and Right Channels to Guard the Quality of the Sensitive Audio Signals

Premium Japanese Audio Capacitors: Provide Warm, Natural and Immersive Sound with Exceptional Clarity and Fidelity

USB Ports

2x USB 3.1 Gen 2 Up to 10Gbps Ports (2 at Back Panel, Teal Blue, Type-A)

3x USB 3.1 Gen 1 Up to 5Gbps Ports (1 at Back Panel, USB Type-C, 2 at Mid-Board)

6x USB 2.0/1.1 Ports (2 at Back Panel, Black, Type-A, 4 at Mid-Board)

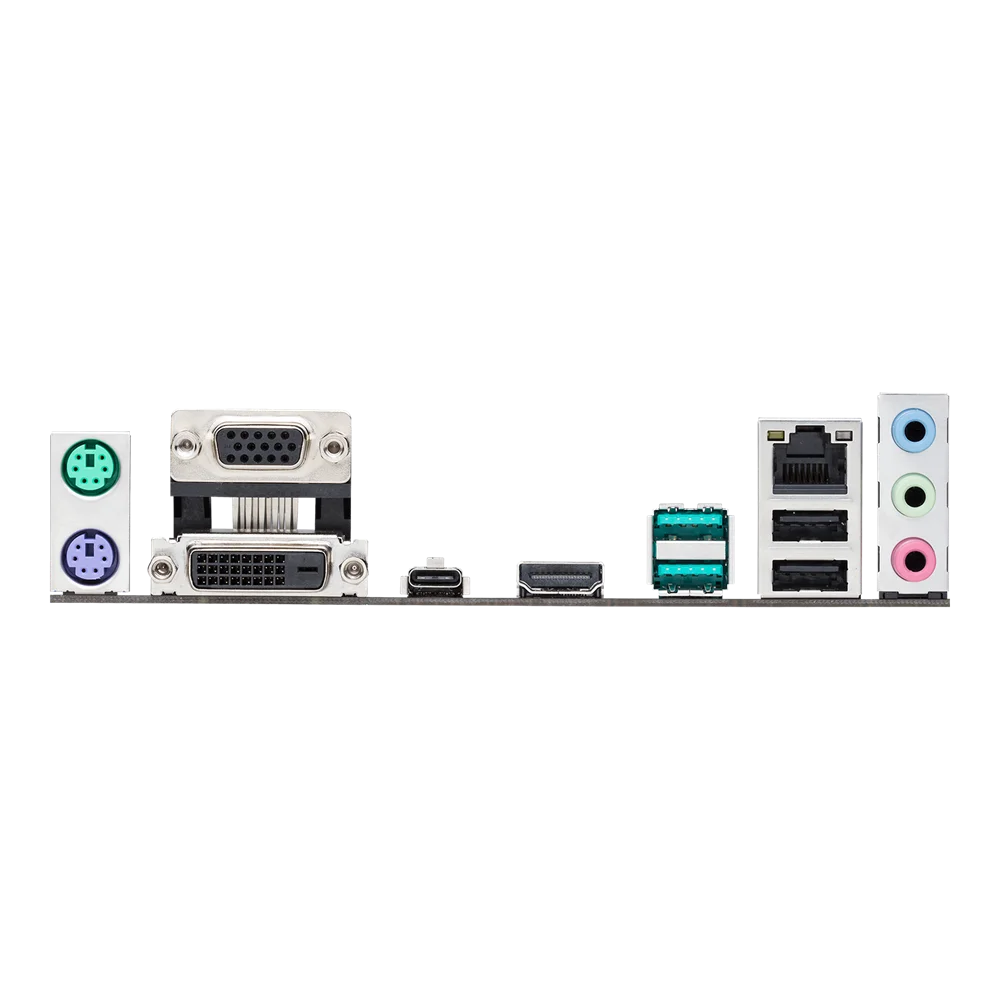

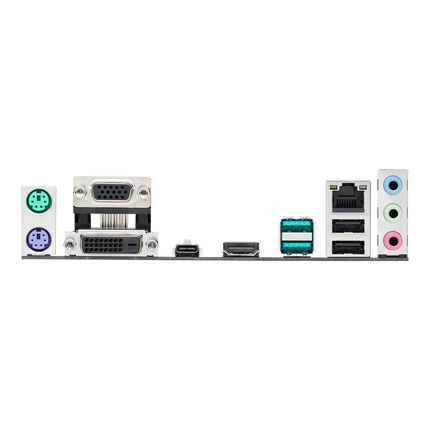

Back I/O Ports

1x PS/2 Keyboard (Purple)

1x PS/2 Mouse (Green)

1x DVI-D

1x D-Sub

1x HDMI

1x LAN (RJ-45) Port

2x USB 3.1 Gen 2 (Teal Blue) Type-A, Up to 10Gbps

1x USB 3.1 Gen 1 USB Type-C, Up to 5Gbps

2x USB 2.0

1x 8-Channel Audio I/O

Internal I/O Ports

1x Aura RGB Strip Header

1x USB 3.1 Gen 1 (Up to 5Gbps) Connector Supports Additional 2 USB 3.1 Gen 1 Ports (19-pin)

2x USB 2.0 Connectors Supports Additional 4 USB 2.0 Ports

2x M.2 Socket 3 for M Key, Type 2242/2260/2280 Devices

1x TPM Header

1x LPT Header

1 x COM port(s) connector(s)

6x SATA 6Gb/s Connectors

1x CPU Fan Connector

2x Chassis Fan Connectors

1x S/PDIF Out Header

1x 24-pin EATX Power Connector

1x 8-pin EATX 12V Power Connector

1x Front Panel Audio Connector (AAFP)

1x Clear CMOS Jumper

1x System Panel Connector

1x Chassis Intrusion Header

1x Speaker Connector

Accessories

User Manual

I/O Shield

2x SATA 6Gb/s Cables

2x M.2 screws

1x Supporting DVD

BIOS

128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-Language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified Log, F4 AURA ON/OFF, F6 Qfan Control, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) Memory Information

Manageability

WOL by PME, PXE

Operating System

Windows 10 64-bit

Form Factor

mATX Form Factor

9.6" x 8.1" (24.4 x 20.6 cm)

Notes

*1 The Intel Turbo Boost Technology 2.0 support depends on the CPU types. Please refer to CPU Support List for more information.

*2 Please refer to Memory Support List for more information. The maximum memory frequency supported varies by processor. DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors.

*3 Choose the chassis with HD audio module in front panel to support 8-channel audio output.
