Quadlock Harness with CANBUS Decoder, BSI Protocol, SWC Retention, 16 Pin P&P Android Adapter for Peugeot 208 2008 308 307 C4 C3

Note: If you are not sure about the harness type for your car, to avoid unnecessary errors when purchasing, please CONTACT US FIRST before placing an order!

Product FeaturesFor reference only, product features may vary across different model years and configurations.)

• Basic functions (ACC 12V, reverse, handbrake, lights)

• Supports original car steering wheel buttons and steering angle information

• Support onboard computer

• Support reversing radar

• Supports BSI protocol

Easy to wire the car radio

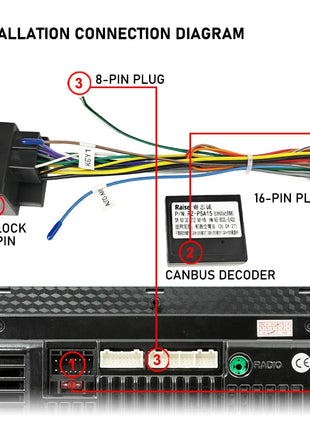

Plug and play. 16 pin to 40 pin Quadlock connector with CAN BUS decoder, supports car reversing radar.

Suitable for aftermarket Android head unit

16 pin plug, for car Android with 16 pin connector

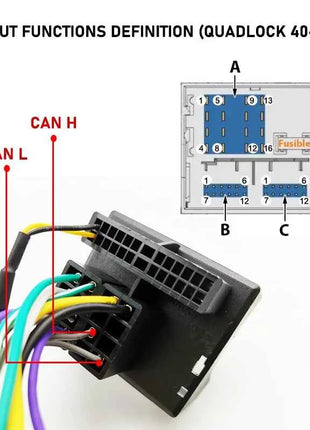

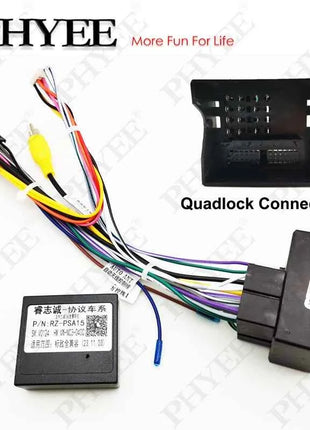

40 pin Quadlock Connector

Specification

* 16 pin to Quadlock harness

* 16 pin connector

* Raise CAN Bus decoder PSA-RZ15

* Support reversing radar

* 40 pin Quadlock female connector

* For car Android with 16 pin socket

* Copper wire cable

* FAKRA male car antenna cable(Optional)

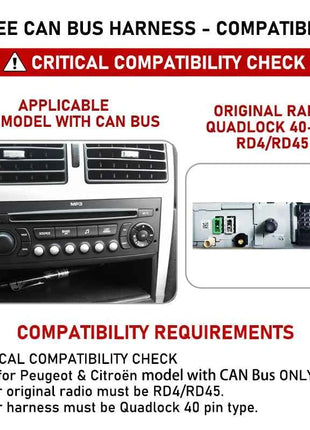

Suitable for the following car models with Quadlock connector (2010 and later than 2010)

for Peugeot 208 (2012 - 2020)

for Peugeot 2008 (2012 - 2020)

for Peugeot 207CC (2011)

for Peugeot 301 (2014 - 2018)

for Peugeot 307 (2014 - 2015)

for Peugeot 308 (2012 - 2018)

for Peugeot 308S (2015 - 2018)

for Peugeot 3008 (2013-2019)

for Peugeot 408 (2014 - 2019)

for Peugeot 4008 (2016 - 2019)

for Peugeot 508 (2011-2016)

for Peugeot 5008 (2017 - 2019)

for Citroen C3 (2009-2017)

for Citroen C4 (2009-2017)

for Citroen C4L (2010-2018)

for Citroen C5 (2010-2016)

for Citroen Jumpy (2013)

for Citroen Berlingo (2010-2016)

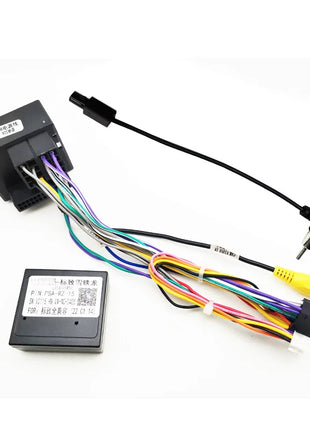

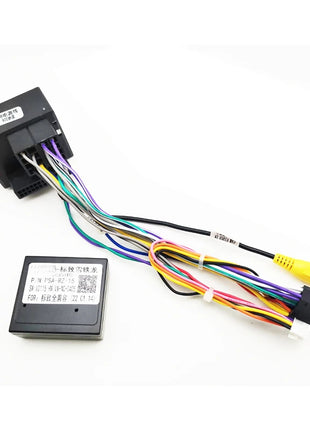

Packing List

16 pin to Quadlock harness * 1 piece

Raise CAN Bus decoder PSA-RZ15 * 1 piece

FAKRA male car antenna cable * 1 piece(Optional)

FAQ

1) What is the brand of the CAN Bus decoder?

The CAN Bus decoder is from the Raise brand.

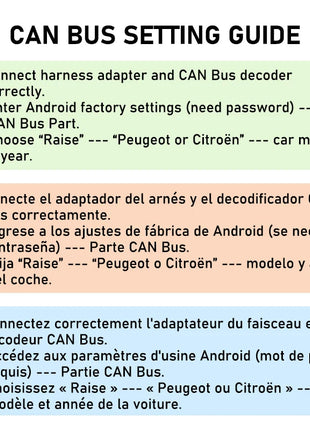

2) How to configure the CAN BUS part in the Android head unit?

Please go to the settings section to select the CAN BUS part as Raise --- Peugeot / Citroën --- car model.

3) Is it suitable for all car Androids?

If the car Android socket is 16 pin type, the harness adapter is suitable.

4) Does the harness adapter support the steering wheel control function?

Yes, the CAN Bus decoder supports the steering wheel control function.
